Description

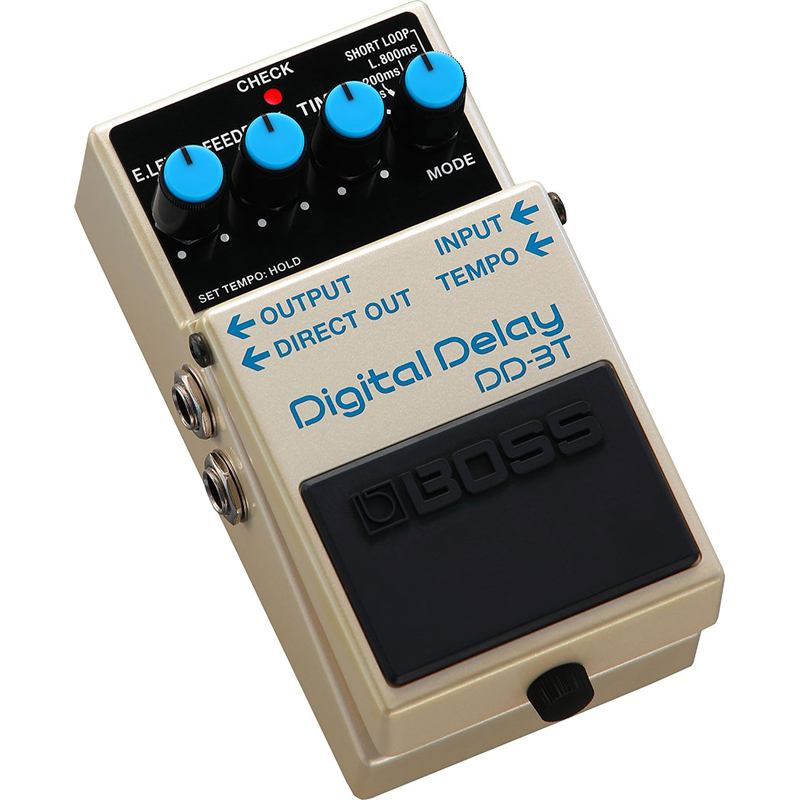

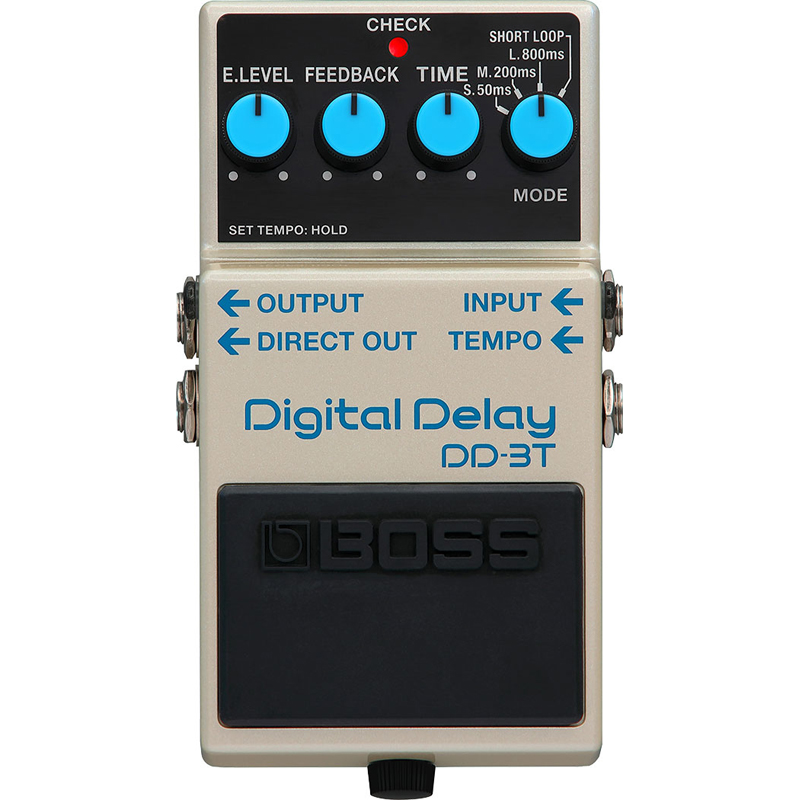

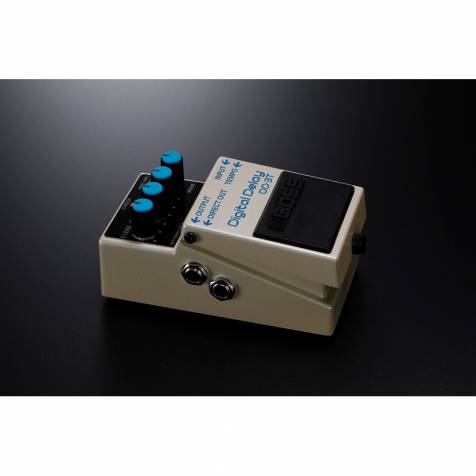

DD-3T
THE ICONIC DIGITAL DELAY, ENHANCED FOR MODERN PLAYERS
BOSS’s iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we’ve updated the classic stomp with enhanced functionality while fully retaining the original’s sound and control layout. It’s now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.
A Classic Through and Through
In continuous production for over three decades, the DD-3 has been the go-to delay stomp for countless players. Based on the DD-2-the world’s first digital delay pedal from 1983-the DD-3 is revered for its warm, round delay tone and simple controls that let you dial in sounds fast. The DD-3T’s sound circuitry and controls are identical to the DD-3, delivering every drop of that classic vibe you know and love.
Tap Tempo On Board
A key addition the DD-3T brings is tap tempo, an essential feature for creating the rhythmic delay effects at the heart of many guitar styles. In delay mode, hold the pedal switch for two seconds to toggle between bypass and tap operation. And for on-demand tap control, simply connect an external footswitch. When the DD-3T receives tap input, up to 800 ms of delay time is available, and the Mode knob sets the tap subdivision (quarter-note triplet, dotted-eighth note, or quarter note).
Direct Out for Wet/Dry Setups
The DD-3T features a direct output jack like the DD-3, but it’s been moved next to the main output jack to make connections easier. Plugging a cable into the direct out converts the main out to delay only, allowing you to send wet and dry signals to different amps for wide, immersive sounds. And if your amp or switcher has a parallel effects loop, just connect a dummy plug to the direct out to mute the dry sound for effect-only blending.
Hold That Loop
The original DD-3 (and DD-2 before) included a forward-thinking Hold function, which allowed you to capture a sound up to 800 ms long, play it continuously, and jam over the top. Many years later, BOSS further developed this creative concept with the successful Loop Station products, which helped spawn the new musical style of live looping. The DD-3T includes the same Hold function as the DD-3, but it’s been renamed “Short Loop” to reflect today’s common usage.
| SPECIFICATIONS | |
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | MODE knob TIME knob FEEDBACK knob E.LEVEL(Effect Level) knob Pedal switch |
| Indicator | CHECK indicator (Serves also as battery check indicator) |
| Connectors | INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DIRECT OUT jack: 1/4-inch phone type TEMPO jack: 1/4-inch phone type DC IN jack |
| Power Supply | Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) |
| Current Draw | 45 mA |
| Expected battery life under continuous use |
Alkaline: Approx. 11.5 hours Carbon: Approx. 3 hours |
| Accessories | Owner’s manual Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”) Alkaline battery (9V, 6LR61) |
| Options (sold separately) | AC adaptor: PSA series Footswitch: FS-5U, FS-6, FS-7 |
| SIZE AND WEIGHT | |
| Width | 73 mm 2-7/8 inches |
| Depth | 129 mm 5-1/8 inches |
| Height | 59 mm 2-3/8 inches |
| Weight (including battery) |
450 g 15 oz |
