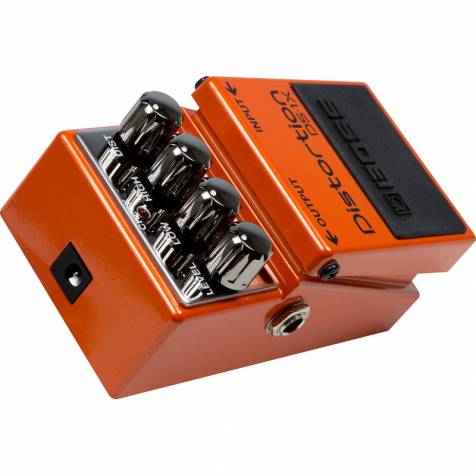

DS-1X
SPECIAL EDITION BOSS PEDAL WITH PREMIUM TONE
The DS-1X launches the famous BOSS distortion into a modern era of expression, delivering an unmatched level of performance for guitarists with an ear for tone. This next-generation stomp combines over 35 years of innovation in pedal design with the most advanced technologies, bringing you a completely new tonal experience that’s only possible with the legendary expertise of BOSS. Prepare to be amazed-the inspiring and ultra-responsive DS-1X will change your thinking about distortion pedals forever.
Plug Into the Future of Distortion
The DS-1X completely redefines the distortion stomp, kicking it into a new universe of dynamic response and clarity. Powered by BOSS’ MDP technology, this amazing pedal delivers distortion that sounds perfect no matter where you play on the neck, even at the highest gain settings. You’ll enjoy tight response on the low strings and fat, singing tones on the highest notes, plus exceptional definition when playing two or more notes at a time. At every setting, the sound is never muddy or boomy, while the smooth, natural presence ensures that you always cut through without harshness or nasal overtones. With the DS-1X, your distortion tone feels and sounds “dialed in” the instant you turn it on, providing a rich, satisfying playing experience that’s both effortless and inspiring.
| SPECIFICATIONS | |
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Controls | Pedal switch LEVEL knob LOW knob HIGH knob DIST knob |
| Indicator | CHECK indicator (Serves also as battery check indicator) |
| Connectors | INPUT jack OUTPUT jack AC adaptor jack (DC 9 V) |
| Power Supply | Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22) AC adaptor (sold separately) |
| Current Draw | 45 mA |
| Expected battery life under continuous use |
Alkaline: Approx. 32 hours Carbon: Approx. 18 hours |
| Accessories | Owner’s manual Leaflet (“USING THE UNIT SAFELY,”IMPORTANT NOTES,” and “Information”) Alkaline battery (9V, 6LR61) |
| Options (sold separately) | AC adaptor: PSA series |
| SIZE AND WEIGHT | |
| Width | 73 mm 2-7/8 inches |
| Depth | 129 mm 5-1/8 inches |
| Height | 59 mm 2-3/8 inches |
| Weight | 450 g 1 lb |
