Description

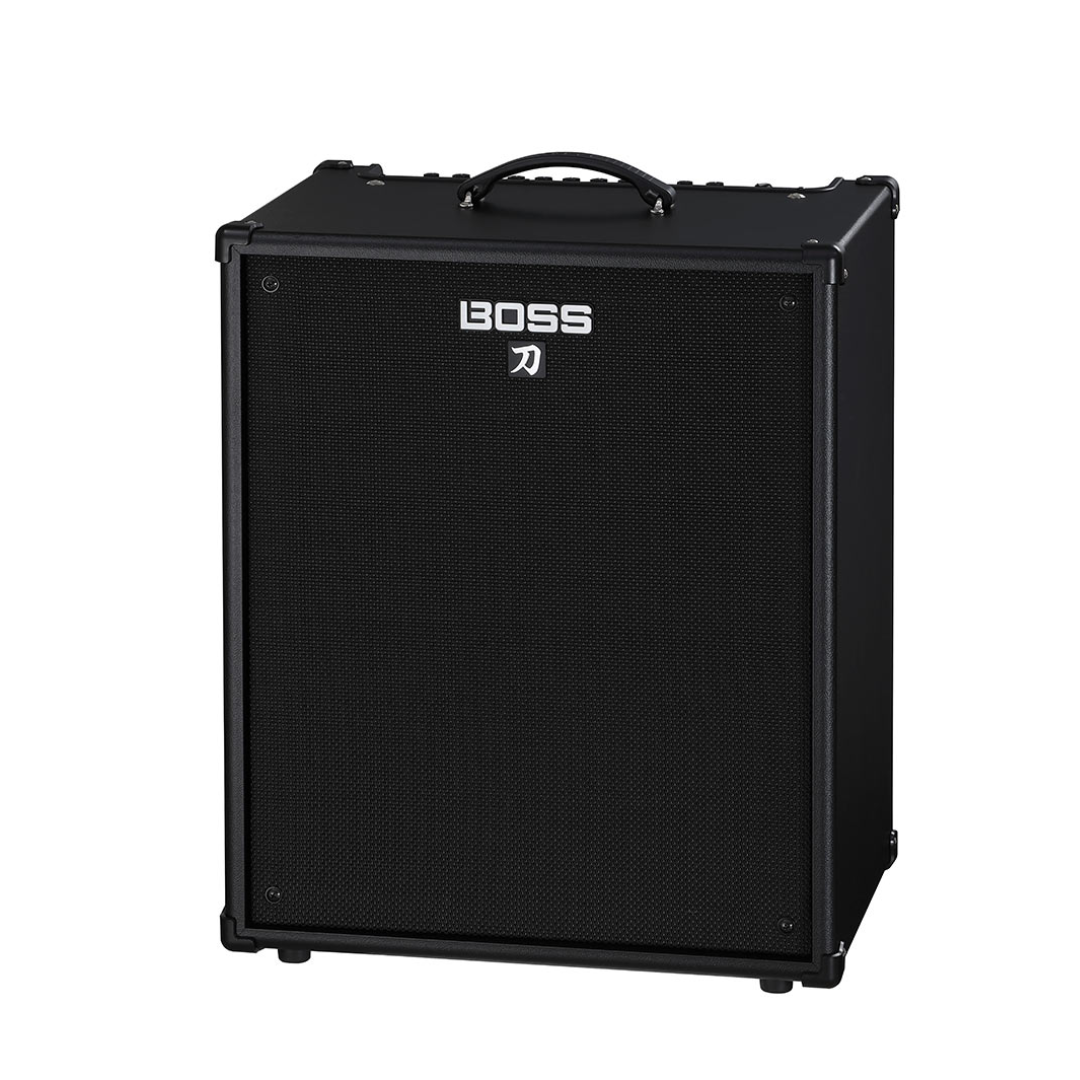

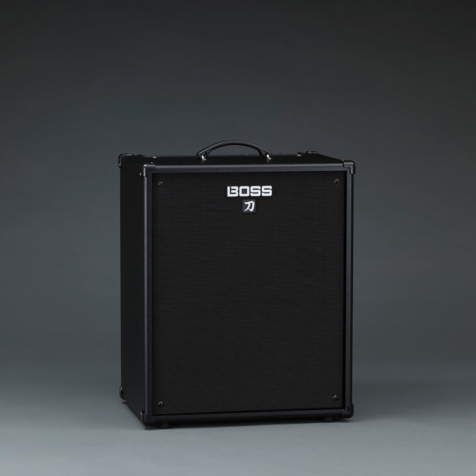

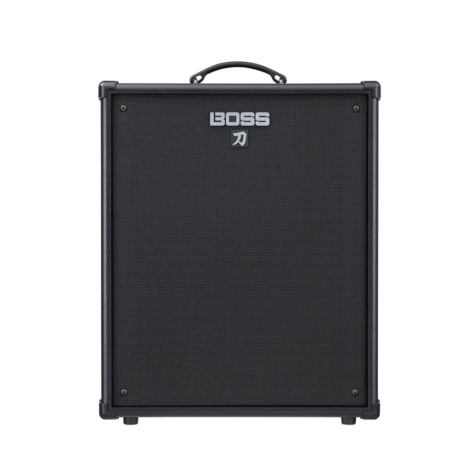

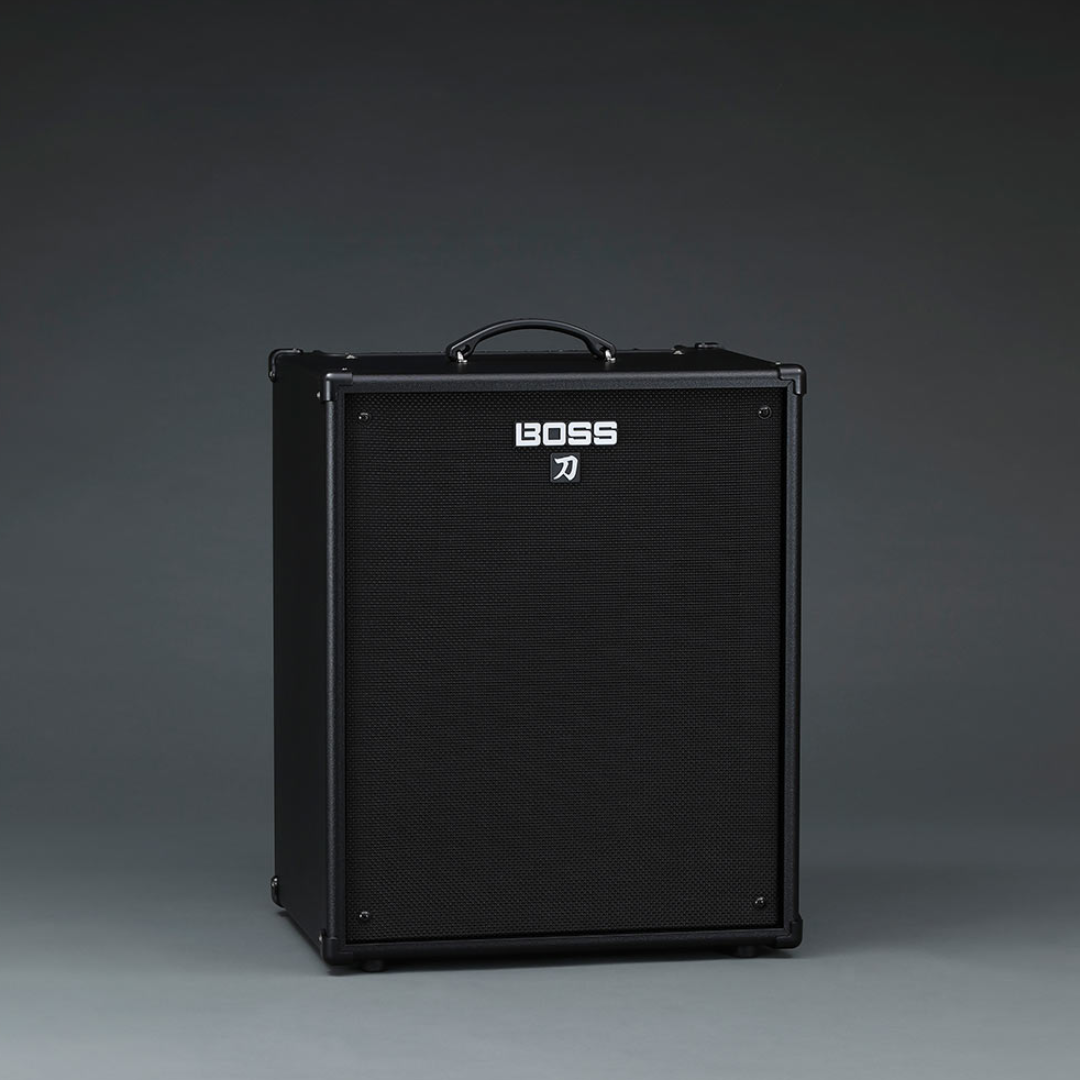

Crafted with the breakthrough design philosophy behind the acclaimed Katana guitar amp series, the Katana-210 Bass delivers premium sound and advanced features perfectly tuned for the needs of serious bassists. Three unique amp characters and onboard BOSS effects provide a wide range of tones, delivered with 300 watts of assertive class AB stage power and a high-performance speaker system based around two 10-inch woofers. And with comprehensive EQ, flexible connectivity, and more, the Katana-210 Bass is ready to take on any playing situation, from stage to studio to everyday practice at home.
- SPECIFICATIONS
- Output Power
- 160 W Continuous (RMS)
300 W Peak - Nominal Input Level
- INPUT: -10 dBu (1 M ohm)
POWER AMP IN: -10 dBu (20 k ohms)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm) - Speaker
- WOOFER: 25 cm (10 inches) x 2
TWEETER: x 1 - Controls

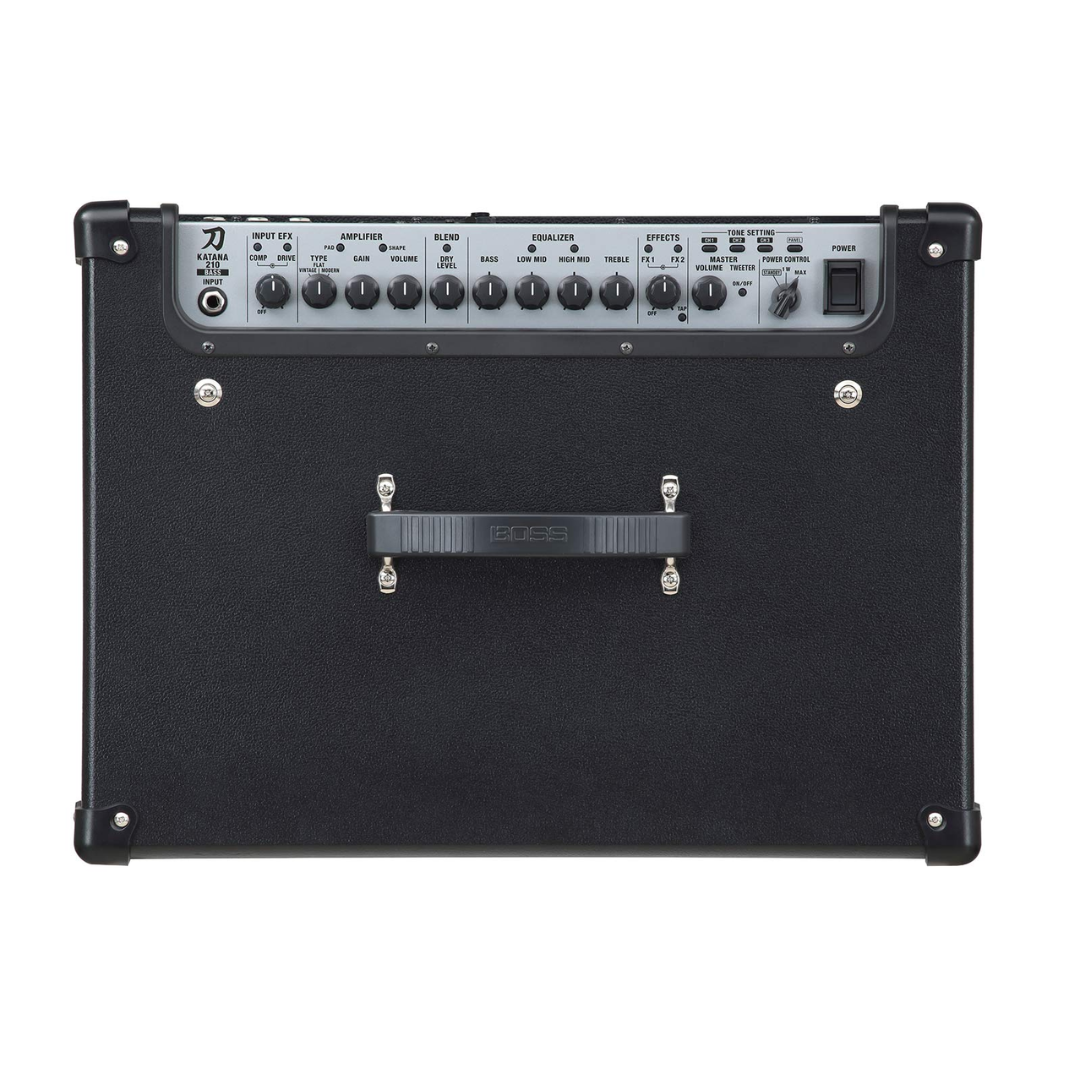

- POWER switch
MASTER VOLUME knob
POWER CONTROL switch (STANDBY, 1 W, MAX)
TWEETER button[INPUT EFX]
COMP button
DRIVE button
COMP knob
DRIVE knob[AMPLIFIER]
PAD button
SHAPE button
TYPE knob (VINTAGE, FLAT, MODERN)
GAIN knob
VOLUME knob[BLEND]
BLEND button
DRY LEVEL knob[EQUALIZER]
LOW MID button
HIGH MID button
BASS knob
LOW MID knob
HIGH MID knob
TREBLE knob[EFFECTS]
FX1 button
FX2 button
TAP button
FX1 knob
FX2 knob[TONE SETTING]
CH1 button
CH2 button
CH3 button
PANEL button[BALANCED OUT]
GND LIFT switch (OFF, ON)
SELECT (POST, PRE, DIRECT) - Indicators
- COMP
DRIVE
PAD
SHAPE
BLEND
LOW MID
HIGH MID
FX1
FX2
TAP
CH1
CH2
CH3
PANEL

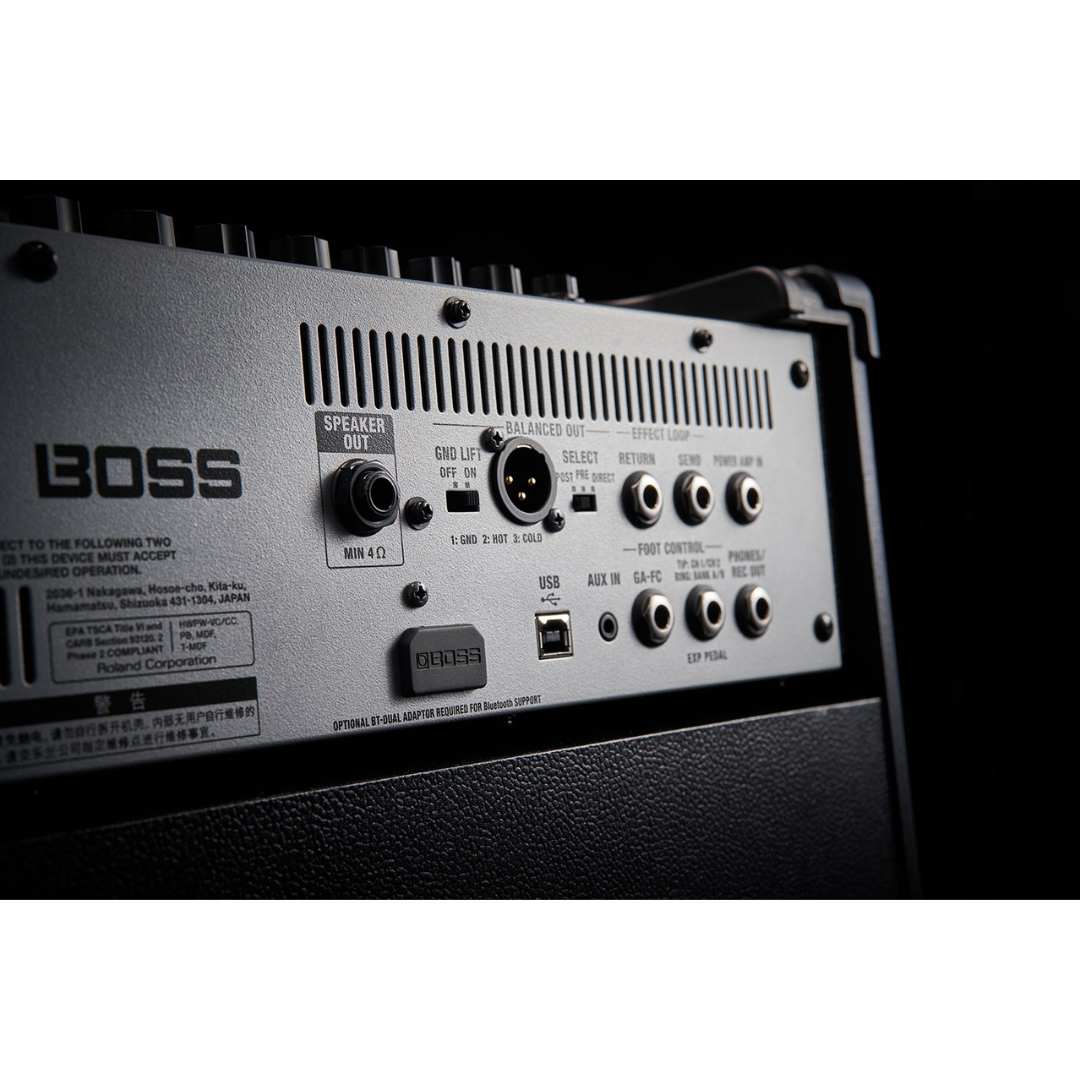

TWEETER - Connectors
- INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
BALANCED OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
SPEAKER OUT 4 ohms jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: BluetoothⓇ Audio MIDI Dual Adaptor
AC IN jack - Power Consumption
- 117 W
- Accessories/
- Owner’s manual
Power cord
GA-FC sticker - Options (sold separately)
- Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)
BluetoothⓇ Audio MIDI Dual Adaptor (Model BT-DUAL) - SIZE AND WEIGHT
- Width
- 490 mm
19-5/16 inches - Depth
- 360 mm
14-3/16 inches - Height
- 620 mm
24-7/16 inches - Weight
- 21.8 kg
48 lbs 1 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
