Description
SPECIAL EDITION BOSS PEDAL WITH PREMIUM TONE

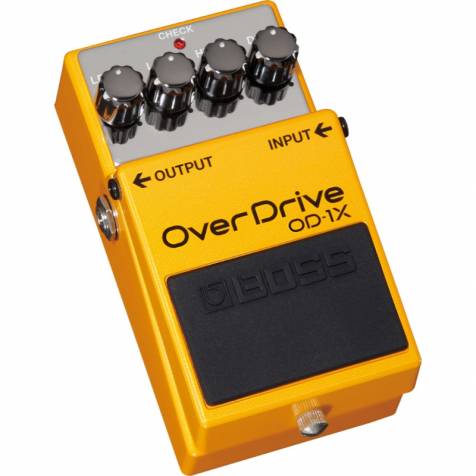

The OD-1X launches the famous BOSS overdrive into a modern era of expression, delivering an unmatched level of performance for guitarists with an ear for tone. This next-generation stomp combines over 35 years of innovation in pedal design with the most advanced technologies, bringing you a completely new tonal experience that’s only possible with the legendary expertise of BOSS. Prepare to be amazed—the inspiring and ultra-responsive OD-1X will change your thinking about overdrive pedals forever.
Plug Into the Ultimate Overdrive Experience
The OD-1X delivers overdrive unlike any pedal ever made, with an all-new dimension of sound quality, clarity, and tonal range. Thanks to BOSS’ magical MDP technology, every note on the fretboard sounds flawless, with fat tones when riffing leads and a smooth, transparent grind when playing chords. At every setting, you’re welcomed with wide-range sounds and a complex, refined presence that’s both cutting and smooth. The sound character and overdrive amount naturally follow your picking dynamics, putting a world of subtle tonal changes under your fingers. When playing through the OD-1X, the tone is so big, bold, and responsive that you’ll soon forget you’re plugged into a compact overdrive pedal.
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Controls
- Pedal switch
LEVEL knob
LOW knob
HIGH knob
DRIVE knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
OUTPUT jack
AC adaptor jack (DC 9 V) - Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately) - Current Draw
- 45 mA
- Expected battery life under continuous use
- Alkaline: Approx. 9 hours
Carbon: Approx. 2.5 hours* These figures will vary depending on the actual conditions of use. - Accessories
- Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)
Alkaline battery (9V, 6LR61) - Option (sold separately)
- AC adaptor (PSA series)
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight
- 450 g
1 lbs. - * 0 dBu = 0.775 Vrms
