Description
Modern Phasing with Tap Tempo Sync

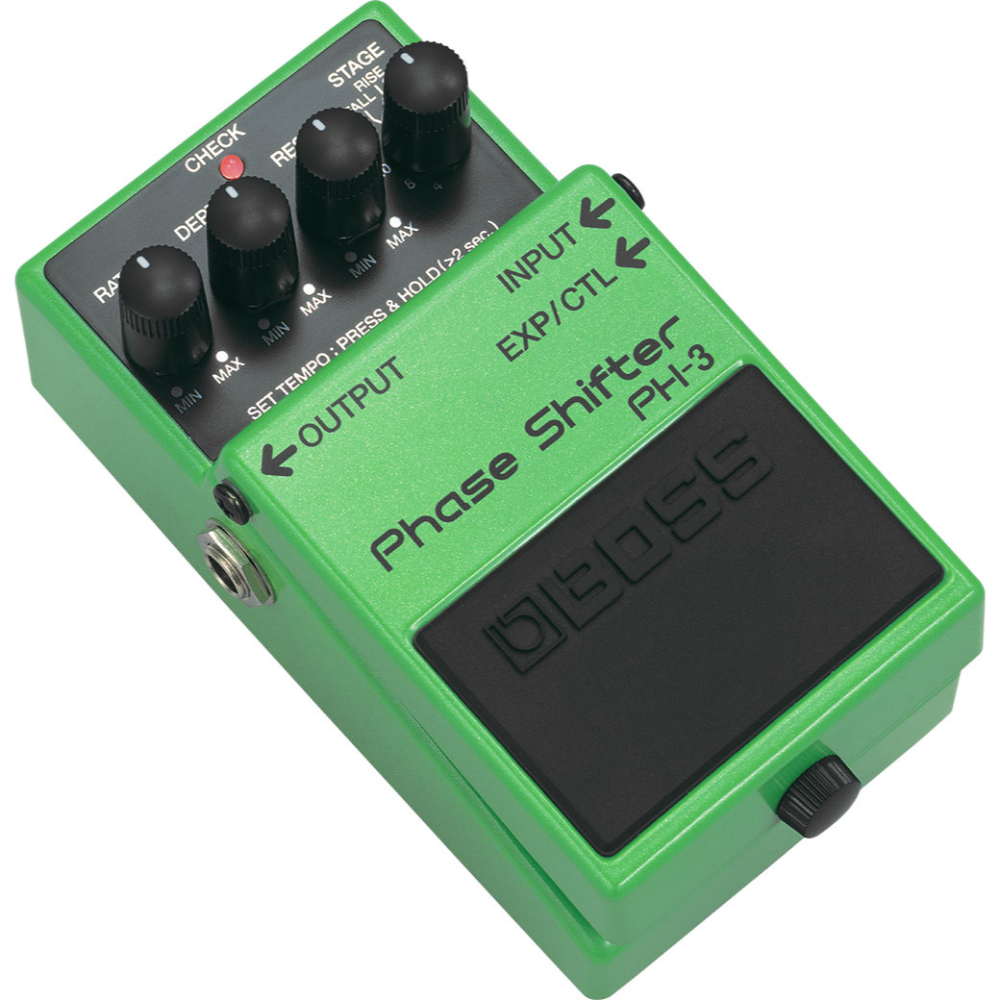

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3’s Rate, Filter and Tempo.
Rise and Fall Effects
In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. Theres also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.
Total Control
Syncing the PH-3s phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play.
Specifications:
Nominal Input Level:
- -20 dBu
Input Impedance:
- 1 M ohm
Nominal Output Level:
- -20 dBu
Output Impedance:
- 1 k ohms
Recommended Load Impedance:
- 10 k ohms or greater
Bypass:
- Buffered bypass
Controls:
- STAGE switch
- RES(Resonance) knob
- DEPTH knob
- RATE knob
- Pedal switch
Indicator:
- CHECK indicator (Used for indication of check battery)
Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- EXP/CTL jack: 1/4-inch stereo phone type
- DC IN jack
Power Supply:
- Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
- AC adaptor (PSA series: sold separately)
Current Draw:
- 40 mA
Expected battery life under continuous use:
- Carbon: Approx. 2 hours
- Alkaline: Approx. 10 hours
- *These figures will vary depending on the actual conditions of use.
Accessories:
- Owner’s manual
- Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
- Carbon-zinc battery (9 V, 6F22)
Options (sold separately):
- AC adaptor: PSA series
- Expression pedal: Roland EV-5/BOSS EV-30, FV-500L, FV-500H
- Footswitch(momentary-type): BOSS FS-5U
Width:
- 73 mm (2-7/8 inches)
Depth:
- 129 mm (5-1/8 inches)
Height:
- 59 mm (2-3/8 inches)
Weight (including battery):
- 420 g (15 oz)
