Description

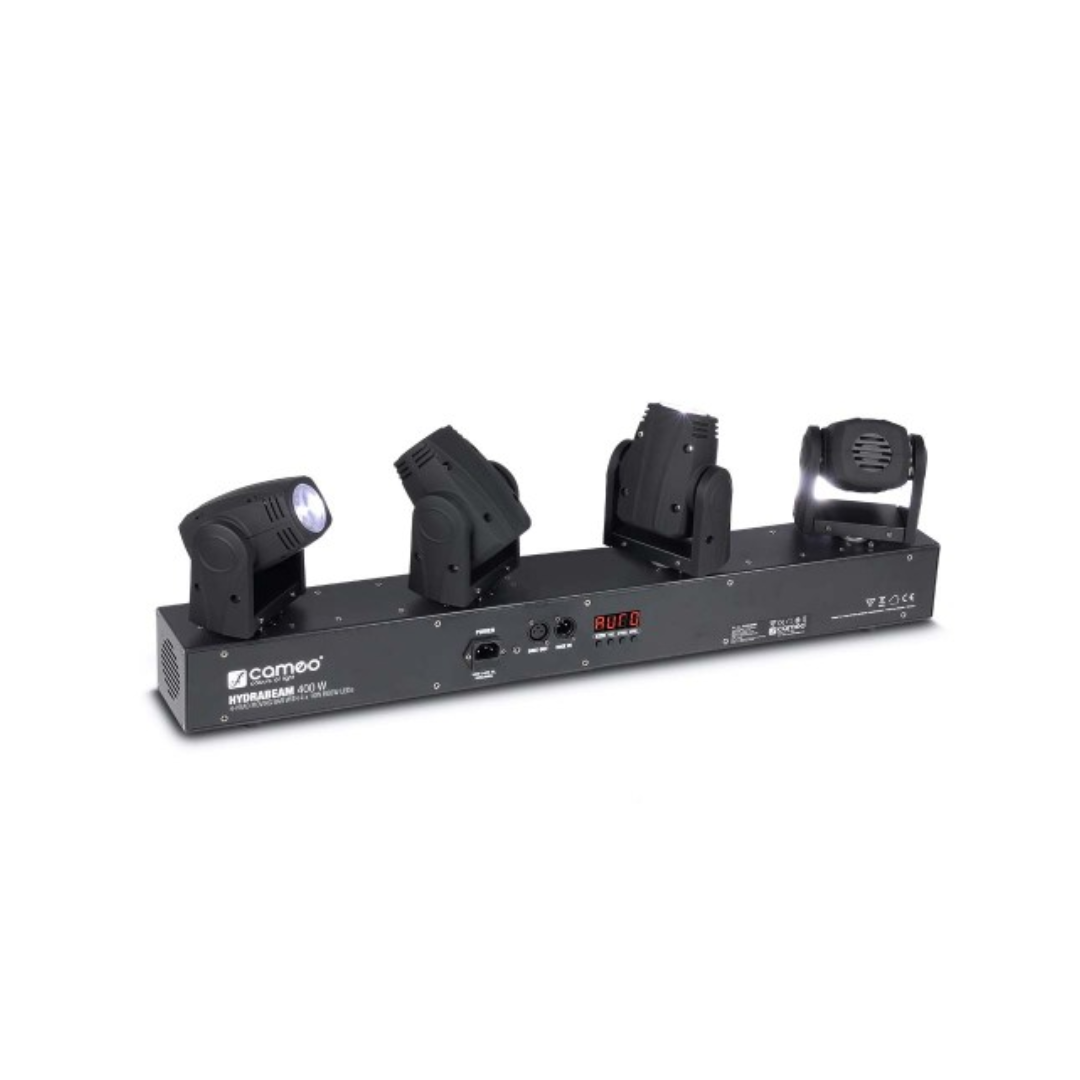

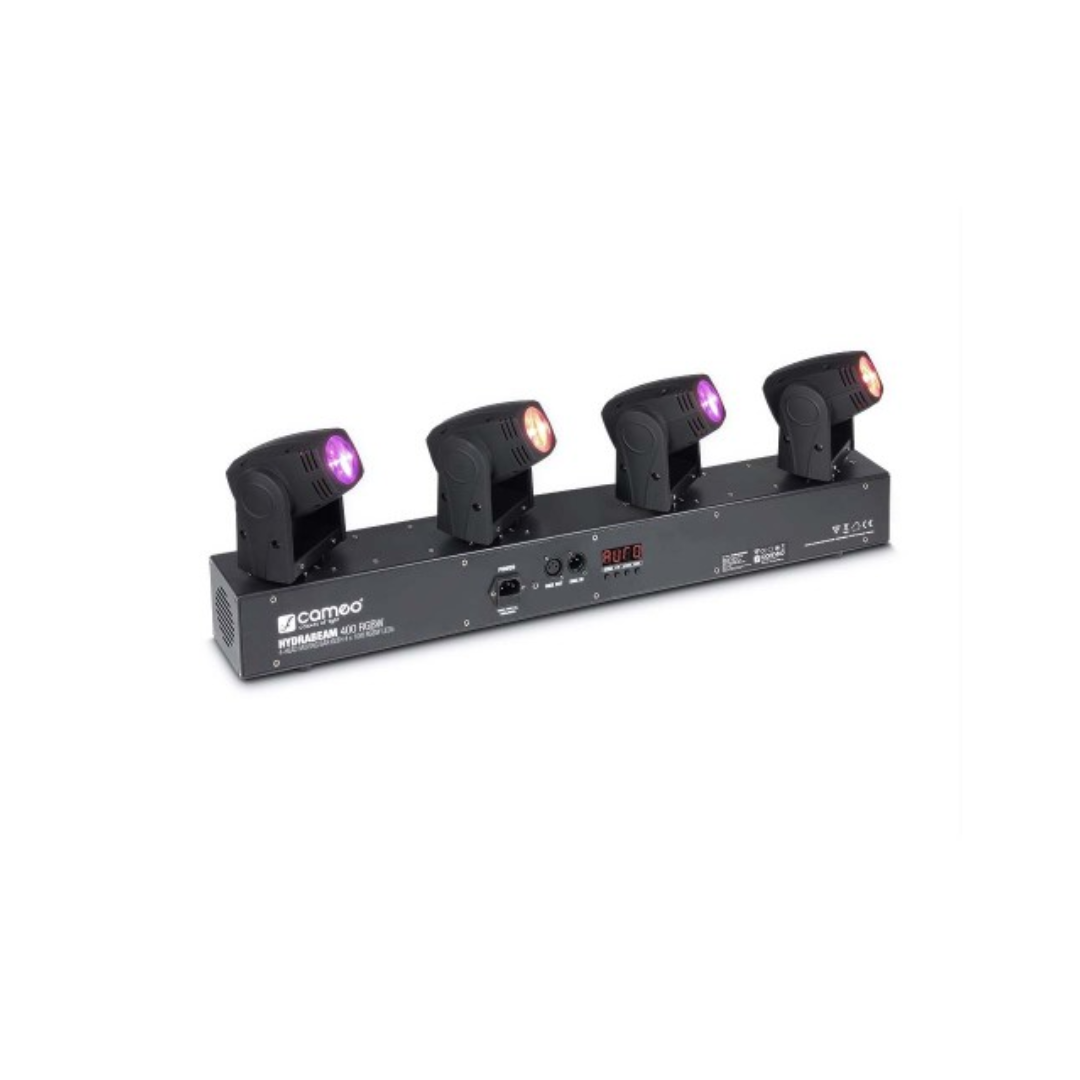

The Cameo HydraBeam 400 RGBW is a light system with 4 ultra-fast moving heads that can be controlled independently. They are equipped with high-intensity, 10 W Quad LEDs made by the leading manufacturer Cree to provide a narrow 4.5° beam angle. The moving heads swivel by up to 540° horizontally and by up to 270° vertically, and are cooled by an extremely low-noise fan.
The HydraBeam 400 can be operated in 6-channel, 10-channel, 19-channel and 32-channel DMX modes, or by means of external sound sources, and it can be used as a master, slave or standalone unit. 16 automated programmes provide lively movement patterns, while the strobe function produces up to 20 flashes per second. In addition, six intensive colour variations can be selected via DMX.

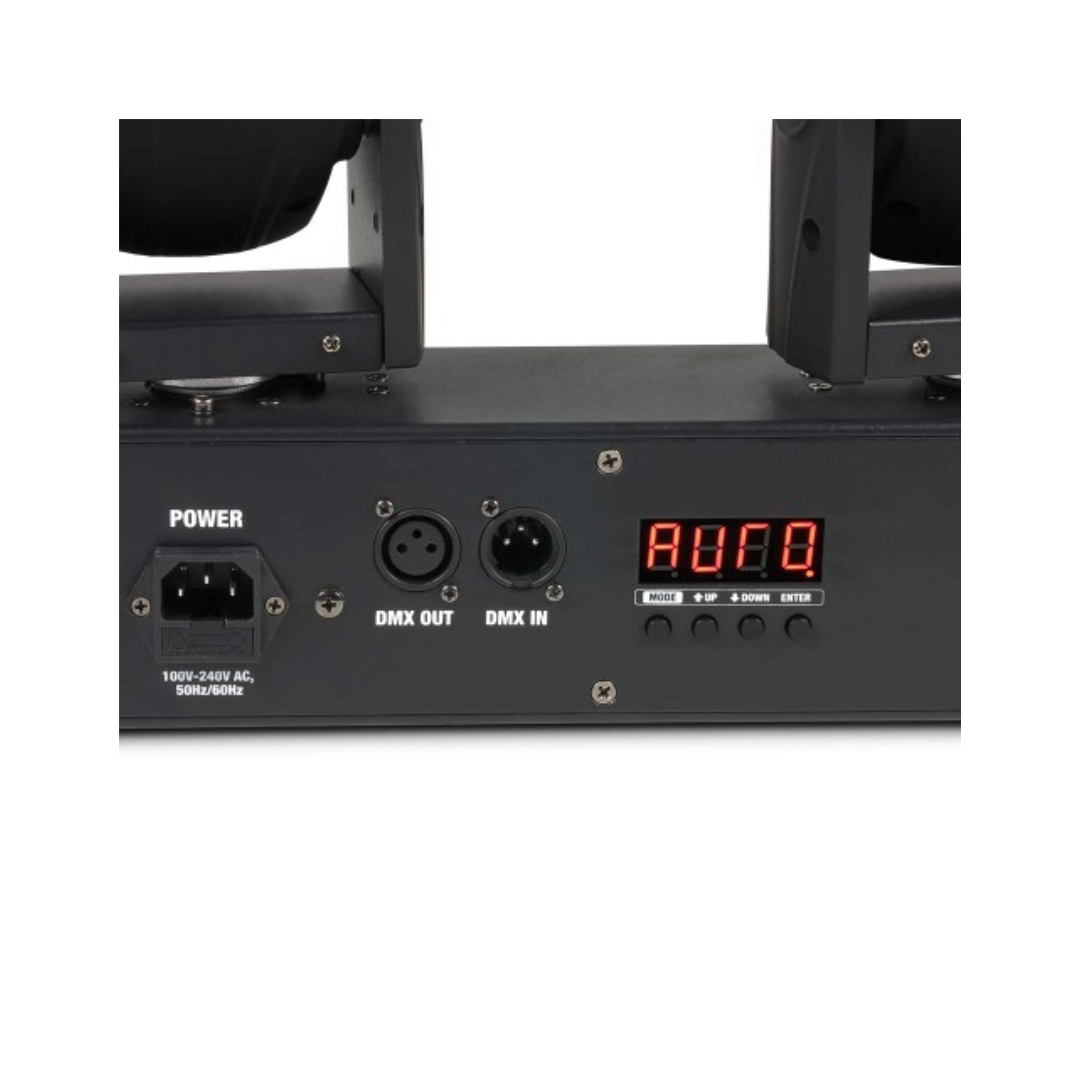

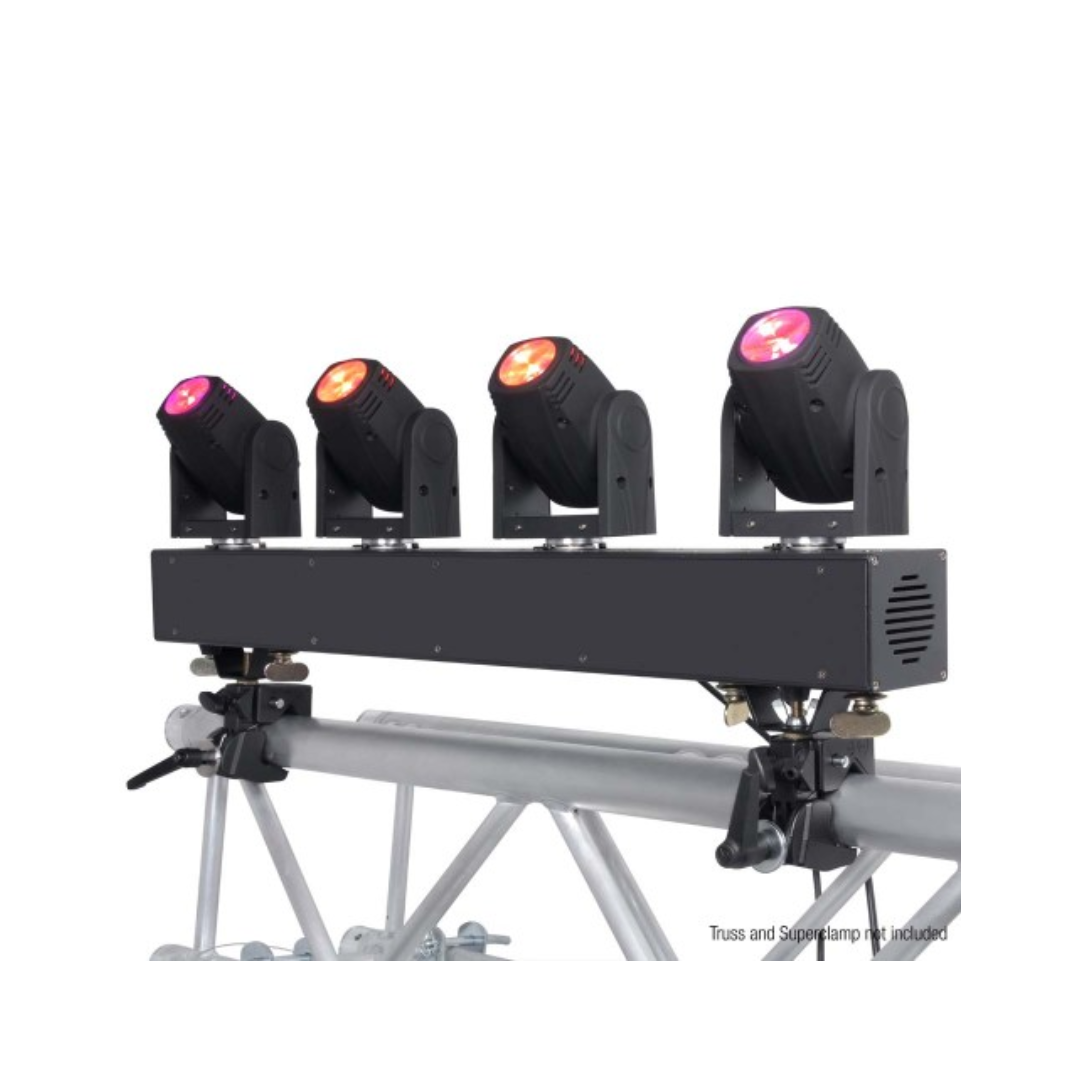

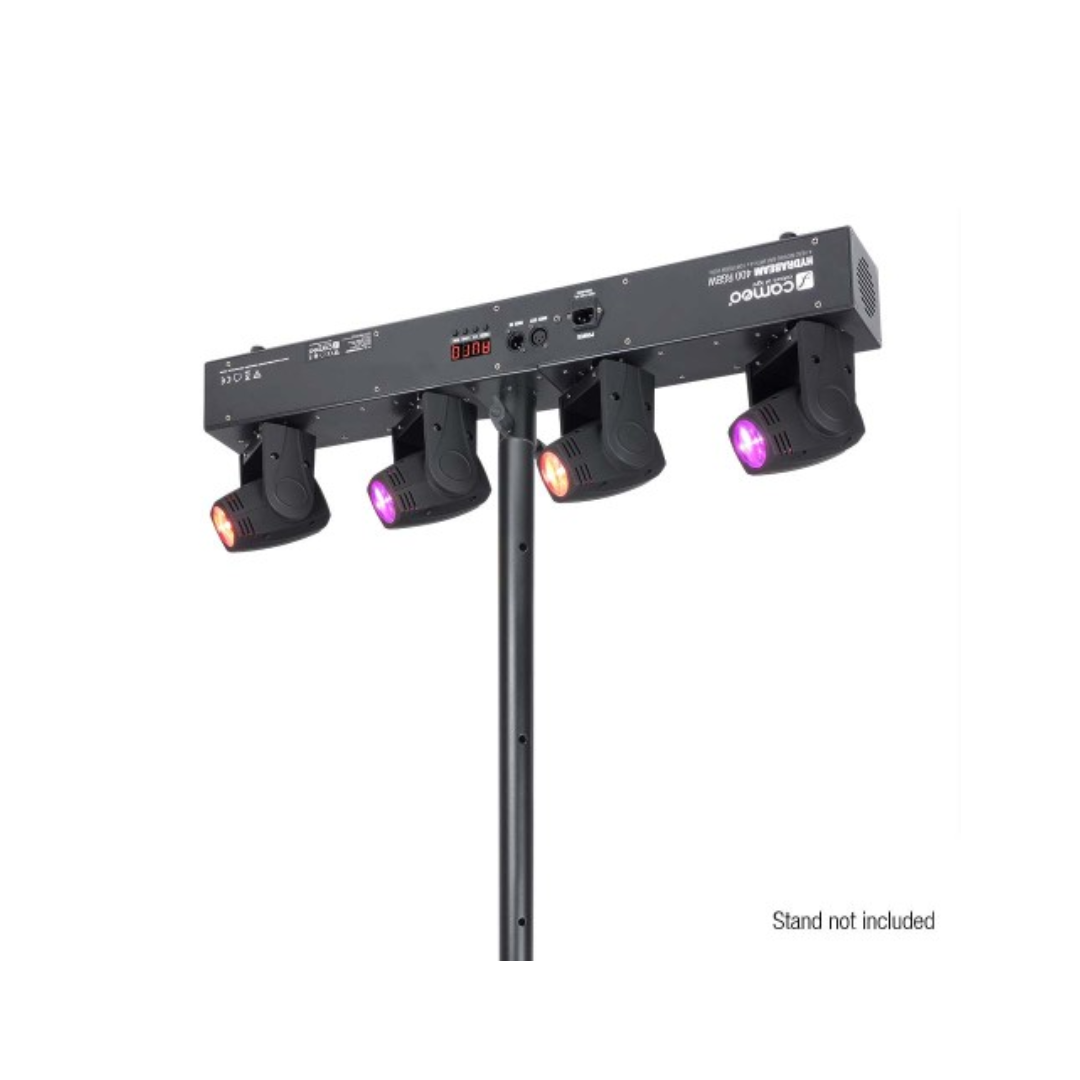

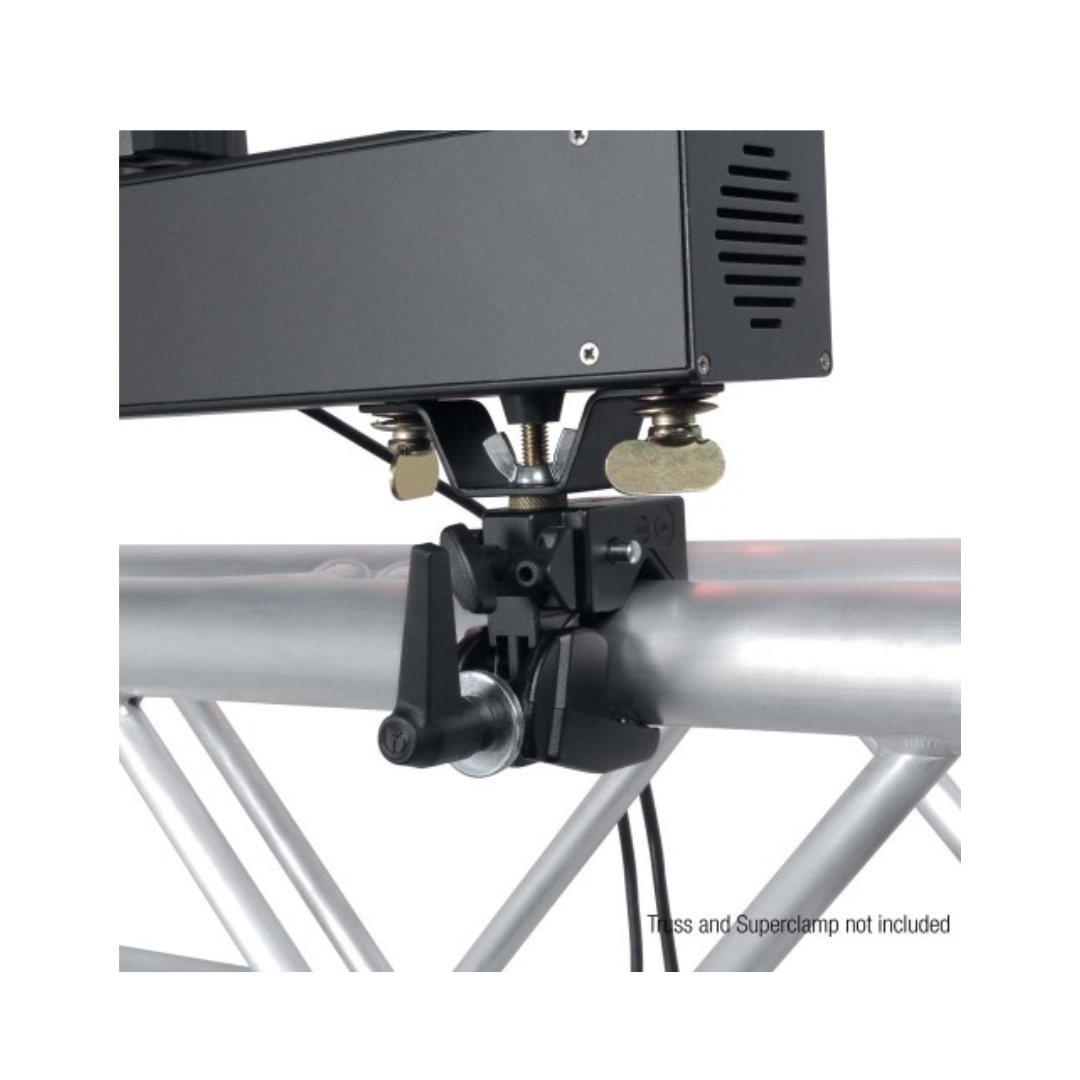

The rugged construction made of black steel and ABS features a backlit display with four buttons for easy operation. The Cameo HydraBeam 400 can be operated universally with mains voltages from 100 to 240 volts; the power consumption is a low 100 watts. For a large variety of mounting options, for example on trusses, two Omega brackets and a removable tripod flange are included.
| Product type | LED Moving Lights |
| Type | LED Moving Effects |
| Colour spectrum | RGBW |
| Number of LEDs | 4 |
| LED type | 10 W Cree |
| Dispersion | 4.5 ° |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 10-channel, 19-channel, 32-channel, 6-channel |
| DMX Functions | colour change, Dimmer, PAN, Strobe, TILT |
| PAN movement | 540 |
| TILT movement | 270 |
| High Speed Strobe | 20 Hz |
| Standalone modes | Auto run, sound control |
| Controls | Enter, Mode, Value Down, Value Up |
| Indicators | LED Display |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption | 100 W |
| Fuse | F3AL / 250 V |
| Power connector | IEC power connector male |
| Housing material | ABS plastic, Metal |
| Cabinet colour | Black |
| Cooling | low-noise fan |
| Illuminance | blue 3,710lx @ 1m, green 19,000lx @ 1m, red 10,670lx @ 1m, white 27,600lx @ 1m |
| Width | 810 mm |
| Height | 250 mm |
| Depth | 130 mm |
| Weight | 7,5 kg |
