Description

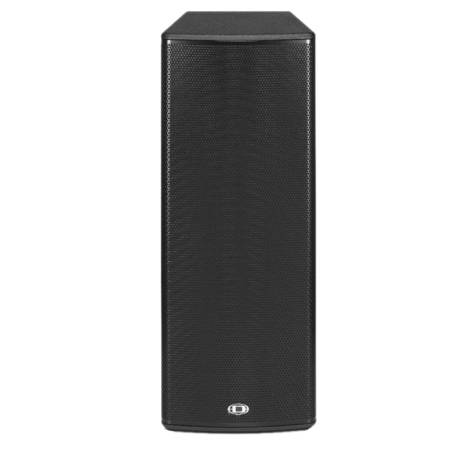

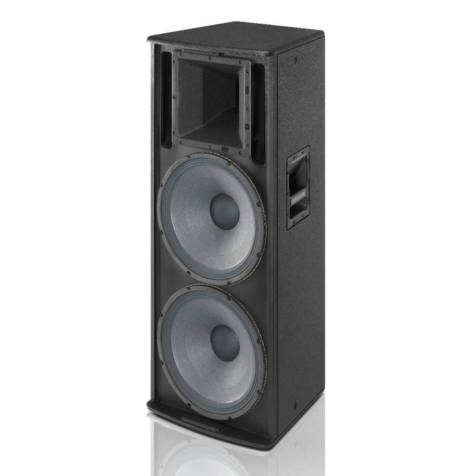

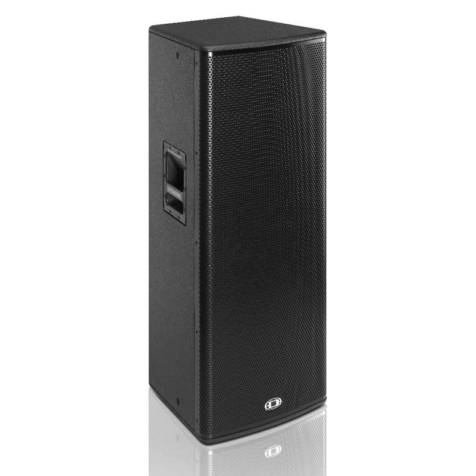

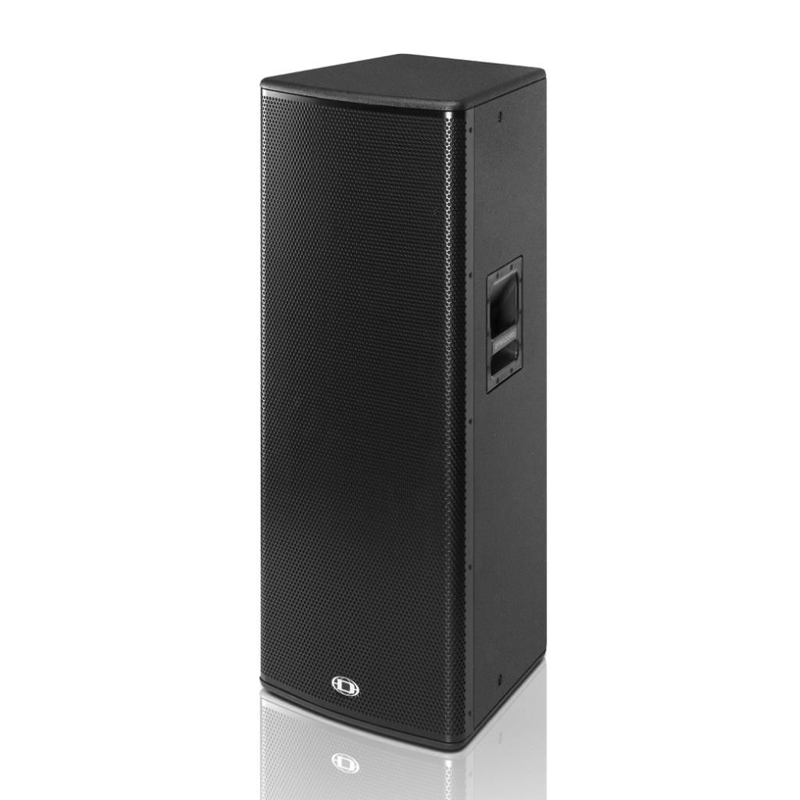

If very high sound pressure levels are required from a compact format, the trapezoidal C 25.2 double 15″ two-way full-range cabinet is the ideal choice, with its very high power handling (1000W continuous / 4000W peak) and sensitivity of 103 dB 1W / 1m. Boasting a maximum SPL of 139 dB, it is capable-even in full-range operation-of providing coverage for larger rooms and events. In the low frequency range, two SMX 2151 woofers are used, whilst in the high frequency range, an ND2-8 neodymium compression driver in a rotatable 60° x 40° constant directivity horn covers the frequencies above 1750 Hz. The crossover is implemented using a sixth order filter with a very steep roll-off. Flying points for eybolts allow the cabinet to be suspended either vertically or horizontally. As the ideal companion for a very powerful active two-way system, the double 18″ subwoofer Sub 2.18 is recommended together with the DSP 260 or DSP 600 controllers and power amplifers from the SL or LX series. Suitable presets for both controllers are available, as well as a FIR-TUNE preset for the DSP 600.
| SPECIFICATIONS | |
|---|---|
| Order No. | F01U165093 |
| Cabinet | Fullrange |
| Configuration | Passive 2-Way |
| Nominal impedance | 4 Ohms |
| Minimum Impedance | 3.1 Ohms |
| Rated Power RMS | 1000 W |
| Peak Power | 4000 W |
| Sound pressure level | |
| SPL 1 W / 1 m | 103 dB |
| Max. SPL 1m (calculated with peak power) | 139 dB |
| Frequency Range (-10 dB) | 55 Hz to 15 kHz |
| Nominal Coverage Angle (Horizontal x Vertical) | 60° x 40° (or 40° x 60°) |
| X-Over Frequency | 1750 Hz |
| LF Transducer | 2x SMX2151, 15″ (381 mm) Driver |
| HF Transducer | ND2-8, 2″ (51 mm) Diaphragm Compression Driver |

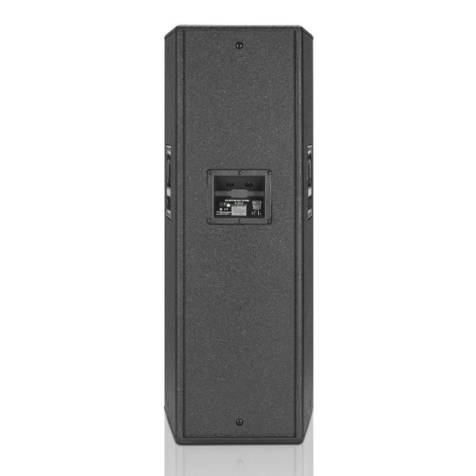

| Connectors | 2x Neutrik Speakon NL4 Full-Range 1+ / 1- Wired through 2+ / 2- |
| Dimensions (W x H x D) | 445 mm x 1130 mm x 445 mm (17.5″ x 44.5″ x 17.5″) |
| Net Weight | 44.9 kg (99.0 lbs) |
| Shipping Weight | 50.5 kg (111.3 lbs) |
| Enclosure material | MDF with D-PUR PLUS |
| Grille | Steel, Black Finish with Acoustic Gauze |
| Suspension | 6x M8 threaded Points – 2x on Each Side and 2x on the Rear of Enclosure |
| Warranty | 5 years |
| Optional Accessories | |
| EBK-M8 Eye Bolt Kit | F01U166797 |
| Spare Parts | |
| LF Transducer | F01U134309 |
| HF Transducer | F01U106894 |
