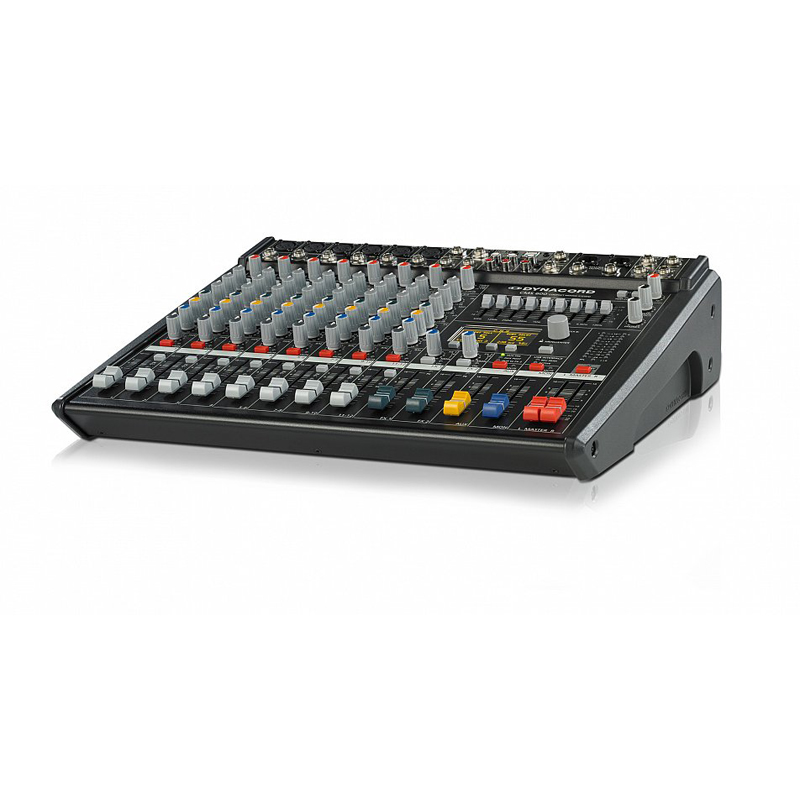

Description
The Compact Mixing System from Dynacord has seized pole position in this segment of the market by virtue of the quality of its sound, components and features. By integrating a high-quality mixer, two digital effects processors of studio grade, a graphic equalizer and also a professional digital interface to PC or Mac, the CMS mixers represent the ideal solution for a large number of demanding applications in the audio sector.
The mixing section starts with 16 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. A TAP key allows precise setting of delay times. Further, each preset can be edited and stored to 20 User memories.
The built in uncompromising USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, please see information on available drivers, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.
The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels.
For dark environments an optional gooseneck light can be connected. All faders are dust protected and not least the balanced XLR outputs for master and monitor underline the professional approach.
Optional a very robust cover lid with an integrated handle is available. A solution that offers optimal protection for the device as well as greater carrying comfort without the need of adding a large, heavy flight case.
The MIC/LINE Channels
In the mixer section, a total of 8 channel strips are available: 4 MIC / LINE channels, 2 MIC / Stereo USB channels (‘Super Channels’) and 2 stereo LINE channels.
The MIC / LINE channels offer extremely low-noise and low-hum electronically balanced XLR microphone inputs with an extremely low distortion factor (typ. 0.002%) for the connection of low-impedance microphones. For condenser microphones, phantom power (+48 volts) is centrally switchable. The LINE inputs are also electronically balanced and implemented as TRS sockets. In addition to a Gain control, a highly efficient 3-band equalizer, FX send, AUX send and a Monitor send as well as either Panorama or Balance controls are available. The four MIC / LINE channels provide a switchable 80Hz Lo-Cut filter to cut-off unwanted rumble, whilst the Super Channels 5-6 and 7-8 are supplied by the USB stereo inserts 1-2 and 3-4.
The STEREO-LINE channels (9-10 and 11-12) offer electronically balanced TRS inputs for the connection of electronic instruments such as keyboards, drum-computers, guitars and basses with active electronics, as well as all other high-level stereo signal sources such as additional mixers, effects devices etc. CD or MP3 players can be connected to the additional cinch (RCA) inputs CD 1-2 and CD 3-4, which are switched in parallel. The tone controls and sends are identical to those of the MIC / LINE channels.
All input channels, provide a Signal / Peak LED to assist level control. The SIG LED illuminates at around -30 dB and the PK LED at 6dB beneath the distortion threshold. A MUTE button and a PFL button (in channels 5-12 in stereo) are further features found in all input channels.
The DIGITAL AUDIO Interface
The DIGITAL AUDIO INTERFACE features two stereo channels, present as USB 1-2 and USB 3-4 in Super Channels 5-6 and 7-8 respectively. This professional interface is implemented with 24-bit resolution and sampling rates up to 96 kHz, satisfying studio requirements. The USB sends are supplied with the Master L and R, AUX and MON signals. The DIGITAL AUDIO INTERFACE can be used for input and output simultaneously. Via the USB 2.0 port of your PC / Mac, four channels can be transmitted simultaneously in each direction. When a USB 1.1 interface is used, two channels can be transmitted simultaneously in each direction. The CMS is designed for the level of standard PCs / Macs; the gain level can easily be adjusted from the connected computer. Included in the delivery is an instruction sheet and a licenses code for the Cubase LE software.

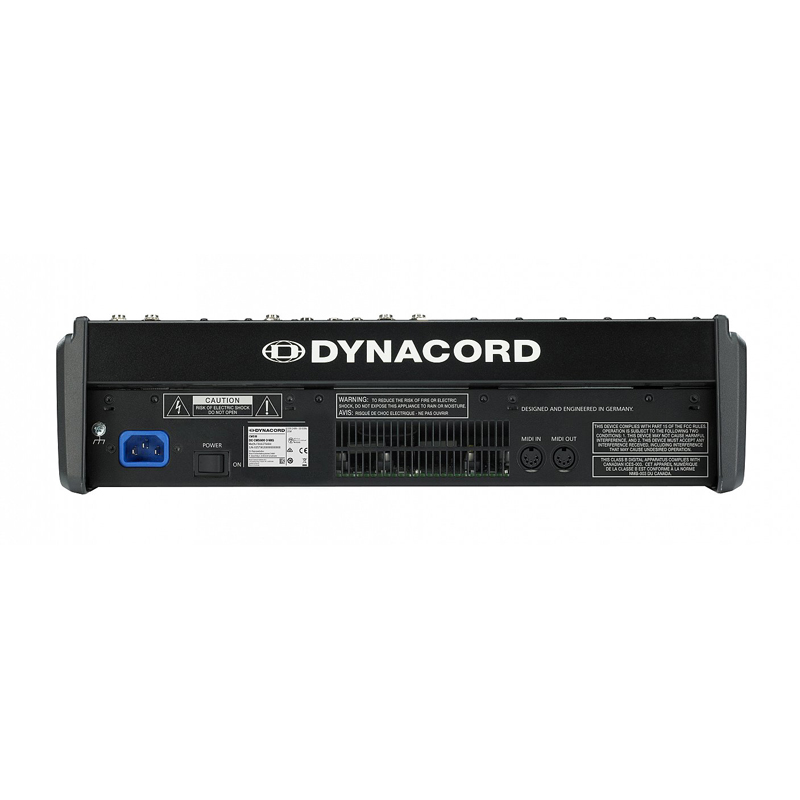

PC MIDI Interface
The CMS includes a fully-featured PC MIDI interface. The MIDI input also supports the remote switching of both internal effects units using a master keyboard or MIDI footswitch.
Master
Master Section features the Master A L+R sends (on separate faders), an additional Master B send (switchable pre/post master A and mono/stereo), the stereo effects returns, and the master sends of the AUXiliary and MONitor busses. If the AUX buss is not used to supply FX 2, it can be switched pre or post fader to use as an additional monitor or FX send.
The 9-band stereo equalizer in the master section allows you to adjust the frequency response to the acoustics of the room. The REC SEND and USB OUT controls determine the level of the master L+R signal at the Rec Send sockets and in the output channels of the digital USB interface. PHONES allows you to adjust the volume of the headphones output.
Two ten-LED meters provide an overview of the power amplifier level. When the PFL switch is activated, the left-hand LED chain shows the internal level of the master buss in dBu. The STANDBY switch mutes all outputs with the press of a single button. For the playback of e.g. background music, the DEVICE SETUP menu allows you to route stereo channel 11-12 for standby operation directly to the power amplifiers.
Stereo Effects and Processing
CMS is equipped with two very high-quality, 24-bit stereo effects processors, FX 1 and FX 2; they operate independently and can therefore be mixed. The two effects units are fully identical in their design. Each effects section offers 100 presets including studio-quality reverb, delay and modulation effects selected by means of the display. When a delay effect is active, the actual delay time can be synchronized to the beat of the music using the TAP key. Customized effects can be created modifying individual parameters of the presets and storing the results in the 20 user memories.
Both effects units are supplied by the FX Send buss. In the DEVICE SETUP menu, you can configure the AUX send buss to function as an FX 2 send, so that only the FX 1 effects unit is supplied by the FX 1 buss. In this way, the two effects devices can be used independently of each other. The effects can be mixed separately to the master and monitor busses. To manage the FX, the large, high-contrast OLED display is easily read from a wide range of viewing angles, even in very bright surroundings. The operation of the effects units and processing menus is intuitive and made easier still through the use of soft keys and a rotary encoder.
Thanks to its impressive feature set and versatility, the CMS 600-3 mixer is the ideal choice for all professional applications in which few channels, yet high audio quality, are required.
Being light and compact, it poses no transport problems. The CMS 600-3 mixer is also a great solution in many fixed installation applications.
Performance without compromise.
The pro audio mixer amongst mixers. Unique. CMS 600-3
| SPECIFICATIONS | |
|---|---|
| Channels | 4 +2 + 2 |
| MIC/Line-Mono | 4 |
| MIC/Line-Mono / USB-Stereo (Super Channel) | 2 |
| Line L-R / CD-IN-Stereo | 2 |
| Auxiliarys (AUX, MON) | Pre/Post switchable, Pre |
| MIC GAIN (LINE -20 dB) | +10 to +60 dB |
| TRIM LINE/CD (Stereo) | -10 to +20 dB |
| THD, at 1 kHz, MBW = 80 kHz | |
| MIC input to Master A L/R outputs, +16 dBu, typical | < 0.005% |
| Frequency Response, -3 dB, ref. 1 kHz | |
| Any input to any Mixer output | 15 Hz to 70 kHz |
| Crosstalk, 1 kHz | |
| Channel to Channel | < -80 dB |
| Mute & Standby switch attenuation | > 100 dB |
| Fader & FX/AUX/MON-Send attenuation | > 85 dB |
| CMRR, MIC input, 1 kHz | > 80 dB |
| Input Sensitivity, all level controls in max. position | |
| MIC | -74 dBu (155 µV) |
| LINE (Mono) | -54 dBu (1.55 mV) |
| LINE (Stereo) | -34 dBu (15.5 mV) |
| CD (Stereo) | -34 dBu (15.5 mV) |
| Maximum Level, mixing desk | |
| MIC inputs | +12 dBu |
| Mono Line inputs | +31 dBu |
| Stereo Line inputs | +30 dBu |
| All other inputs | +22 dBu |
| All other outputs | +22 dBu |
| Input Impedances | |
| MIC | 2 kΩ |
| CD In | 10 kΩ |
| All other inputs | > 15 kΩ |
| Output Impedances | |
| Phones | 47 Ω |
| All other outputs | 75 Ω(unbalanced), 150 Ω (balanced) |
| Equivalent Input Noise, MIC input, A-weighted, 150 ohms | -130 dBu |
| Noise, Channel inputs to Master A L/R outputs, A-weighted | |
| Master fader down | -100 dBu |
| Master fader 0 dB, Channel fader down | -92 dBu |
| Master fader 0 dB, Channel fader 0 dB, Channel gain unity | -82 dBu |
| Equalization | |
| LO Shelving | ±15 dB / 60 Hz |
| MID Peaking | ±12 dB / 2.4 kHz |
| HI Shelving | ±15 dB / 12 kHz |
| Master EQ 9-band (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz) | ±10 dB / Q = 1.5 to 2.5 |
| Filter | |
| LO-CUT, mono inputs | f = 80 Hz, 18 dB/oct. |
| Filter | |
| LO-CUT, mono inputs | f = 80 Hz, 18 dB/oct. |
| Display | 128 x 64 pixels, OLED |
| Effects | |
| Type | Dual stereo 24/48-bit multi effects processors |
| Effects presets | 100 Factory + 20 User, Tap-Delay |
| Remote control | Footswitch, MIDI |
| Digital Audio Interface | |
| Channels | 4 In / 4 Out |
| AD/DA Conversion | 24-bit |
| Sampling Rate | 44.1 / 48 / 88.2 / 96 kHz |
| PC Interface | USB2.0, Female Type B |
| Supported OS | See documentation |
| MIDI Interface | 5-pin DIN connector, In / Out |
| Protection | |
| Mixer Outputs (Relay controlled) | AUX, MON, MASTER A L/R |
| Switching Mode Power Supply (µC controlled) | Mains Over/Undervoltage |
| Phantom Power, switchable | 48 V DC |
| Power Requirements (SMPS with auto range mains input) | 100 V to 240 V AC, 50 Hz to 60 Hz |
| Power Consumption, at 1/8 maximum output power, 4 ? | 35 W |
| Safety Class | I |
| Ambient Temperature Limits | +5 °C to +40 °C (40 °F to 105 °F) |
| Dimensions (W x H x D), mm | 416.9 x 108.6 x 347.8 Rack-mount (7.5 HE): 483.0 x 99.1 x 332.6 |
| Weight | |
| Net Weight | 5.8 kg |
| Shipping Weight | 7.8 kg |
| Warranty | 36 months |
| Optional Accessories | |
| RMK-600-3 (Rack Mount Kit for CMS 600-3) | F01U214881 (DC-RMK-CMS-3) |
| FS 11 (Footswitch with LED) | F01U100598 (DC-FS11) |
| Carrying Bag for CMS 600-3 | F01U259015 (DC-BAG-600CMS) |
