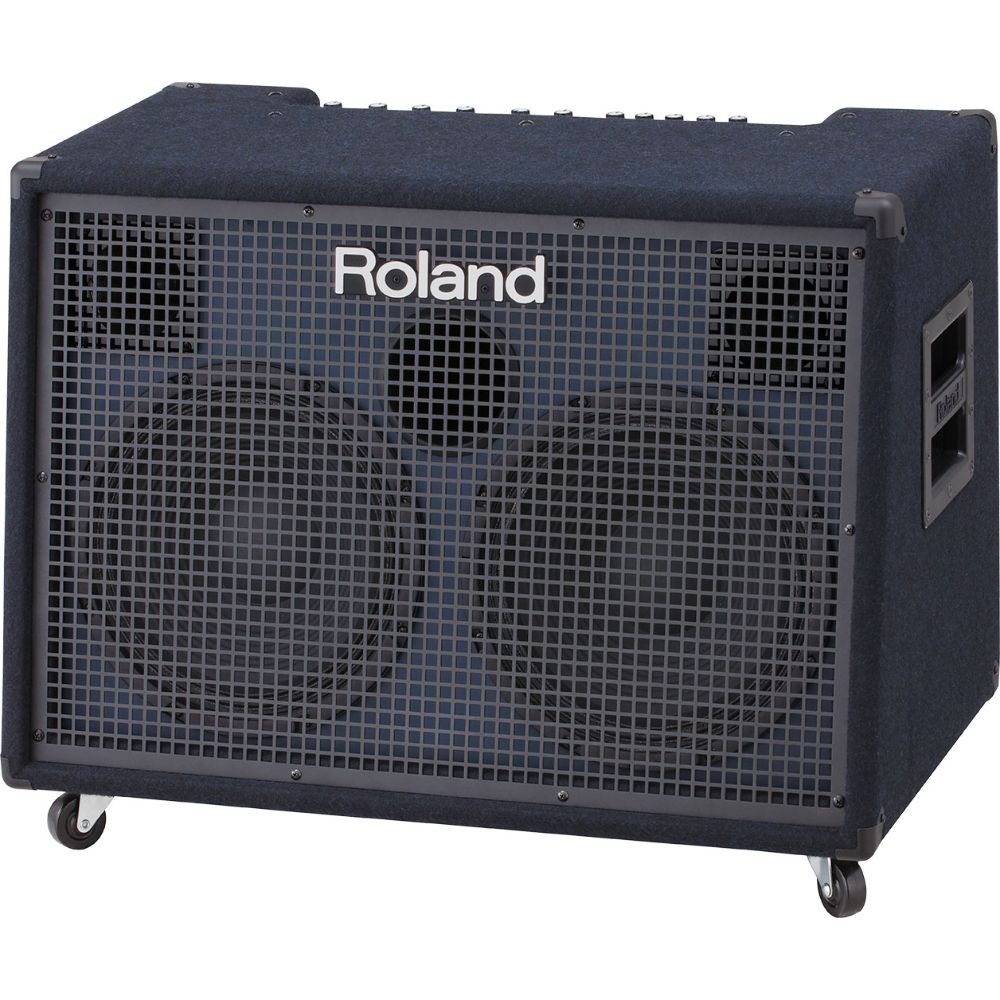

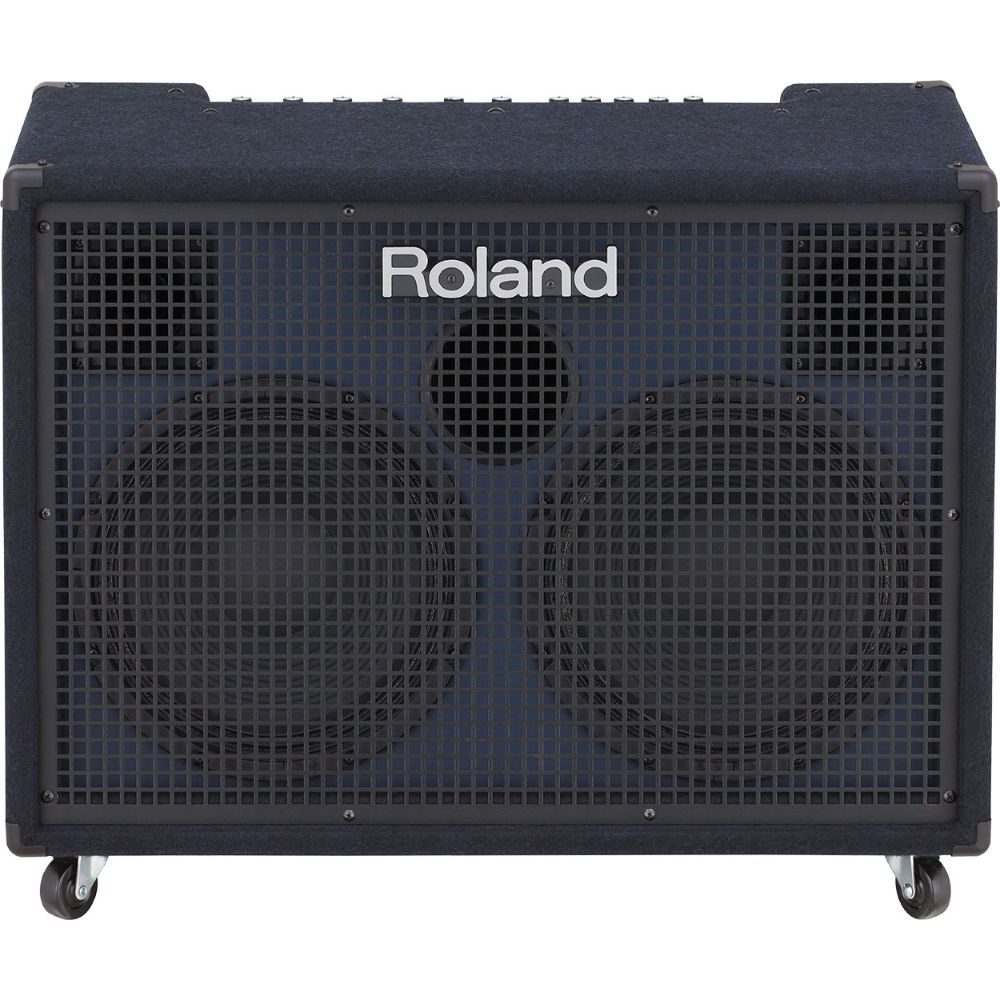

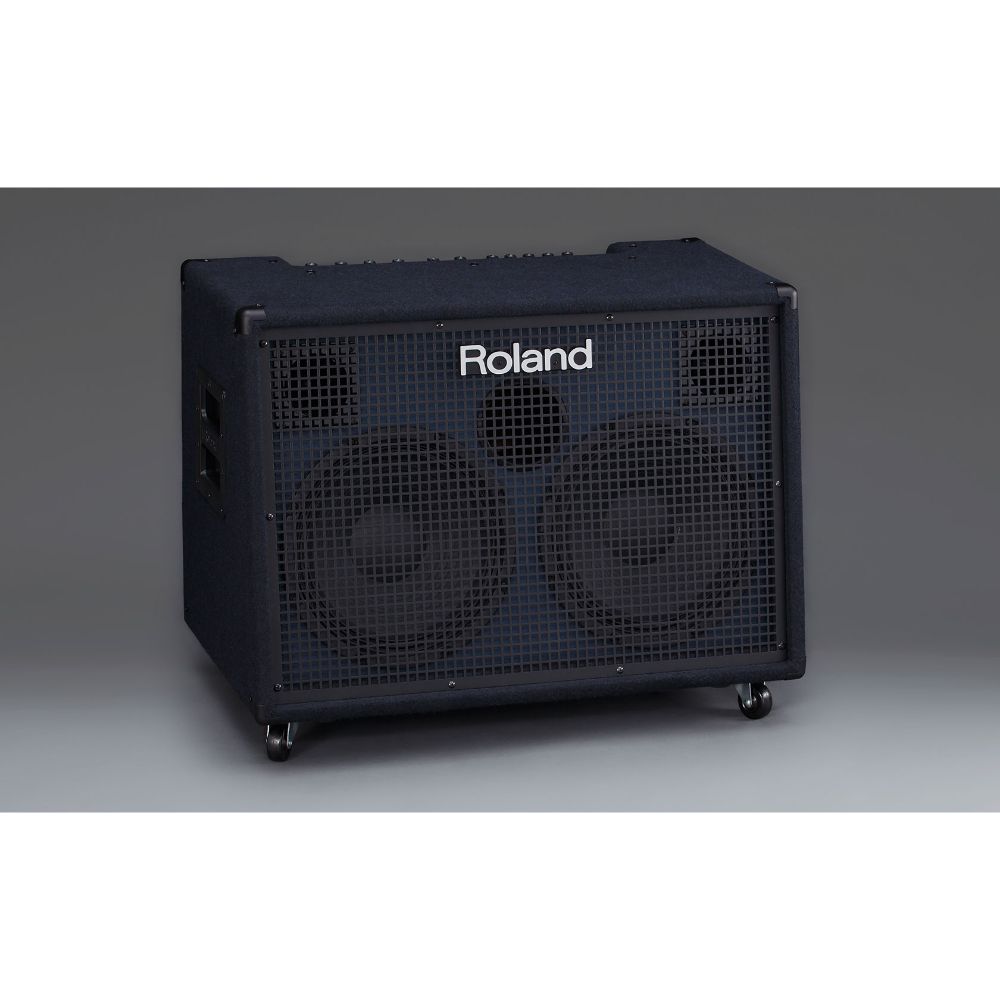

Roland 320W 4-Ch Stereo Mixing Keyboard Amplifier KC-990

Description

Worth It Every Time

For over two decades, keyboard players everywhere have relied on Roland’s KC amps for their powerful high-fidelity sound, onboard mixing features, versatile connectivity, and lasting durability. The latest generation carries on the time-honored KC benchmark of quality while offering new enhancements tuned for the needs of today’s working musicians. With a KC amp by your side, you’re in complete control of your stage rig, so you’ll always sound great and play your best. And that’s worth it every time.

The flagship KC-990 is a performance powerhouse filled with high-end features. Offering four onboard DSP effects, four stereo input channels, a stereo aux input, and support for an XLR vocal mic, it’s a great all-in-one solution for players with large keyboard setups and small groups performing with electronic instruments and backing tracks. The KC-990 delivers big, full sound for both stage monitoring and PA use, thanks to its stereo speaker configuration and 320 watts of total power. And with Stereo Link capability, you can seamlessly add a second KC-990 when you need more inputs and broader sound coverage.

Full-Range Stereo Sound for High-Impact Performances

The KC-990 offers full-range stereo sound reproduction with 320 watts of power (160 watts x 2), two newly designed 12-inch speakers, and two custom horn tweeters. This allows the KC-990 to accurately reproduce the wide frequency range of 88-note stage pianos, organs, and synthesizers, as well as rhythm machines and other electronic instruments.

Onboard Mixing for Big Rigs and Full Groups

Roland’s most powerful KC amp is a complete stereo sound system in a single package, making it ideal for backline amplification, stage monitoring, and even main PA use. With four stereo line input channels available, you can connect keyboards, percussion pads, drum machines, and more. There’s also a dedicated auxiliary input to plug in a smartphone or music player for backing tracks. Channel 1 includes an XLR input too, allowing you to connect a vocal mic for even more versatility. The Aux In channel supports 1/8-inch, RCA, and ¼-inch connections, and features a handy monitor function for working with guide tracks on stage.

Built-In Stereo Effects

The KC-990 comes equipped with four different effects for sweetening your live sound. The chorus effect is derived from Roland’s world-famous JC-series amps, providing unmatched depth and dimension through the KC-990’s stereo speakers. The amp also includes tremolo and rotary effects that work great with organs and electric pianos, plus a lush stereo reverb for vocals and instruments. By connecting optional footswitches, you can turn the effects on/off and control rotary speed hands-free while performing.

Versatile Connectivity for Performing, Recording, and Practice

With its rear-panel connectivity, the KC-990 integrates easily into any playing environment. Stereo line outputs are provided on both XLR and ¼-inch jacks, offering simultaneous connections for interfacing with PA systems, stage monitors, and recording devices. The XLR outputs also have a switchable ground lift, which eliminates hum that can sometimes occur when connecting to a main PA. There’s a headphones jack too, perfect for silent practice sessions and discrete monitoring of guide tracks and instruments on stage.

Expand Your Setup with Stereo Link

If you ever need to expand your inputs or sound coverage, the KC-990’s Stereo Link function makes it simple. First off, the number of available inputs doubles when you connect to the two stereo link jacks on a second KC-990. In addition, the left and right signals of connected instruments are split across the two amps, providing super-wide stereo dispersion for even more impressive sound.

Specifications:

• Rated Power Output: 320 W (160 W + 160 W)
• Nominal Input Level (1 kHz):
  • CH1 (BALANCED, L/MONO, R): -50– -20 dBu
  • CH2 (L/MONO, R): -20 dBu
  • CH3 (L/MONO, R): -20 dBu
  • CH4 (L/MONO, R): -20 dBu
  • AUX IN/MONITOR IN (AUX 1?AUX 2?AUX 3): -10 dBu
  • STEREO LINK (IN): 0 dBu
• Nominal Output Level (1 kHz):
  • LINE OUT (L/MONO, R): +4 dBu
  • LINE OUT (BALANCED L, R): +4 dBu
  • STEREO LINK (OUT): 0 dBu
• Speakers:
  • 30 cm (12 inches) Woofer x 2
  • Horn Tweeter x 2

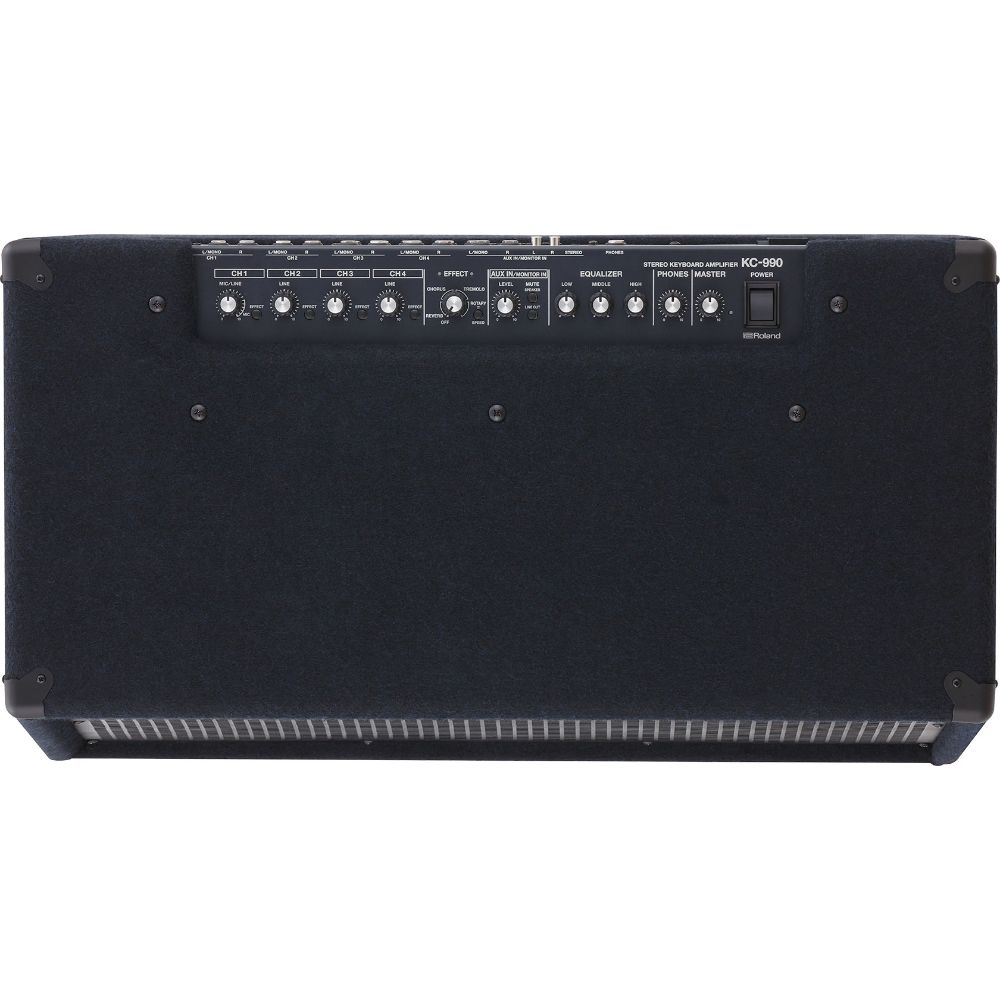

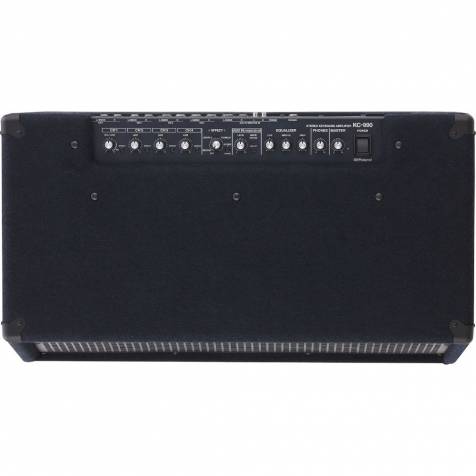

• Controls:
  • POWER switch
  • GND LIFT switch
  • [CH1]
    • MIC/LINE knob
    • EFFECT button
  • [CH2]
    • LINE knob
    • EFFECT button
  • [CH3]
    • LINE knob
    • EFFECT button
  • [CH4]
    • LINE knob
    • EFFECT button
  • [EFFECT]
    • EFFECT knob
    • ROTARY SPEED button
  • [AUX IN]
    • LEVEL knob
    • MUTE SPEAKER button
    • MUTE LINE OUT button
  • [EQUALIZER]
    • LOW knob
    • MIDDLE knob
    • HIGH knob
  • [PHONES]
    • VOLUME knob
  • MASTER knob
• Indicator: Power

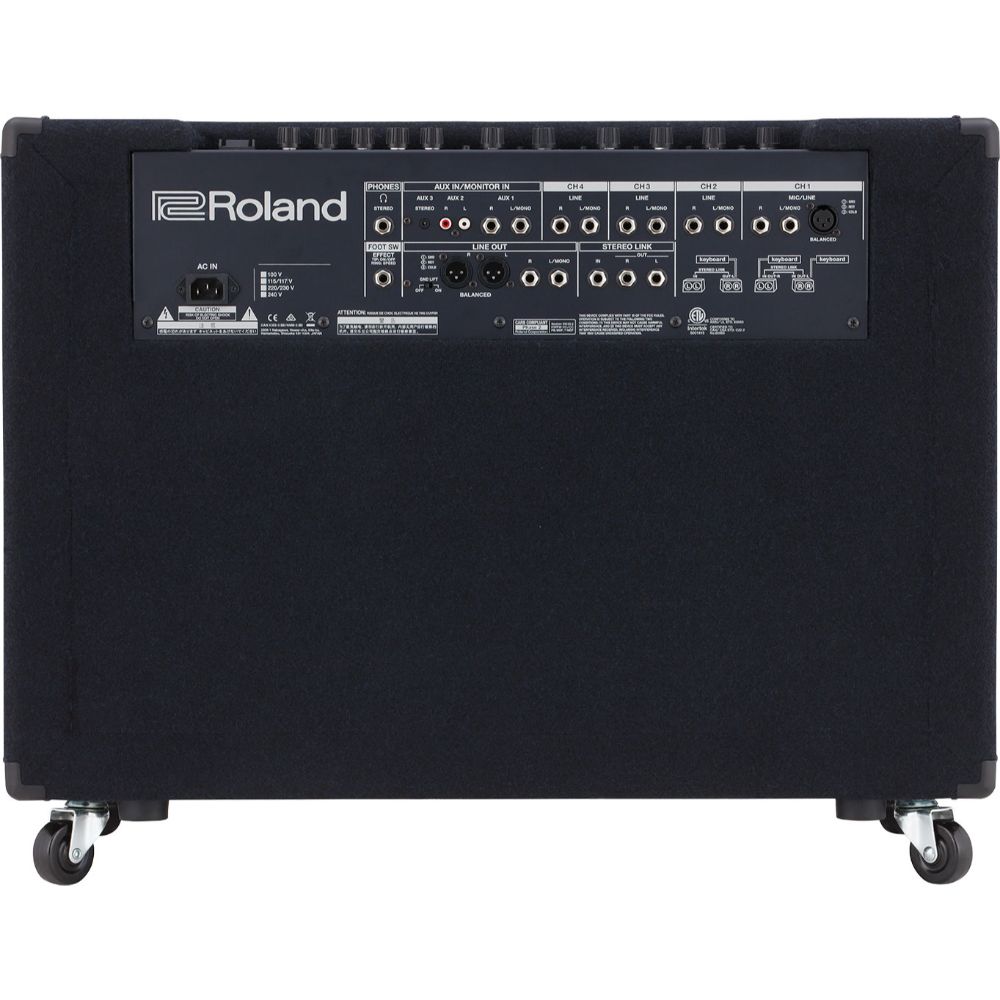

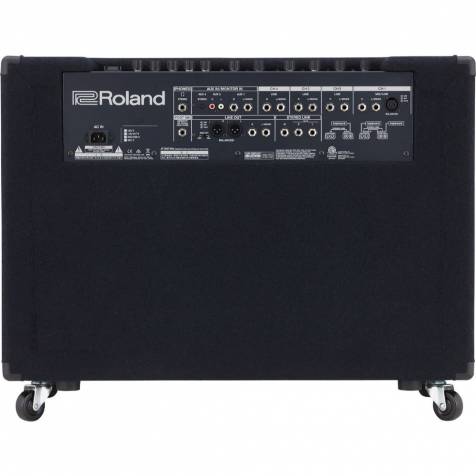

• Connectors:
  • CH1 (BALANCED) jack: XLR type
  • CH1 (L/MONO, R) jacks: 1/4-inch phone type
  • CH2 (L/MONO, R) jacks: 1/4-inch phone type
  • CH3 (L/MONO, R) jacks: 1/4-inch phone type
  • CH4 (L/MONO, R) jacks: 1/4-inch phone type
  • AUX IN/MONITOR IN
    • AUX 1 (L/MONO, R) jacks: 1/4-inch phone type
    • AUX 2 (L, R) jacks: RCA phono type
    • AUX 3 (STEREO) jacks: Stereo miniature phone type
    • PHONES jack: Stereo 1/4-inch TRS phone type (mono signal output)
  • STEREO LINK (IN, OUT L, OUT R) jacks: 1/4-inch phone type
    • LINE OUT (L/MONO, R) jacks: 1/4-inch phone type
    • LINE OUT (BALANCED L, R) jacks: XLR type
    • FOOT SW jack: 1/4-inch TRS phone type
• Power Consumption: 98 W
• Accessories:
  • Owner’s Manual
  • Caster x 4
• Width: 759 mm (29-15/16 inches)
• Depth: 470 mm (18-9/16 inches)
• Height (including casters): 585 mm (23-1/16 inches)
• Height (excluding casters): 534 mm (21-1/16 inches)
• Weight: 42 kg (92 lbs 10 oz)
