Description

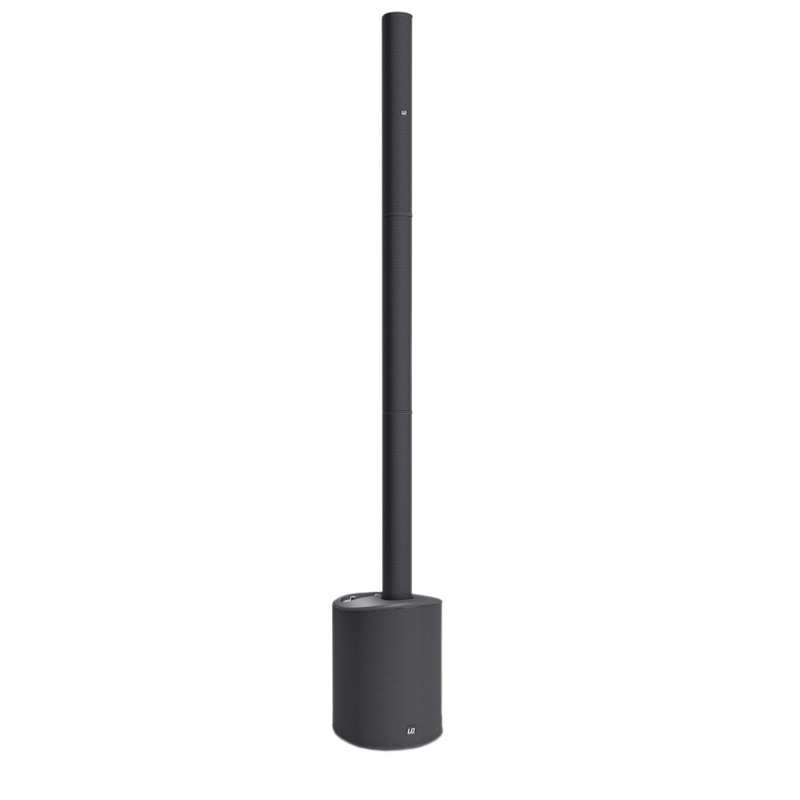

Portable Column Speaker LDMAUI5
The MAUI 5 is an ultra-compact PA and monitor system in one that comes in at just under 11 kg to supply 800 watts peak performance and a maximum sound pressure of 120 dB. The smallest member of the MAUI family is assembled in a matter of seconds thanks to specially developed multi-pin connectors and only four components. It also boasts extensive sound dispersion and high feedback resistance. The MAUI 5 is easy to carry and fits on any car seat.

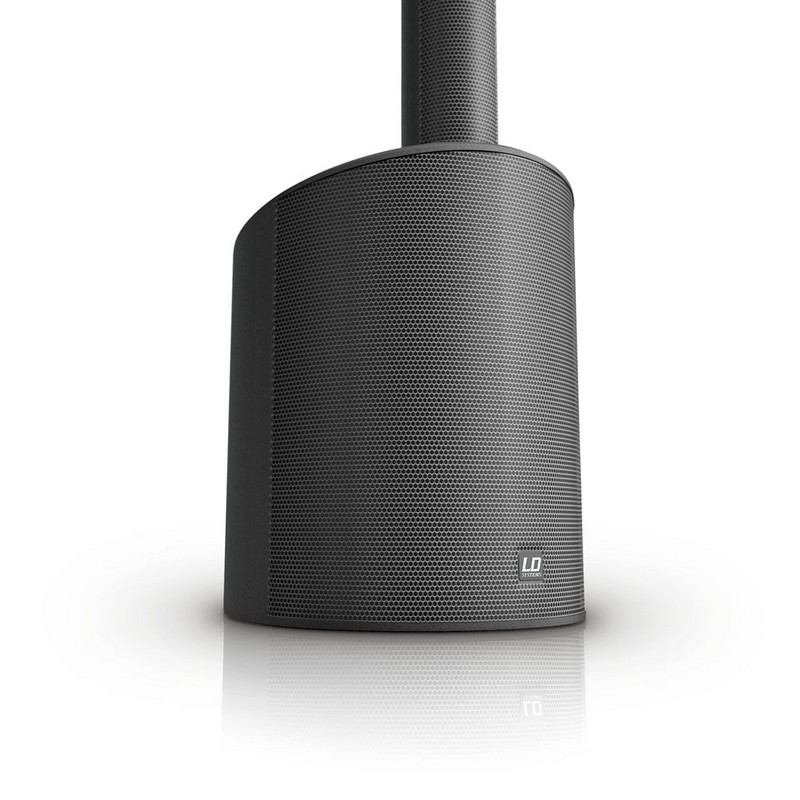

The bass reflex cabinet of the 8″ subwoofer base also houses the system’s class-D amplifier unit with protection circuits against overcurrent, overheating and short-circuiting, LD Systems LECC digital signal processing, and a 4-channel mixer. Thanks to built-in Bluetooth technology for wireless streaming alongside use of the microphone, line and high-impedance inputs, a wide variety of sound sources can be connected to the MAUI 5, including playback devices and instruments, such as keyboards or guitars. Separate level controllers, subwoofer and system volume controllers, and a high-shelf filter for adjusting treble to room acoustics ensure perfectly tuned performances. The MAUI 5 is also available in white (LDMAUI5W).
SPECIFICATIONS
- Weight: 11,3 kg
- Product type: PA Complete Systems
- Color: Black
- Max. SPL (continuous): 114 dB
- Max. SPL (peak): 120 dB
- Frequency response: 50 – 20000 Hz
- Dispersion (H x V): 120° x 20
- Overall height: 1985 mm
- Other features: 4 channel mixer, Bluetooth, DSP-based signal processing
Woofer characteristics
- Low/mid driver dimensions: 8″
- Woofer size: 203.2 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2″
- Woofer voice coil (mm): 50.8 mm
- Cabinet construction: Bass Reflex
- Cabinet material: ABS plastic
- Subwoofer width: 305 mm
- Subwoofer height: 405 mm
- Subwoofer depth: 395 mm
Mid/Hi System
- Midrange size: 4 x 3″
- Midrange size: 4 x 76.2 mm
- Midrange magnet: Neodymium
- Midrange brand: Custom-made
- Midrange voice coil: 1″
- Midrange voice coil: 25.4 mm
- Mid/Hi system impedance: 4 Ohm(s)
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: ABS plastic
- Mid/Hi system width: 82 mm
- Mid/Hi system height: 535 mm
- Mid/Hi system depth: 105 mm
Amplifier module (integrated in subwoofer)
- Amplifier: Class D
- Amplifier output system (RMS): 200 W
- Amplifier output system (peak): 800 W
- Protection circuits: DSP-based multiband limiter, over-current, short circuit, thermal overload
- Cooling: Convection

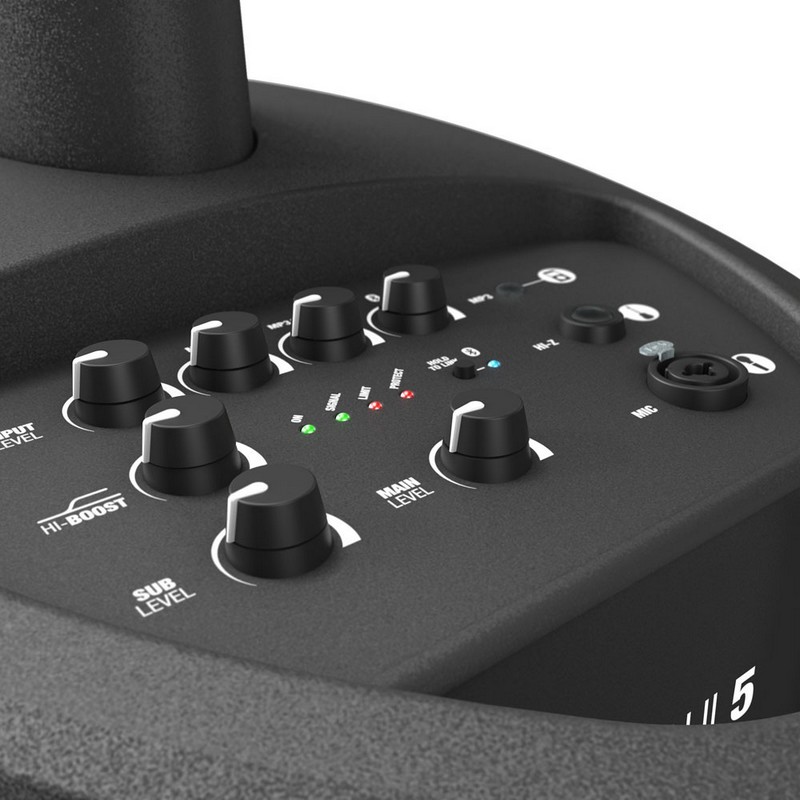

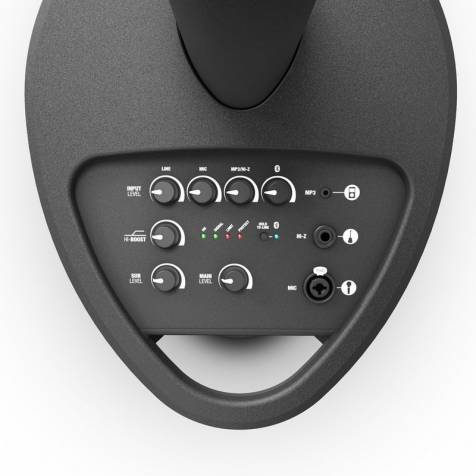

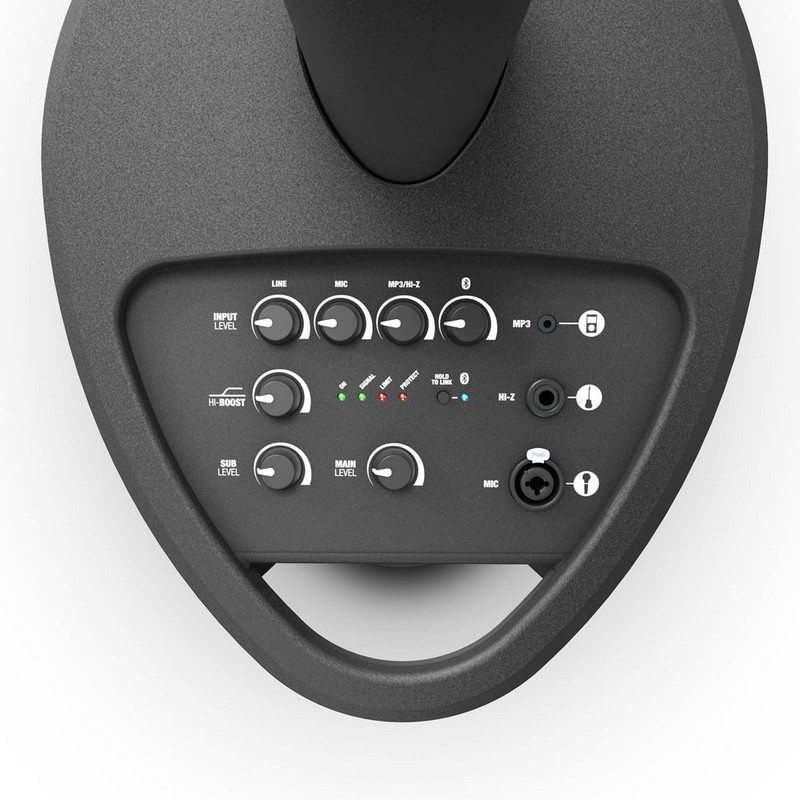

- Controls: BT level, BT pairing, limiter, Line level, Main level, Mic level, MP3 / Hi-Z level, On, Protect (protection circuit engaged), Signal, Sub level
- Indicators: Limit, On, Protect (protection circuit engaged), Signal
- Operating voltage: Switching power supply
- Operating voltage: 100 V AC – 120 V AC, 50 – 60 Hz, 200 V AC – 240 V AC, 50 – 60 Hz (Automatic conversion)

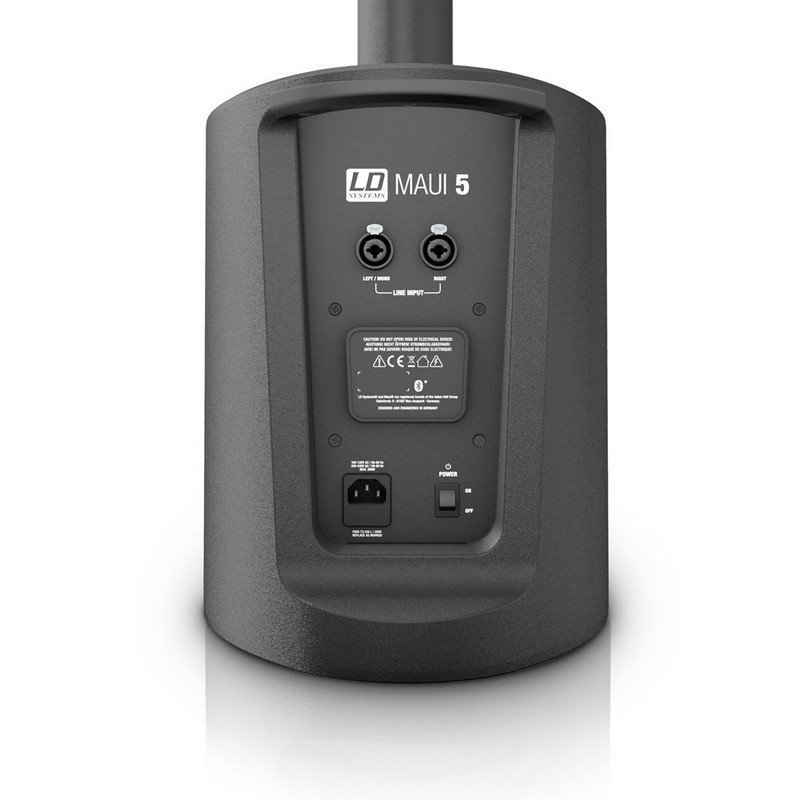

- Line inputs: 2 x stereo
- Line input connectors: 6.3 mm jack, XLR
- Mic inputs: 1
- Mic inputs: 6.3 mm jack, XLR
- MP3 inputs: 1
- MP3 input connectors: 3.5 mm jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Loudspeaker outputs: 1
- Speaker output connections: Custom-made multipin
DSP characteristics
- Bit depth AD/DA converter: 24 / 24 bit
- Internal sampling frequency: 48 kHz
