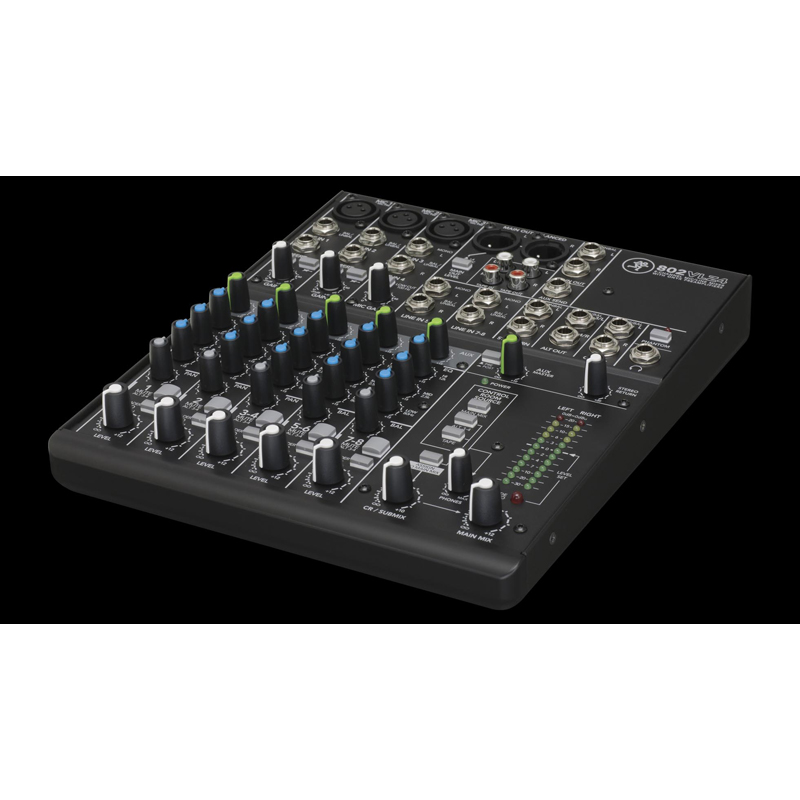

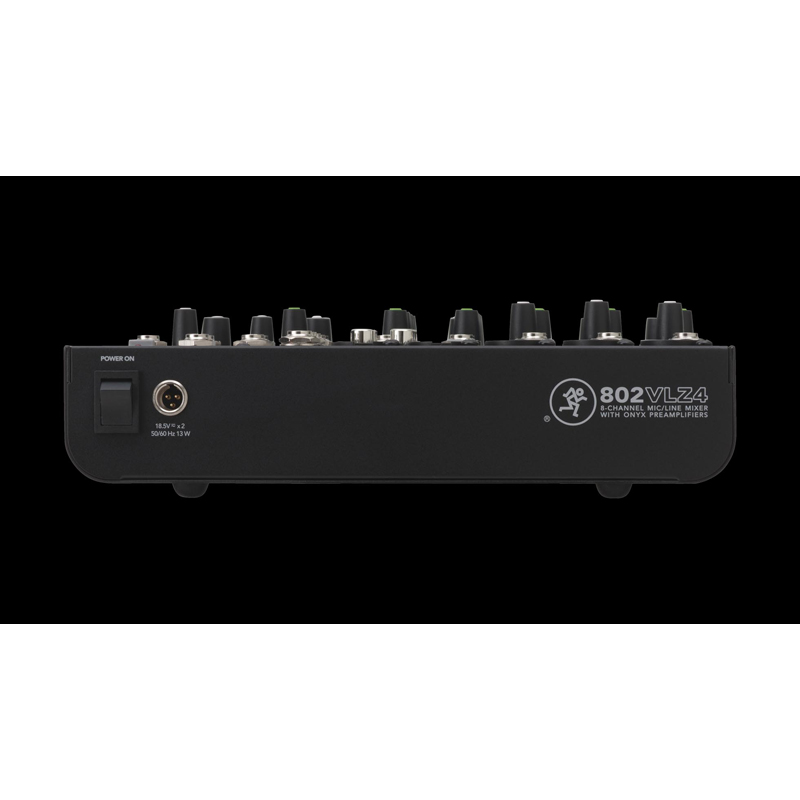

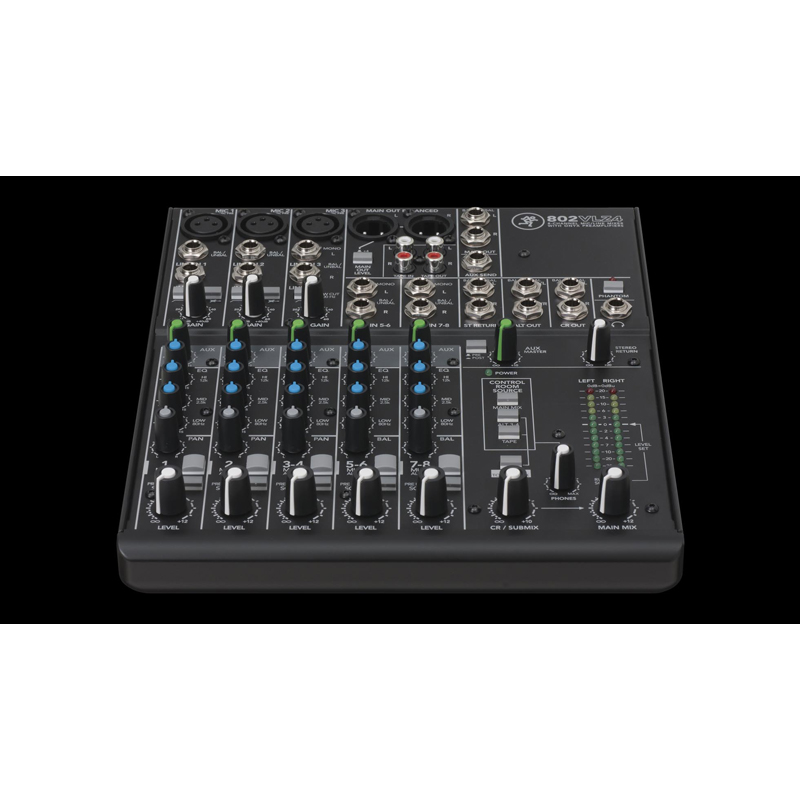

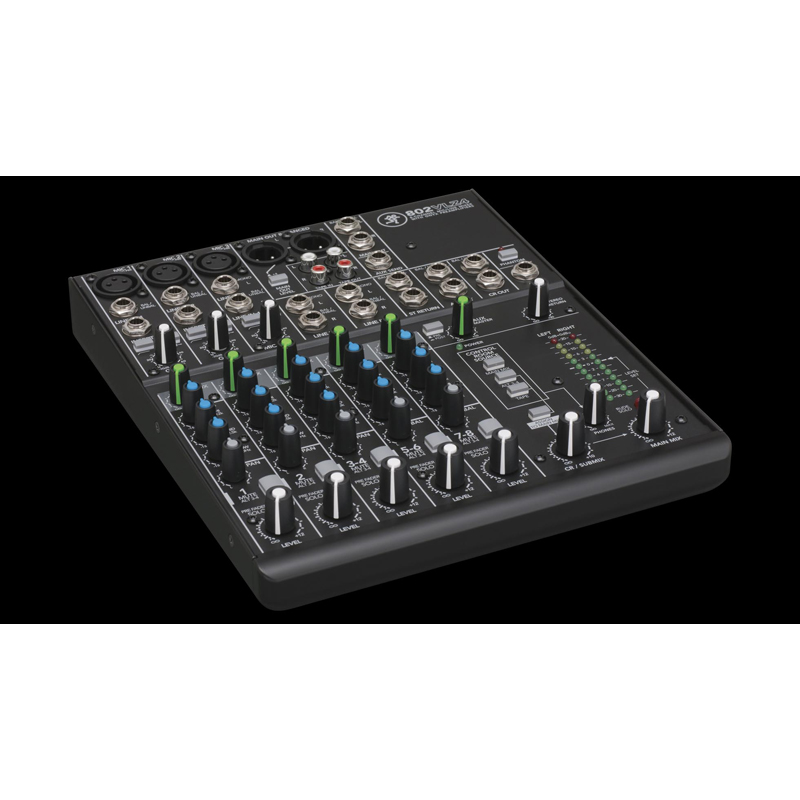

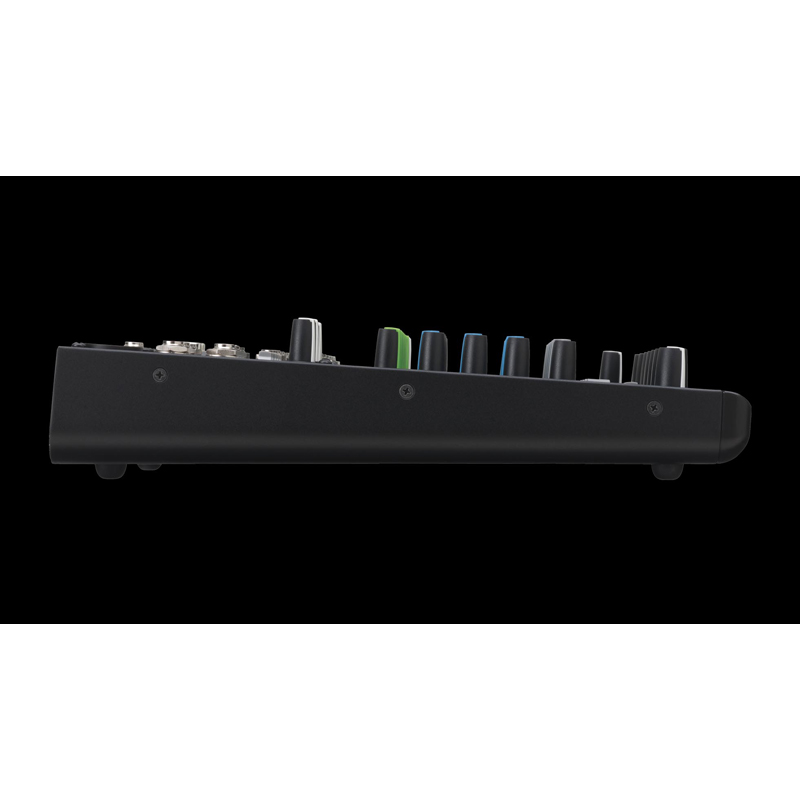

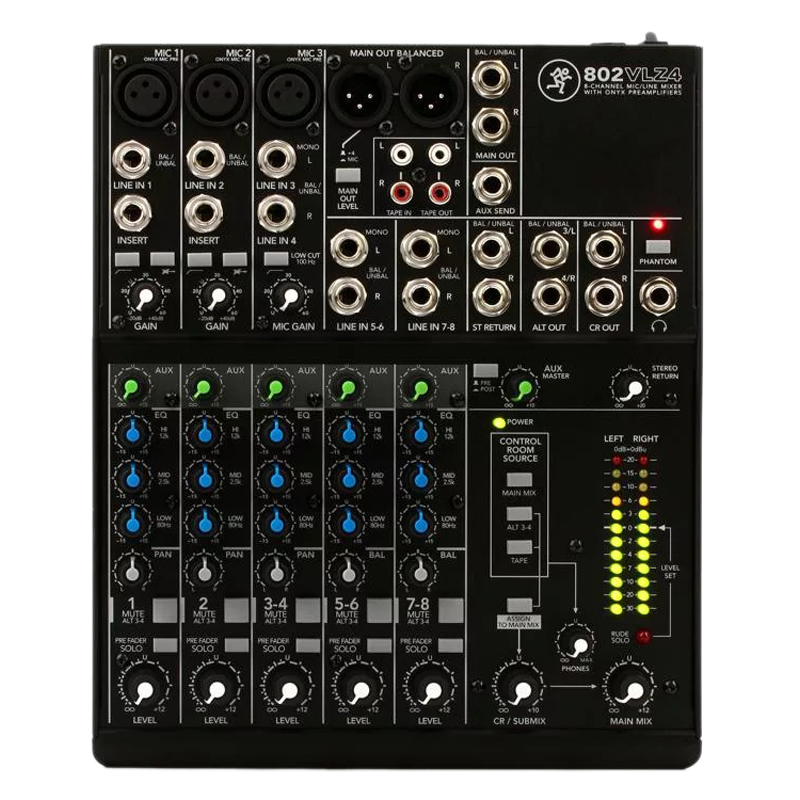

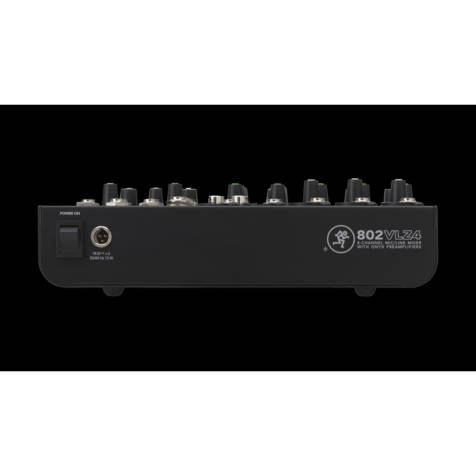

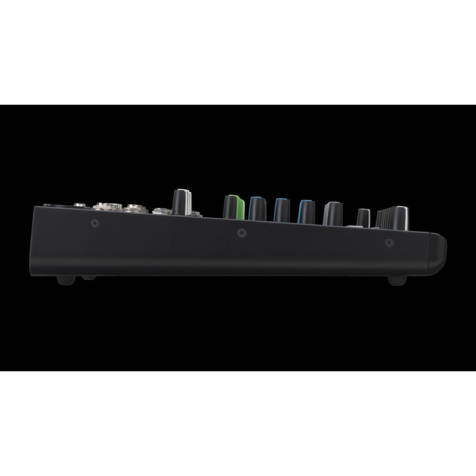

Mackie 802VLZ4 8-Channel Ultra Compact Mixer

Description

Mackie 8-CHANNEL ULTRA-COMPACT ANALOG MIXER

VLZ4 ups the level of sonic quality at every level, featuring Mackie’s flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.

PRO FEATURES IN A DESK-FRIENDLY DESIGN

Meet the desk-friendly 802VLZ4. Equipped with the perfect combination of pro features, channel count while keeping the size small enough for any desk. The 802VLZ4 is perfect for home recording, broadcast, content creation, and more.

8-channel mixer featuring our signature high-headroom, low-noise design

3 boutique-quality Onyx mic preamps

• Ultra-wide 60 dB gain range
• 128.5 dB dynamic range
• +22 dBu line input handling
• Extended frequency response
• Distortion under 0.0007% [20 Hz – 50 kHz]

Improved RF rejection, perfect for broadcast applications

Phantom power for condenser mics

Eight high-headroom line inputs

Selectable instrument inputs on first two channels – no DI box needed

3-band EQ (80 Hz, 2.5 kHz, 12 kHz)

18 dB/oct 100 Hz low-cut filter on mic input channels

Aux send, level, pan and PFL solo on each channel

Stereo return for connecting FX processor or other stereo source

ALT 3/4 stereo bus for added routing flexibility

Control room / phones source matrix

High-resolution 12-segment stereo meters

Sealed rotary controls resist dust and grime

Built-Like-A-Tank” rugged steel chassis with powder-coat finish

High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback

Specifications

Main Mix Noise
Main mix knob down, channel level knobs down	XLR: -95 dBu TRS: -101 dBu
Main mix knob unity, channel level knobs down	XLR: -90 dBu TRS: -96 dBu
Main mix knob unity, channel level knobs unity	XLR: -84 dBu TRS: -90 dBu
Total Harmonic Distortion (THD)
(1 kHz @ 30 dB gain, 20 Hz-20 kHz bandwidth)Mic pre @ insert	<0.001%
Attenuation / Crosstalk
Main mix knob down	-75 dBu
Channel Alt / Mute switch engaged	-100 dBu
Channel level knob down	-100 dBu
Frequency Response
Mic input to main output (gain @ unity)	+0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz
Equivalent Input Noise (EIN)
150 Ω termination	-128.5 dBu 20 Hz-20 kHz
Common Mode Rejection Ratio (CMRR)
1 kHz	better than -70 dB
Maximum Levels
Mic in	+21 dBu
Tape in	+22 dBu
All other inputs	+22 dBu
Main mix XLR out	+28 dBu
All other outputs	+22 dBu
Impedances
Mic in	2.55 kΩ
Channel insert return	5 kΩ
All other inputs	17 kΩ or greater
Tape out	1.0 kΩ
Phones out	60 Ω
All other outputs	120 Ω
EQ
High Shelving	±15 dB @ 12 kHz
Mid Peaking	±15 dB @ 2.5 kHz
Low Shelving	±15 dB @ 80 Hz
AC Power Requirements
Power Consumption	13 watts
US, JP	100 – 120 VAC, 50 – 60 Hz
EU, UK, AU, CN	200 – 240 VAC, 50 – 60 Hz
External Power Supply AC Connector	2-pin IEC 250 VAC
Operating Temperature	0° – 40°C 32° – 104°F
External Power Supply
US Adapter (18.5 VAC x 2, 350 mA, US)	P/N 0028090-00
EU Adapter (18.5 VAC x 2, 350 mA, EU)	P/N 0028090-01
JP Adapter (18.5 VAC x 2, 350 mA, JP)	P/N 0028090-02
UK Adapter (18.5 VAC x 2, 350 mA, UK)	P/N 0028090-03
AU Adapter (18.5 VAC x 2, 350 mA, AU)	P/N 0028090-04
CN Adapter (18.5 VAC x 2, 350 mA, CN)	P/N 0028090-05
Physical Properties
Height	10.7 in/273 mm
Depth	1.8 in/47 mm
Width	8.9 in / 227 mm
Weight (with power supply)	5.5 lb/2.5 kg
Weight (without power supply)	4.5 lb / 2.0 kg
Physical Properties (packaged product)
Height	4.3 in/109 mm
Depth	15.8 in/401 mm
Width	12.1 in/307 mm
Weight	6.8 lb/3.1 kg
Options
802VLZ4 Mixer Bag	P/N 2036809-09
