Description
8-channel compact mixer

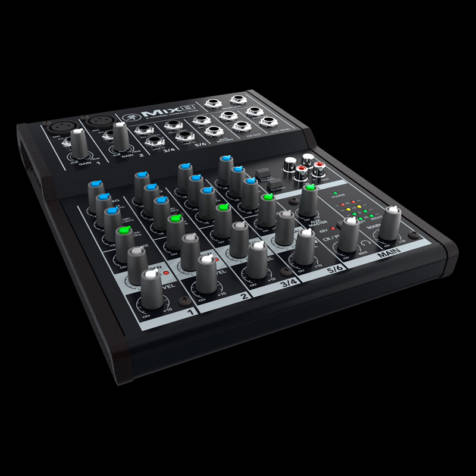

Take control of your audio with the Mackie Mix8 compact mixer. Despite its small size, this versatile 8-channel mixer is loaded with premium features, including two microphone inputs with our studio-quality preamps, a 3-band EQ for each channel, an RCA I/O path for recording and more.
WOULDN’T YOU RATHER MIX ON A MACKIE?
Mackie has brought professional-level compact mixers to the masses since we debuted the LM-1602 in 1988. The Mix8 is an 8-channel mixer that expands on our heritage of designing great gear that isn’t unattainable for real working musicians and content creators. Featuring our low-noise preamps, a 3-band EQ and aux sends for each channel, an RCA I/O path for recording and separate volume controls for headphones and the main monitor, the Mix8 is a versatile workhorse for creators who need more control over their audio.
5, 8 and 12-channel compact mixers with proven high-headroom, low-noise performance
Mic/line inputs with studio-level audio quality
- Multi-band EQ with clean, precise tone shaping
- Pan, level and overload indication
- Phantom power for studio condenser mics
- Low cut filter (75 Hz) [Mix12FX]
Multiple stereo 1/4″ line inputs
- +4/-10 dB and balance operation [Mix12FX]
One aux send with stereo 1/4″ returns [Mix8]
12 great-sounding integrated effects including reverbs, choruses and delays [Mix12FX]
Dedicated stereo RCA inputs/outputs for playback or recording
Main L/R outputs
Headphone output
Stereo control room outputs [Mix8 / Mix12FX]
Rugged, reliable design built to last
Extremely compact and portable
Applications:
Live sound mixing, rehearsal spaces, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications and many, many more.
Specifications
Noise Characteristics
- (20 Hz – 20 kHz bandwidth, 150Ω source impedance)
- All outputs, master levels and channel levels off: -100 dBu
- All outputs, master levels unity, all channel levels off: -90 dBu
- All outputs, master levels unity, 1 channel level unity: -85 dBu
Distortion (THD+N)
- (1 kHz, 20 Hz – 20 kHz bandwidth)
- Mic Input to Main Output: <0.01% @+4 dBu output
Attenuation and Crosstalk
- (20 Hz-20 kHz bandwidth)
- Inputs to Outputs @ 1 kHz: -85 dB
- Main Mix Off @ 1 kHz: -80 dB
Frequency Response
- Mic input to any output (gain @ unity): +0, -1 dB, 20 Hz to 30 kHz
Equivalent Input Noise (EIN)
- (Mic in to Insert Send out, max gain.)
- 150Ω termination: -125 dBu [Mix5, Mix8], -122 dBu [Mix12FX]
Common Mode Rejection Ratio (CMRR)
- (Mic in to Insert Send out, max gain.)
- 1 kHz: better than 70 dB
Maximum Levels
- Mic inputs (XLR): +18 dBu [Mix5], +19 dBu
- Aux return in: +16 dBu [Mix8]
- All other inputs: +21 dBu
- All outputs: +21 dBu
Impedances
- Mic in: 2 kΩ [Mix5], 3.8 kΩ [Mix8, Mix12FX]
- All other inputs: 10 kΩ or greater
- Tape out: 1 kΩ
- Phones out: 22Ω
- All other outputs: 120Ω unbalanced, 240Ω balanced
EQ
- High Shelving: ±15 dB @ 12 kHz
- Mid Peaking: ±15 dB @ 2.5 kHz
- Low Shelving: ±15 dB @ 80 Hz
- Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz
AC Power Requirements
Input:
- AC120V~, 60 Hz [US]
- AC230-240V~, 50/60 Hz [EU]
- AC220-230V~, 50/60 Hz [UK]
- AC220-240V~, 50/60 Hz [AU]
- AC220V~, 50 Hz [CN]
- AC127V~, 60 Hz [BZ]
Output:
- AC18V~ 600mA [US]
- (AC9V~ 300mA)x2 [EU]
- (AC9V~ 300mA)x2 [UK]
- (AC9V~ 300mA)x2 [AU]
- AC18V~ 600mA [CN]
- AC18V~ 600mA [BZ]
Operating Temperature: 0° – 40°C, 32° – 104°F
Size and weight
- Height: 3.3 in / 84 mm
- Width: 9.1 in / 231 mm
- Depth: 13.3 in / 338 mm
- Weight: 3.0 lb / 1.4 kg
