Description
FLEXIBILITY WHERE IT COUNTS

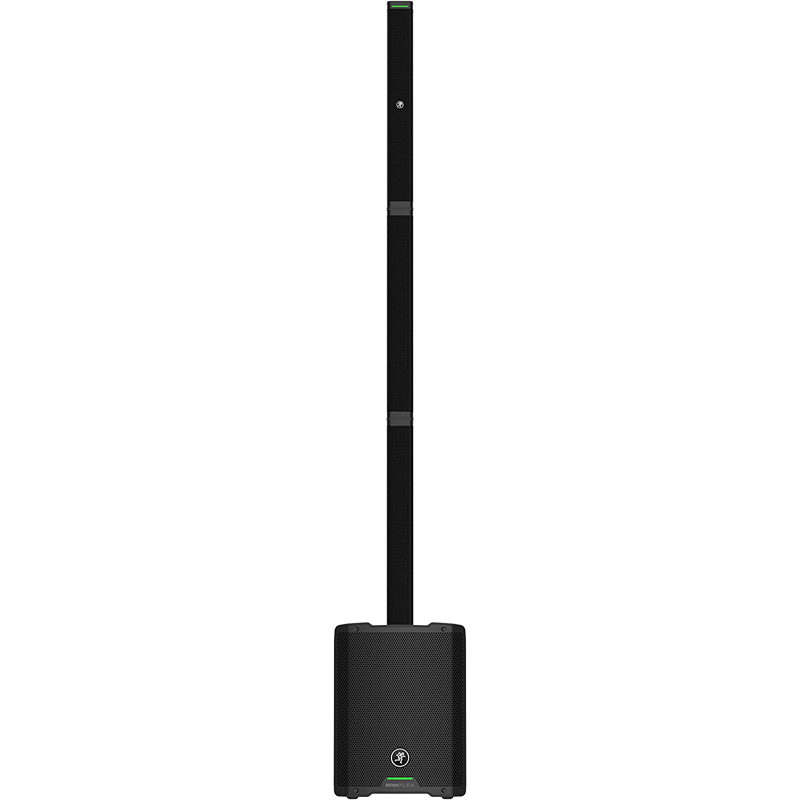

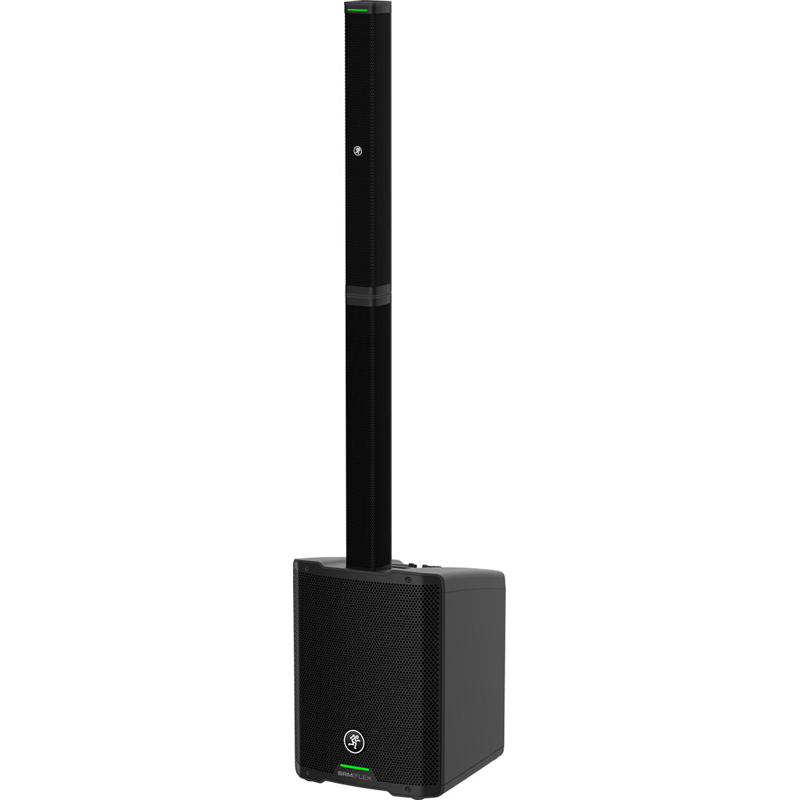

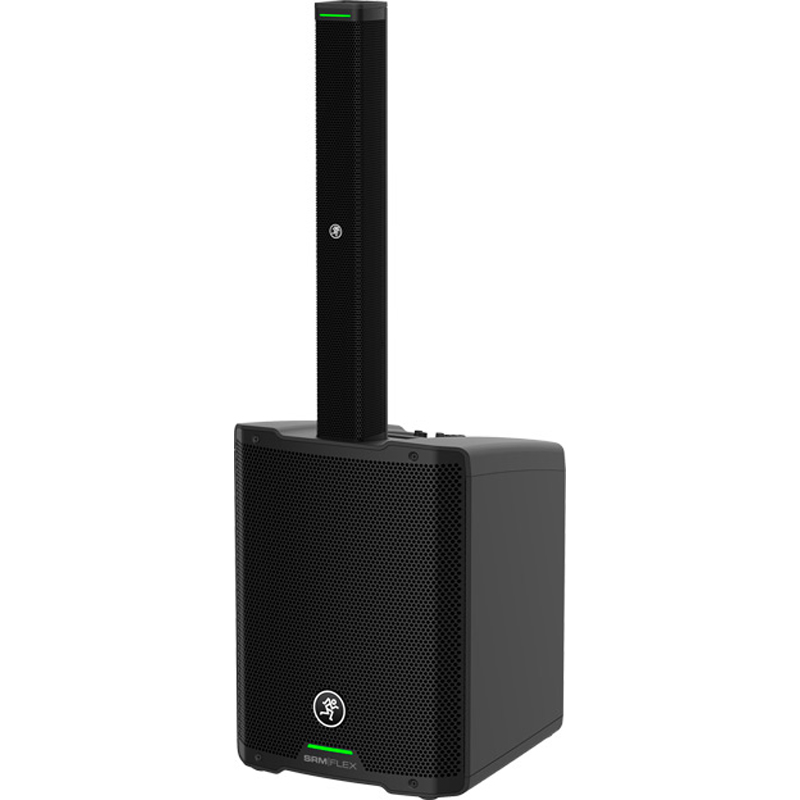

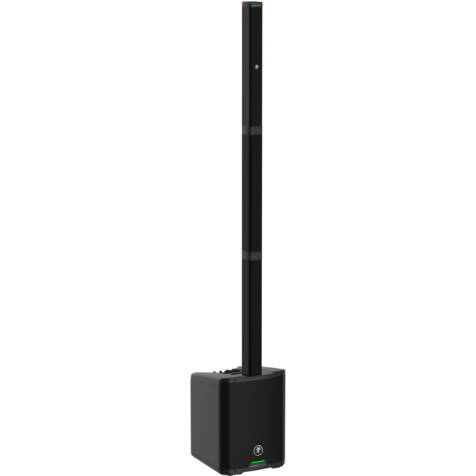

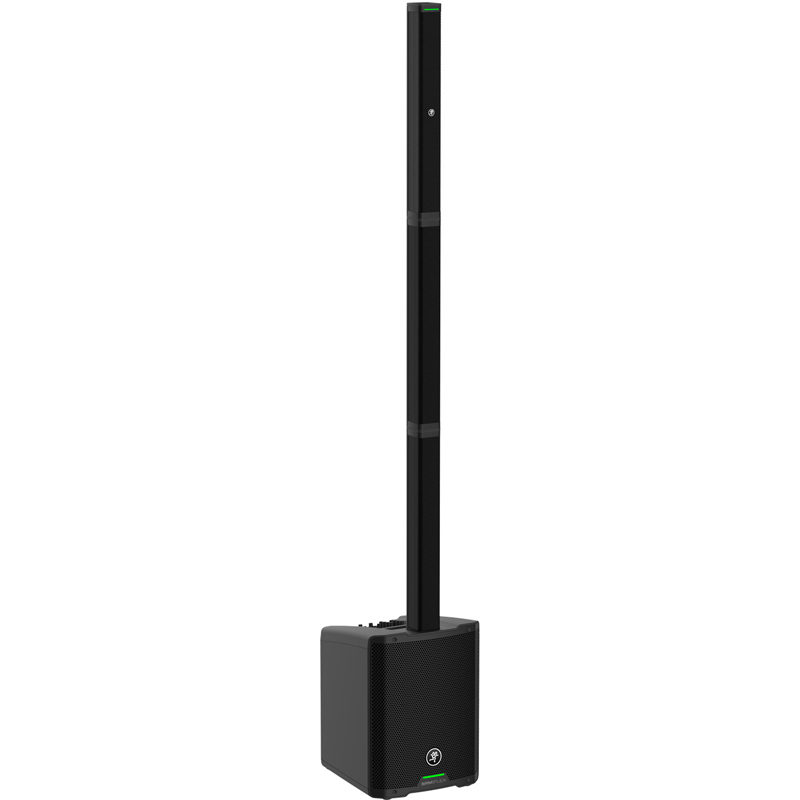

The ultra-portable Mackie SRM-Flex Portable Column PA System features 1300W of power and a custom wide-dispersion array ensuring plenty of headroom for crystal-clear, room-filling sound. The built-in 6-channel digital mixer offers full control flexibility via physical knobs or wirelessly on your phone via the SRM-Flex Connect app on iOS and Android. You can even stream music or backing tracks via any Bluetooth enabled device.
The Mackie SRM-Flex Portable Column PA System features a compact, lightweight form factor, signature SRM Series sound quality, and intuitive Mackie mixer design for maximum flexibility.
With a staggering 1300W of power, custom 6-driver wide-dispersion array, and 10″ subwoofer, SRM-Flex has plenty of headroom to ensure crystal-clear, room-filling sound.
The built-in 6-channel digital mixer makes it easy to dial in your optimal sound in minutes with full control over levels, EQ, reverb, and more via physical knobs or wirelessly on your phone. You can even stream music or backing tracks via any Bluetooth enabled device. Perfect for solo acts, bands, corporate events, schools, and more.

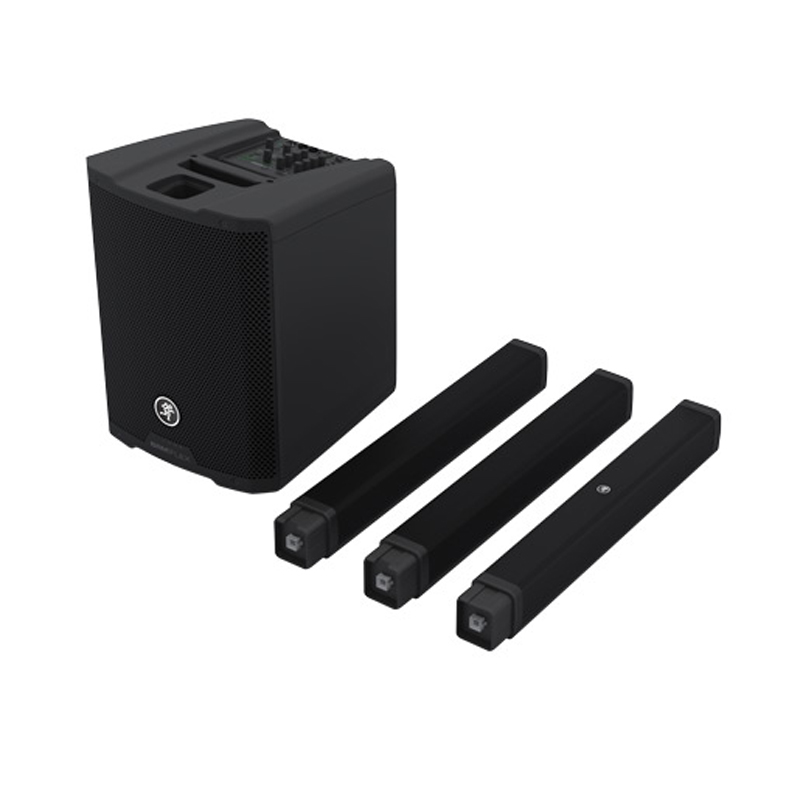

Lightweight, Small Footprint, Built-Like-A-Tank
- Lightweight all-in-one design offers everything you need for your gig
- Load in to your next gig and be set up in minutes
- Fits just about anywhere and disappears in any room
- Rugged design is built to last
Proven SRM Sound with Ultra-Wide Coverage
- 1300W of power delivers maximum headroom and top performance
- 6-driver wide-dispersion array and 10″ subwoofer provide crystal-clear, room-filling sound
- Adjustable height directs the sound at ear level for optimal coverage and clarity
- For audiences of up to 100 people

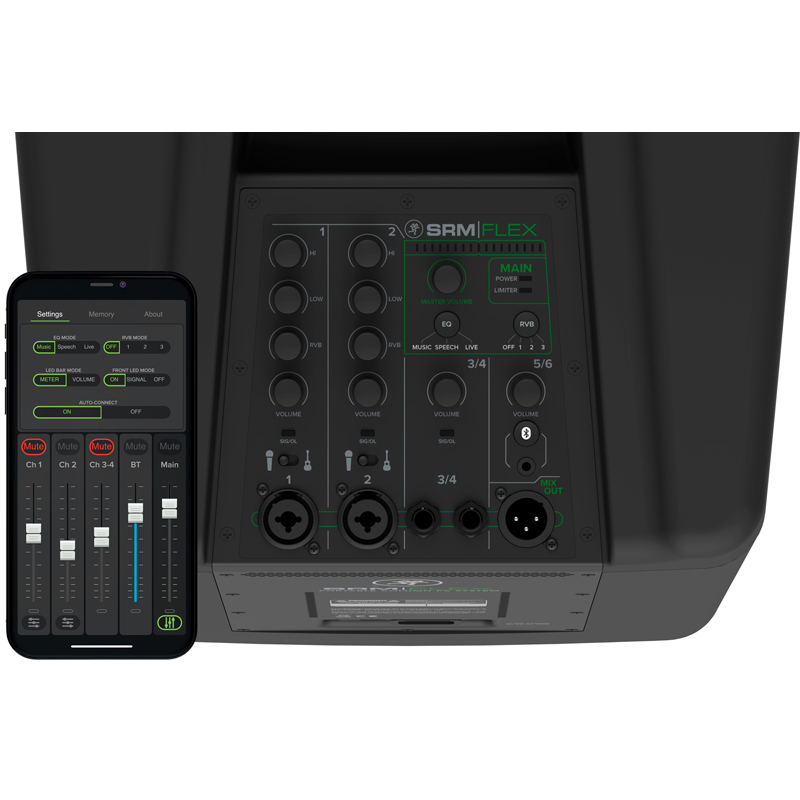

Complete Wireless Control with SRM-Flex Connect
- Pair your smartphone and get wireless control over everything from channel levels to EQ, system presets, and more
- Mount your phone to your mic stand for on the fly adjustments or have a dedicated engineer mix you from the audience
- Compatible with iOS and Android devices
Stream Your Music
- Need to play some break music or a backing track? No need to worry about the cable. Stream music straight from your phone or any Bluetooth enabled device.

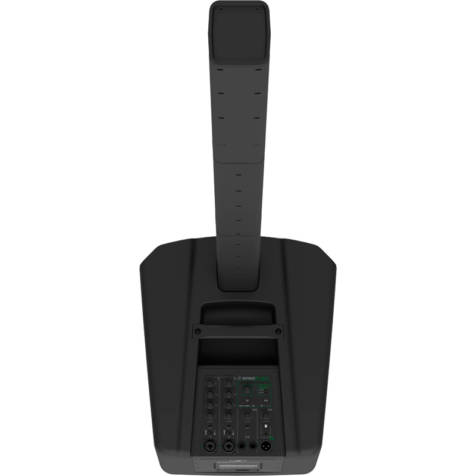

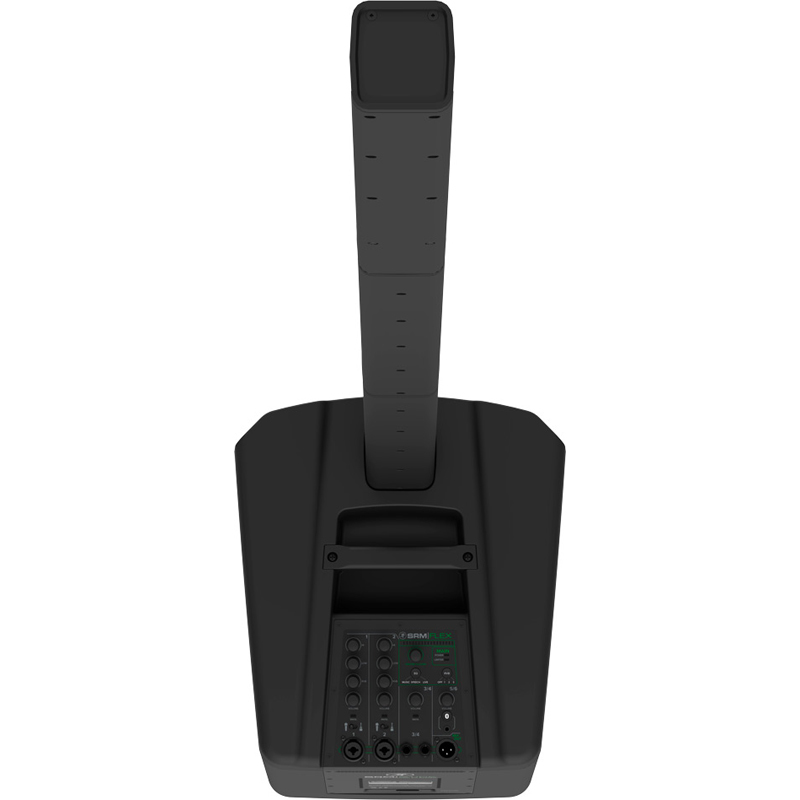

Built-in 6-Channel Digital Mixer
- The built-in 6-channel digital mixer has inputs for mics, instruments, and media players
- Professional XLR out allows for connection to an additional SRM-Flex or front-of-house mixer
Dial in Your Sound
- 2-Band EQ on channels 1 and 2 allow you to easily adjust the tone of your mic, guitar, keyboard, or anything else you plug in to get the sound just right
- Application voicing modes tailor the system to your application and venue. Choose between Music, Speech, and Live.
Find the Perfect Reverb
- Put the finishing touch on your sound with a choice of not just 1, but 3 great-sounding reverbs

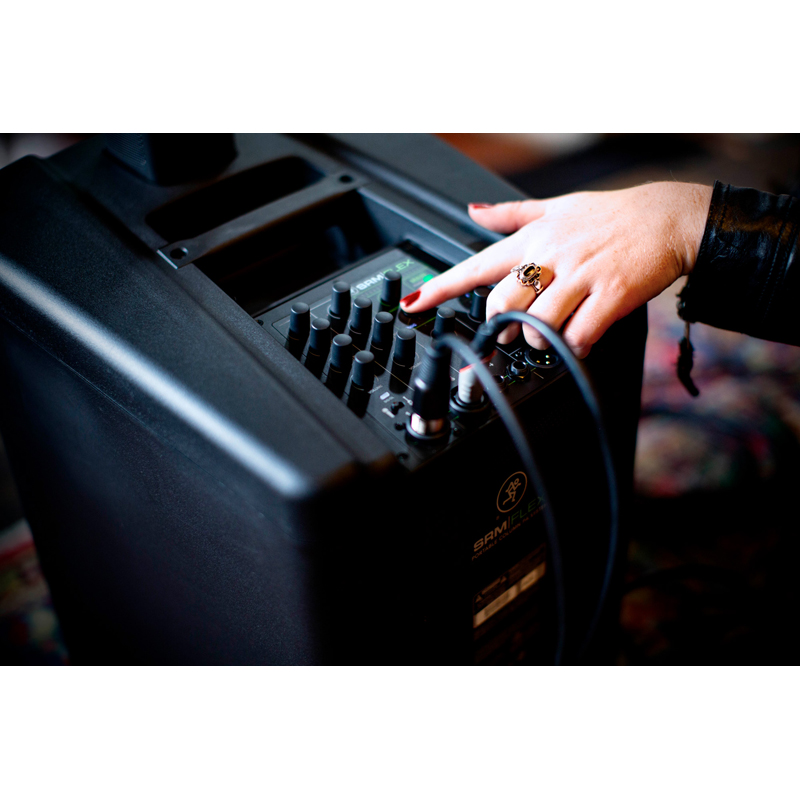

Zero-Fuss Physical Controls
- With tactile knobs for every critical function and adjustment, you can get to what you need without the hassle of navigating menus on a small screen

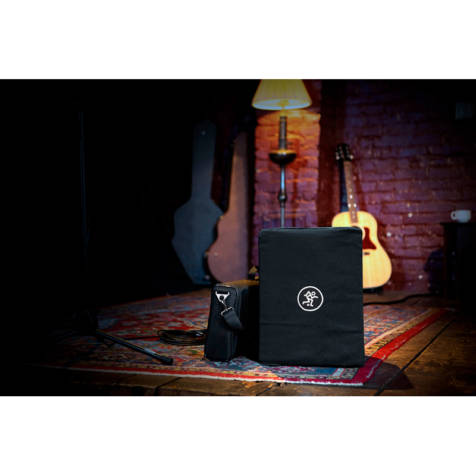

Included Accessories
- Carry bag for array module and extenders
- Protective cover for subwoofer/mixer module
Specifications
Acoustic Performance
- Frequency Range (-10 dB): 40 Hz – 20 kHz
- Frequency Range (-3 dB): 50 Hz – 20 kHz
- Horizontal Coverage: 90°
- Vertical Coverage: 50°
- Maximum SPL Peak: 118 dB
Transducers

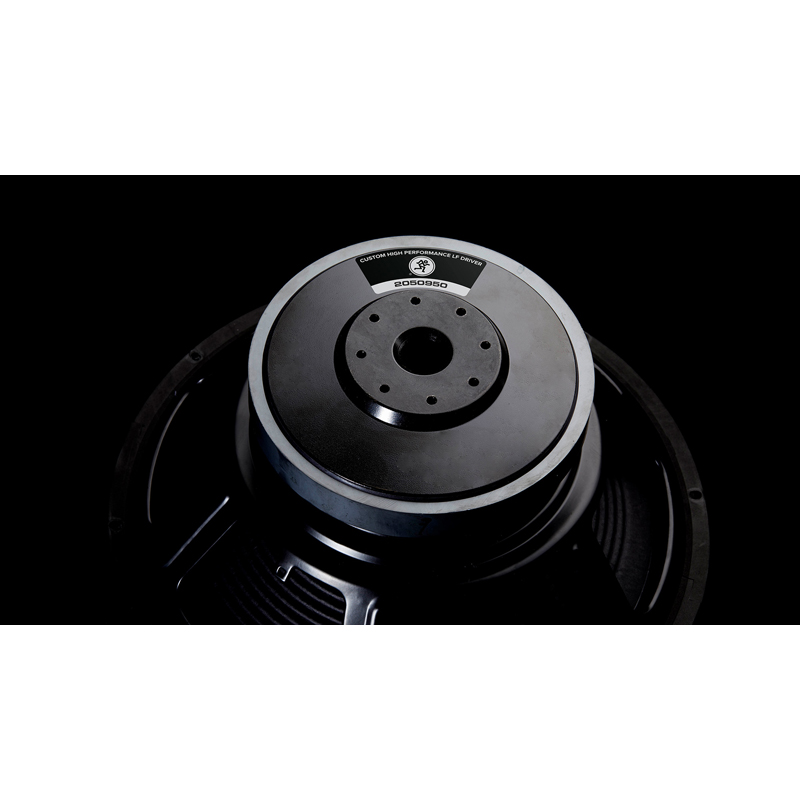

- Low Frequency: 10 in / 254 mm, with ferrite
- High Frequency: 6x 2.0 in / 51 mm, silk dome tweeters
Power Amplifiers
- System Power Amplification Rated Power: 1300 watts peak
- Low Frequency Power Amplifier
- Rated Power: 1000 watts peak
- Rated THD: <1%
- Cooling: Active
- Design: Class D
- High Frequency Power Amplifier
- Rated Power: 300 watts peak
- Rated THD: <1%
- Cooling: Active
- Design: Class D
System Processing
- Voicing: 3 speaker modes
- Reverb: Off, 1 (short), 2 (medium), 3 (long)
Equalization
- Low: +5 / -15 dB @ 90 Hz
- High: +5 / -15 dB @ 6.0 kHz
Input / Output
- Input Type: 2x Female XLR Balanced, 4x 1/4″ Balanced / Unbalanced, 1/4″ Stereo
- Mic-Line Impedance: 8 kΩ balanced
- 1/4″ Hi-Z Impedance: 1 MΩ unbalanced
- Mix Out: Male XLR Balanced
- Mix Out Impedance: 600 Ω balanced
Bluetooth Information
- Bluetooth Protocol: 4.2
- Bluetooth Function: Audio Streaming and User Interface Control
- Bluetooth Class: Class 1
Crossover Point
- Crossover Frequency 600 Hz (18 dB Butterworth)
Line Input Power
- Detachable line cord: ~100 – 240VAC, 50 – 60 Hz, 110W
- AC Connector: 3-Pin IEC 250VAC, 10 A male
- Power Supply Type: Switchmode
Safety Features
- Input Protection: Peak and RMS limiting, power supply and amplifier, thermal protection
- Status Info: Input and output levels, reverb levels, sig / OL, EQ settings, speaker mode
Construction Features
- Basic Design: Asymmetrical
- Enclosure Material: Polypropylene
- Enclosure Finish: Black Polyurea
- Grille Material: Perforated steel
- Grille Finish: Powder-coated black
- Handles: One on the top panel of the base station
- Display LEDs
- Front: Defeatable power
- Top: Power, Limiter, Bluetooth
- Operating Temperature: 0 – 40 °C, 32 – 104 °F
Physical Properties (product)
- Base Station:
- Height: 17.0 in / 432 mm
- Width: 13.0 in / 330 mm
- Depth: 14.2 in / 361 mm
- Height (each): 22.5 in / 572 mm
- Height (total): 67.5 in / 1715 mm
- Height (total w/base): 79.0 in / 2007 mm
- Width: 2.8 in / 71 mm
- Depth: 3.0 in / 76 mm
- Weight (total): 29.6 lb / 13.4 kg
High Frequency Section:
