Description

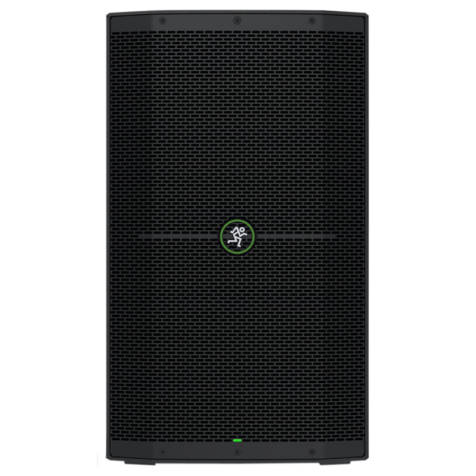

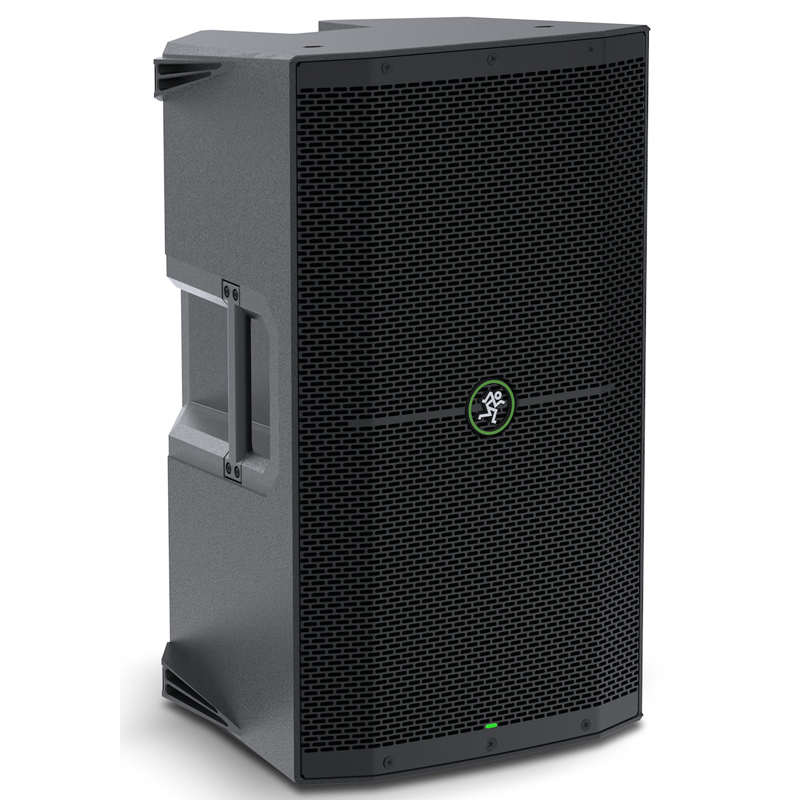

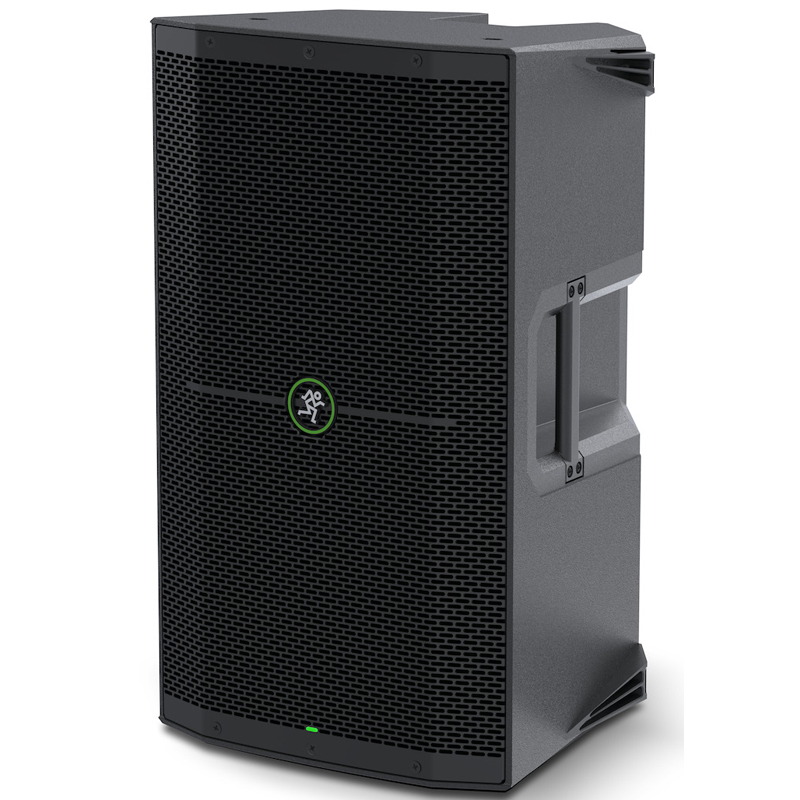

12″ 1400W Powered Loudspeaker
The lightweight Thump212 12″ 1400W loudspeaker features proven sound quality in an all-new design with a built-in Feedback Eliminator and Music Ducking mode. Lightweight and Built-like-a-tank, Thump212 is the ultimate compact loudspeaker for mobile PA systems. DJs. bars, and more.
PERFORMANCE FOR A NEW GENERATION
Thump212 is ready to take on your most demanding performances. Completely redesigned from the ground up, Thump212 has beefier drivers, a 1400W amplifier, and powerful tools to make your next gig easier than ever. Packed with incredibly useful features, Thump212 makes gigs run smoother with feedback elimination and music ducking built right in. And with dual TRS / XLR inputs plus a stereo 1/8″ aux input, you can plug in all of your gear without odd cables and adapters.
NO MIXER? NO PROBLEM

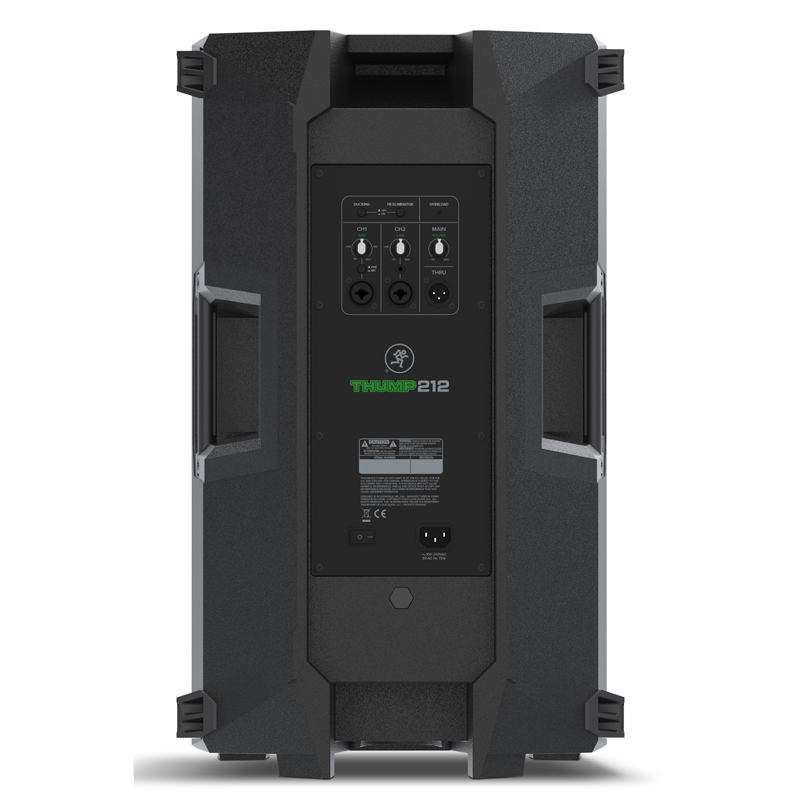

Connect any combination of audio sources, including guitar, microphone, keyboard, or DJ mixer. The built-in 2-channel mixer on the rear panel has two combo input jacks for easy plug-and-play plus an 1/8″ stereo line in for connecting the audio output from a smartphone or media player.
1400W ultra-efficient Class-D amplifier
Built-Like-A-Tank to conquer every gig while lightweight for easy loading
Frequency response: 47 Hz – 23 kHz [Thump212]
Frequency response: 40 Hz – 20 kHz [Thump215]
Max SPL: 128 dB [Thump212]
Max SPL: 129 dB [Thump215]
Flexible I/O
- Ch.1 features an XLR/TRS input that accepts mic or line signals
- Ch.2 features an XLR/TRS line input plus stereo 1/8″ input
- Thru output contains audio from both input channels
15″ high-performance woofer [Thump215]
Built-in Feedback Eliminator reduces squeals and out of control rumble
Music Ducking mode automatically reduces the level of Ch. 2 when Ch. 1 receives signal
Universal Power Supply (100-240VAC)
Weight:
- 27.6 lb / 12.5 kg [Thump212]
- 32.6 lb / 14.8 kg [Thump215]
Dimensions:
- 24.4 x 14.0 x 14.0 in / 620 x 356 x 356 mm [Thump212]
- 27.4 x 17.3 x 14.0 in / 696 x 439 x 356 mm [Thump215]
Applications:
Singer-songwriters, announcement PA, karaoke, clubs / cafes, houses of worship, schools, small restaurants, outdoor events / barbeques, banquet halls, conference rooms, boardrooms, and many, many more.
Specifications
Acoustic Performance
- Frequency Response (-10 dB): 47 Hz – 23 kHz [Thump212], 40 Hz – 23 kHz [Thump215]
- Frequency Response (-3 dB): 54 Hz – 20 kHz [Thump212], 47 Hz – 20 kHz [Thump215]
- Horizontal Coverage: 90°
- Vertical Coverage: 60°
- Maximum SPL Peak: 128 dB [Thump212], 129 dB [Thump215]

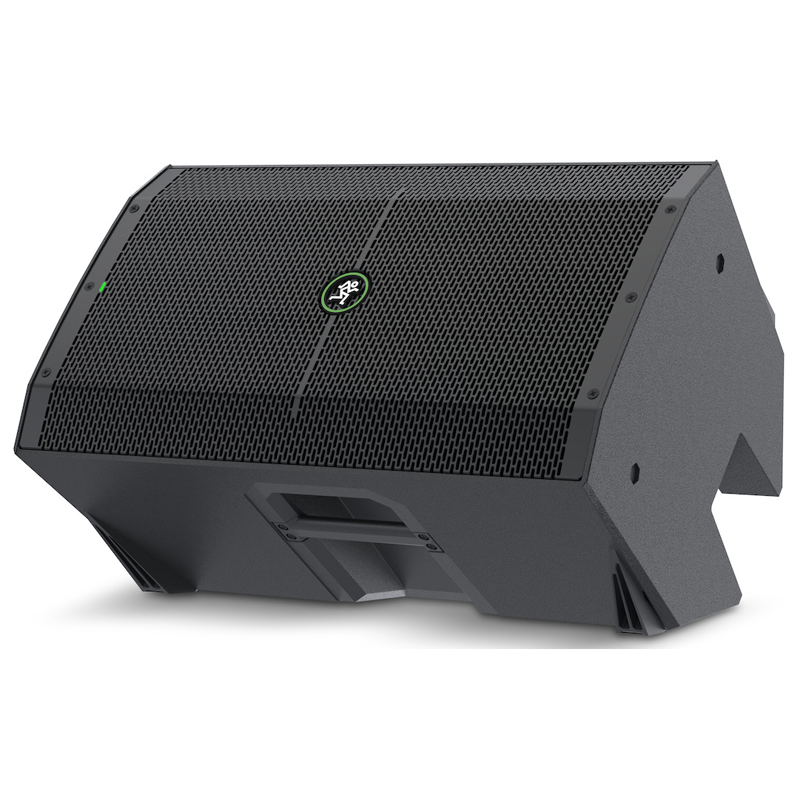

- Monitor Angle: 40°
Transducers
- Low Frequency: 12 in / 305 mm [Thump212], 15 in / 381 mm [Thump215] with ferrite
- High Frequency: 1.0 in / 25 mm polymer compression driver
Power Amplifiers
- System Power Amplification
- Rated Power: 1400 watts peak
- Low Frequency Power Amplifier
- Rated Power: 1200 watts peak
- Rated THD: <1%
- Cooling: Convection
- Design: Class D
- High Frequency Power Amplifier
- Rated Power: 200 watts peak
- Rated THD: <1%
- Cooling: Convection
- Design: Class D
Input / Output
- Input Type: 2x Female XLR – 1/4″ Balanced TRS combo jack
- Mic/Line: Impedance 10 kΩ Balanced
- 1/8″ Line: Impedance 10 k Balanced
- Thru Out: Male XLR Balanced
- Thru Out Impedance: 300 Ω Balanced
Electronic Crossover
- Crossover Frequency: 2.1 kHz
Line Input Power
- Detachable line cord: 100-240V~, 50-60 Hz, 75W
- AC Connector: 3-pin IEC 250 VAC, 10 A male
- Power Supply Type: Switchmode
Safety Features
- Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection
- Feedback Eliminator: On / Off
- Display LED: Rear panel signal / overload
Mounting Methods:
- Floor mount, pole mount via the built-in socket on the bottom of the cabinet [Be sure the pole is capable of supporting the weight of the loudspeaker].
- There are no rigging points and they are NOT suitable for rigging. Do not suspend a Thump loudspeaker by its handles
