Description

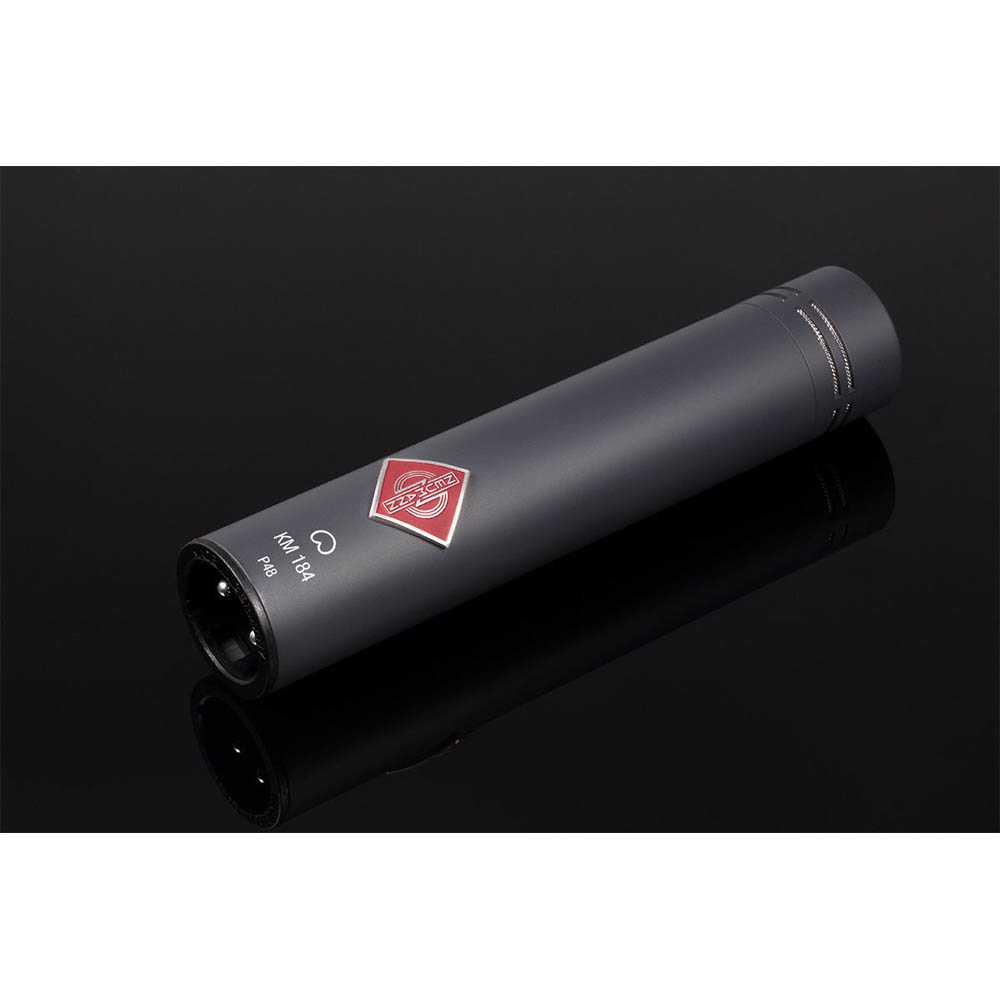

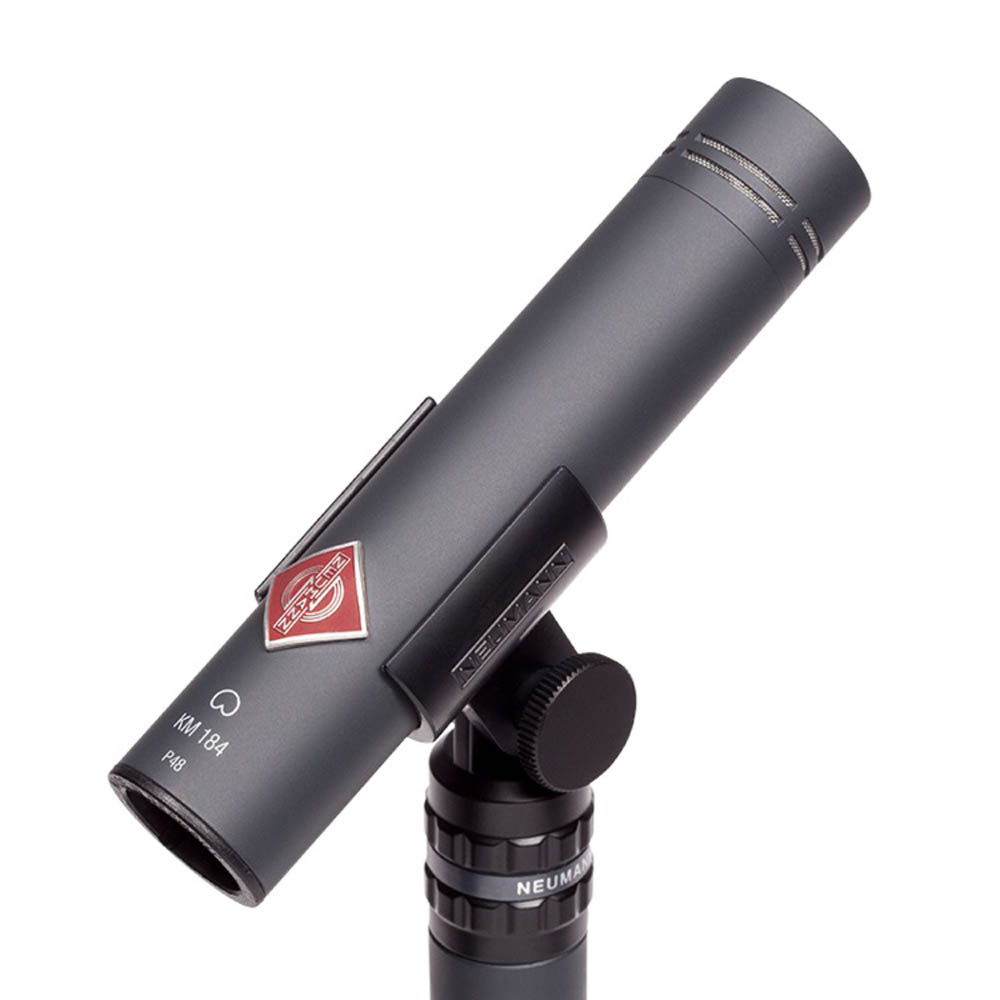

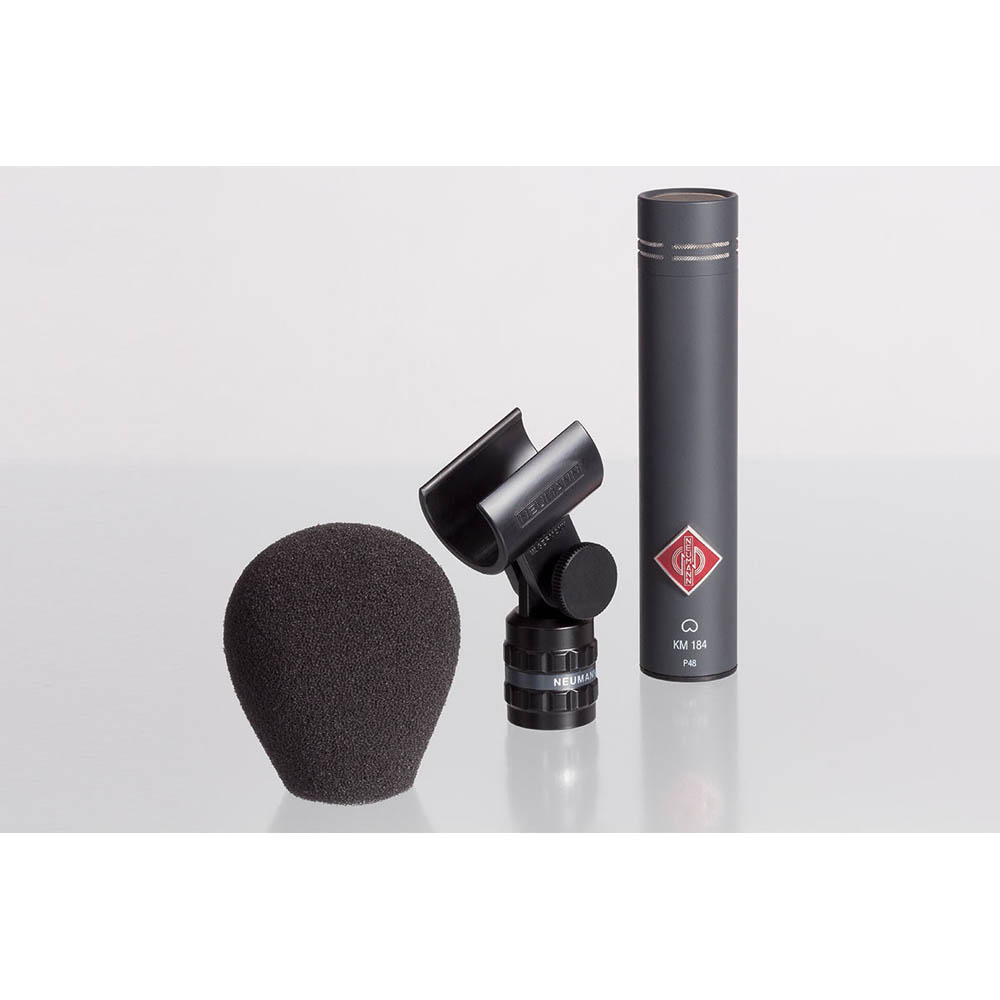

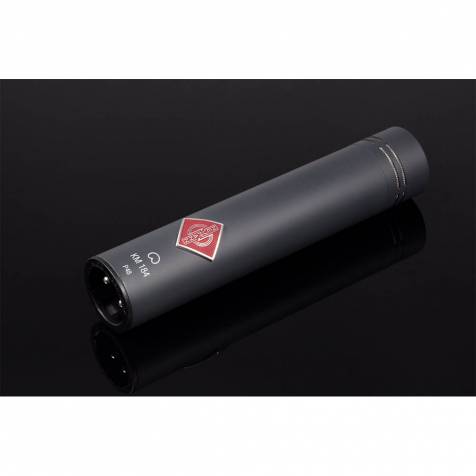

KM 184 MT
Experienced users often describe the sound of our small diaphragm microphone as fresh and vivid. This is among other factors due to a slight treble lift around 9 kilohertz. The KM 184 is an experienced all-rounder, a mic for all seasons. It captures virtually any instrument with amazing complexity and depth of sound.
Another advantage: thanks to the extremely tight production tolerances, all KM184 microphones produce a very consistent sound. Therefore, they can easily be used as a stereo pair with exact spatial imaging for all stereo recording methods.
Applications
- Close and distant miking of instruments
- Stereo and live-recordings
- Spot microphone for solo and ensemble recordings
- Overhead (drums/percussion)
- Announcer microphone
Specifications :
- Acoustical operating principle: Pressure gradient transducer
- Directional pattern: cardioid
- Frequency range: 20 Hz to 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa
- Rated impedance: 50 ohms
- Rated load impedance: 1 kohms
- Equivalent noise level, CCIR1): 22 dB
- Equivalent noise level, A-weighted1): 13 dB-A
- Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
- Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81 dB
- Maximum SPL for THD 0.5%2): 138 dB
- Maximum output voltage: 10 dBu
- Supply voltage (P48, IEC 61938): 48 V ± 4 V
- Current consumption (P48, IEC 61938): 3.2 mA
- Matching connectors: XLR 3F
- Weight approx.: 80 g
- Diameter: 22 mm
- Length: 107 mm
