Description

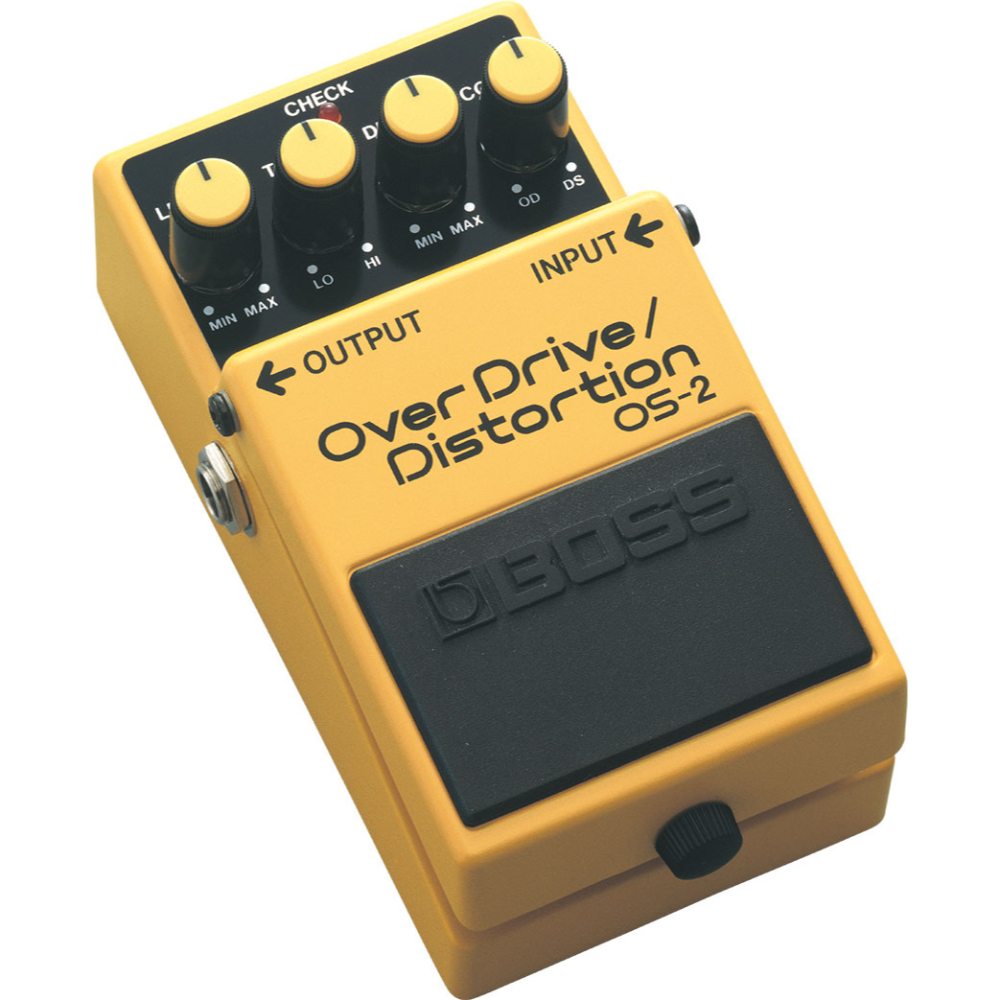

Distortion and Overdrive Together At Last!
The OS-2 gives players a choice of overdrive or distortion or lets them combine both–all in a single compact pedal. Its distortion maintains the subtle nuances of single-coil guitar pickups.
Specifications:
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls:
- COLOR knob
- DRIVE knob
- TONE knob
- LEVEL knob
- Pedal switch
- Indicator: CHECK indicator (Used for indication of check battery)
- Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DC IN jack
- Power Supply:
- Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
- AC adaptor (PSA series: sold separately)
- Current Draw: 12 mA
- Expected battery life under continuous use:
- Carbon: Approx. 38.0 hours
- Alkaline: Approx. 61.5 hours
- *These figures will vary depending on the actual conditions of use.
- Accessories:
- Owner’s manual
- Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
- Carbon-zinc battery (9 V, 6F22)
- Options (sold separately): AC adaptor: PSA series
- Width: 73 mm (2-7/8 inches)
- Depth: 129 mm (5-1/8 inches)
- Height: 59 mm (2-3/8 inches)
- Weight (including battery): 400 g (15 oz)
