Description

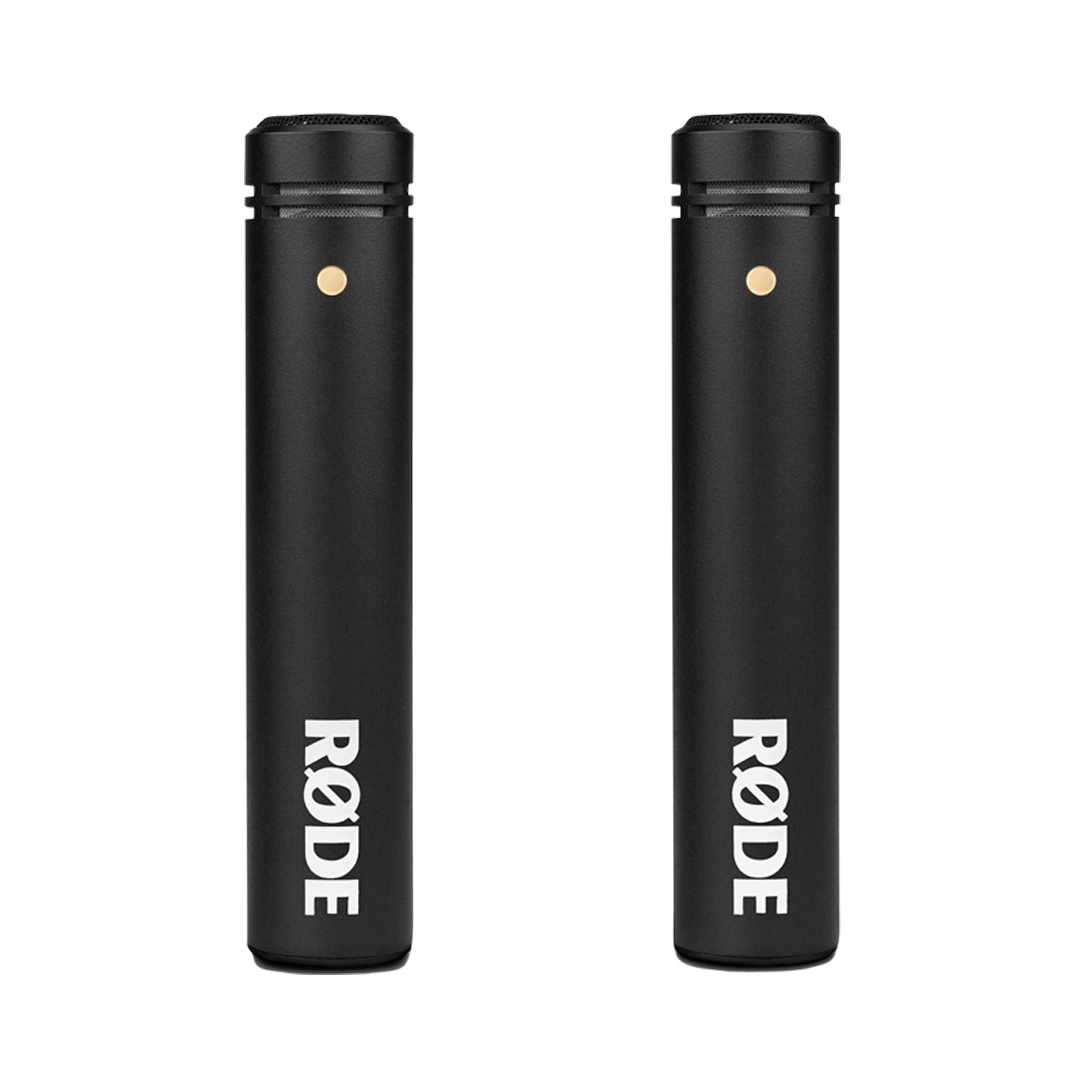

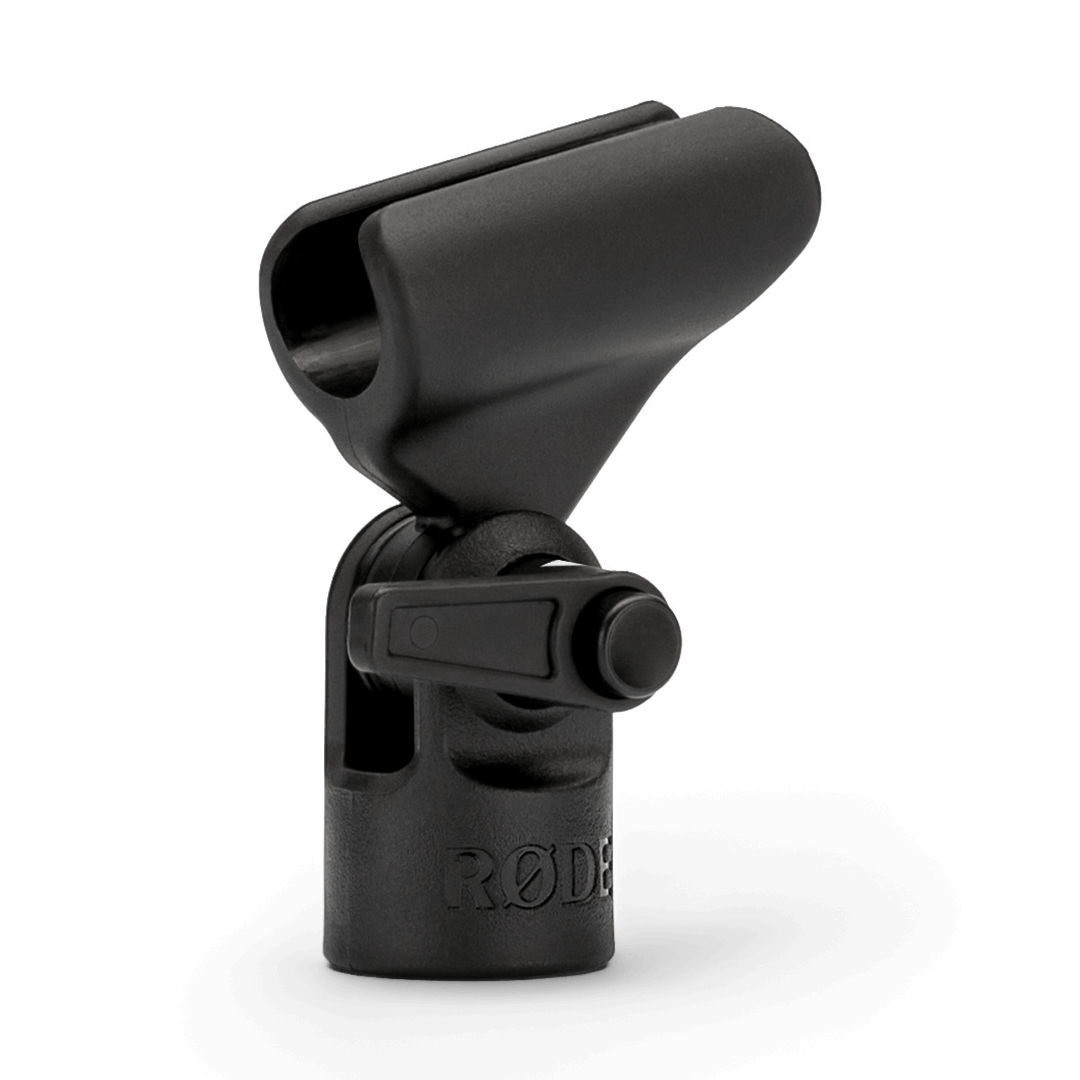

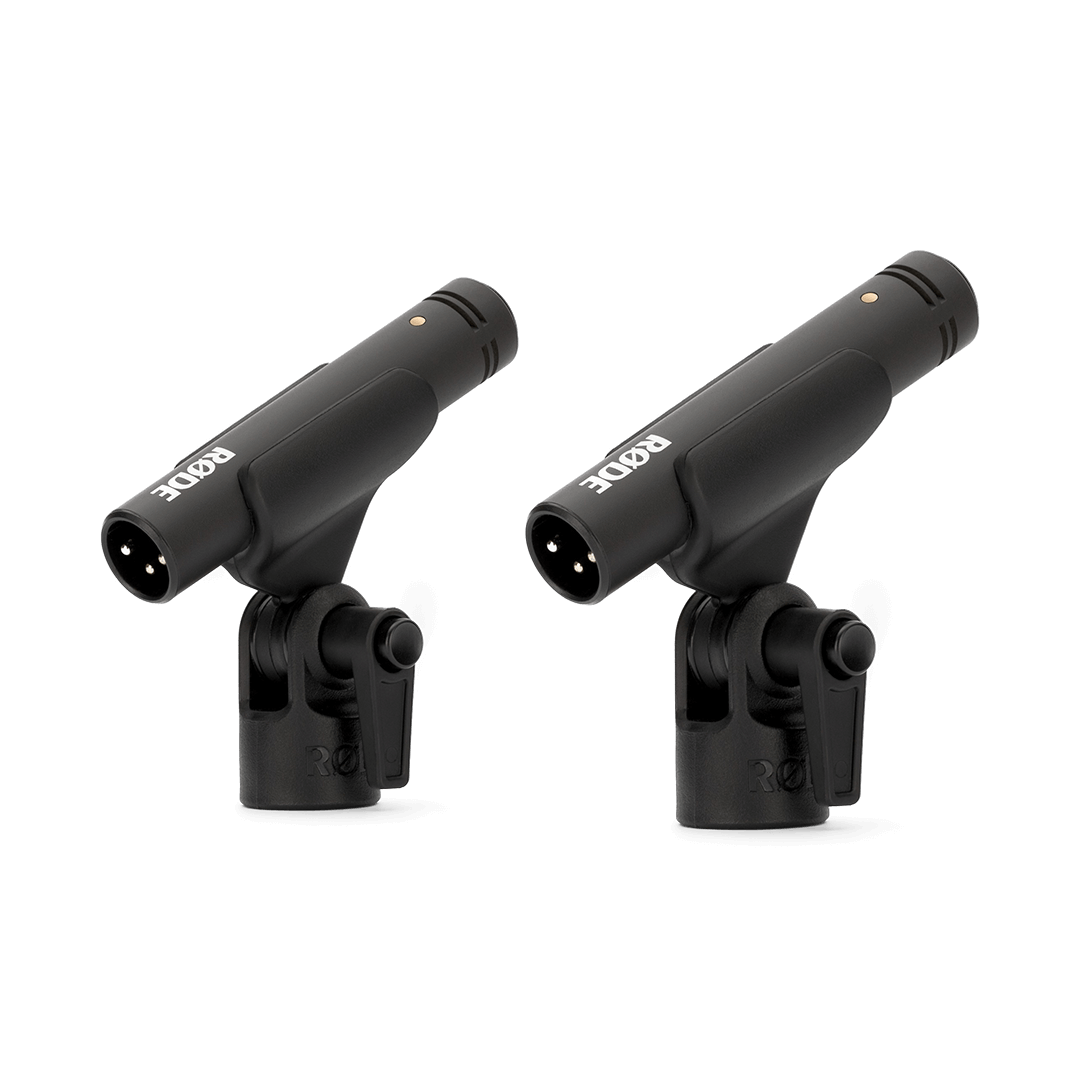

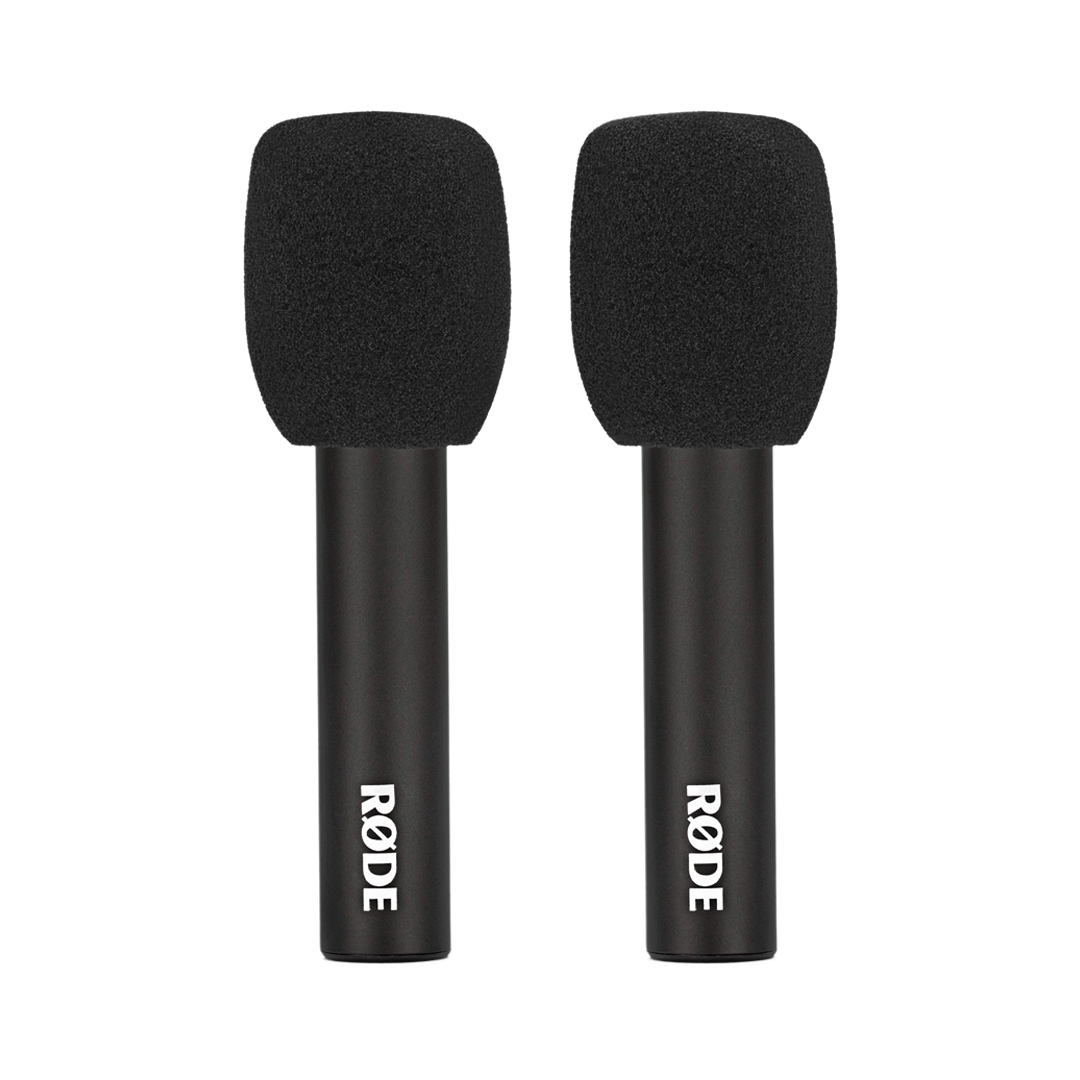

The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small-diaphragm (‘pencil’) condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones and is supplied with WS5 windshields and RM5 stand mounts.
What’s in the Box
1 x M5
2 x WS5
Specifications
Acoustic Principle
Pressure Gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Polar Pattern
Cardioid
Frequency Range
20Hz ~ 20kHz
Output Impedance
200Ω
Equivalent Noise
19 dBA SPL (as per IEC651)
Maximum Output Level
+13.5 dBu
Sensitivity
-34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz
Dynamic Range
121 dB SPL
Maximum SPL
140 dB SPL
Signal to Noise Ratio
75 dBA SPL (as per IEC651)
Power Requirements
P24 and P48
Output Connection
XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)
