Description
Start Your Drumming Journey the Right Way
The TD-02 series brings you the world’s finest entry-level electronic drumming experience—at an affordable price. Backed by decades of V-Drums innovation, these compact and highly expressive kits are far greater than the sum of their parts. Every element works together to form a complete musical foundation, from the world-class sounds and ultra-responsive pads to the onboard practice tools, robust hardware, and practical features for reducing noise when playing at home. And with expansion options such as Bluetooth® connectivity for mobile devices, upgradable pads, and more, you can easily grow your setup with genuine Roland accessories as needs evolve.

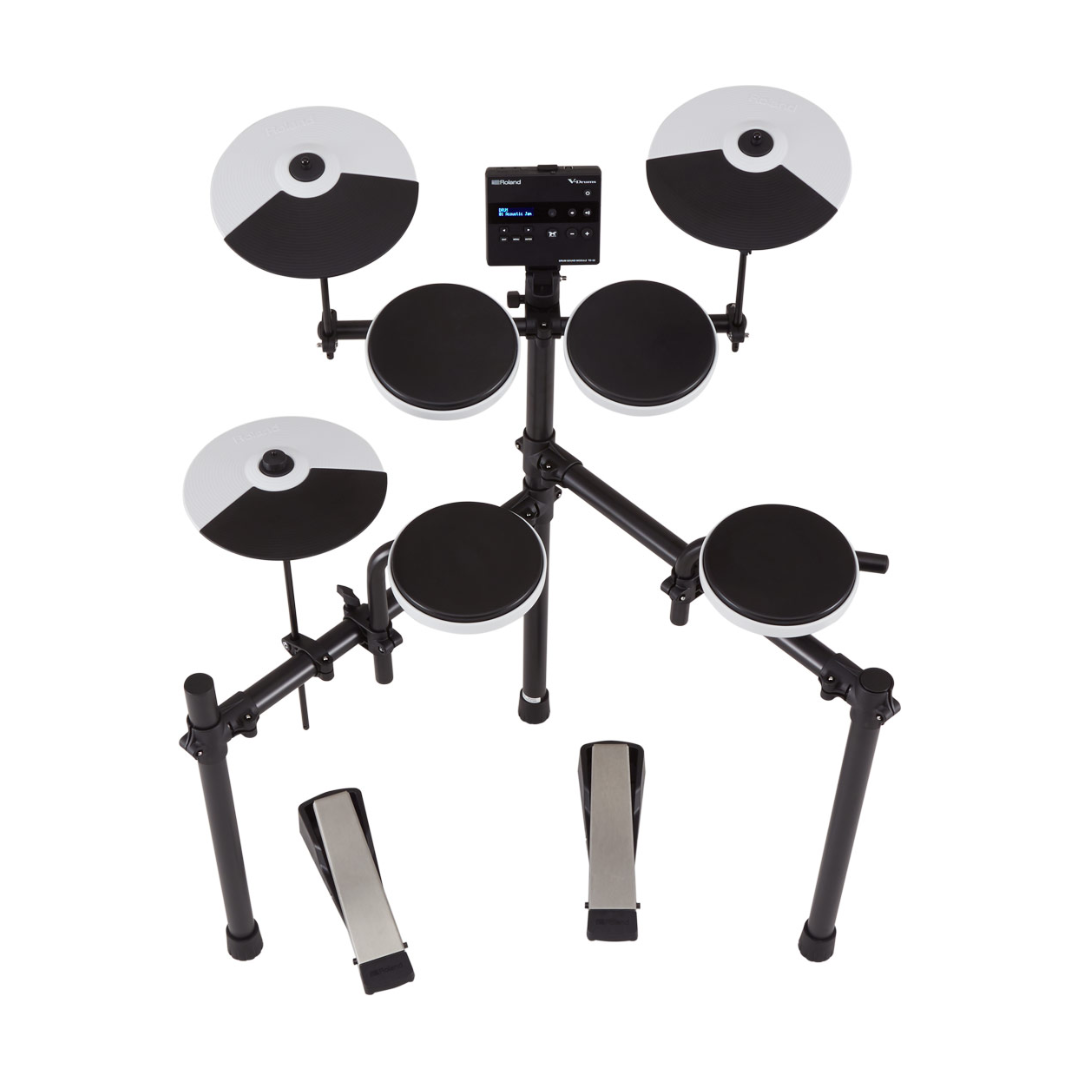

The TD-02K is the most compact kit in the series. It features a snare pad, three tom pads, a quiet beaterless kick pedal, three cymbal pads (hi-hat, crash, and ride), and a unique height-adjustable stand ideal for younger players.
Learn more about the high-quality playability, features, and expansion options of the TD-02 series.
- SPECIFICATIONS
- Kit Configuration (*1)
- Drum sound module: TD-02 x 1
Snare: PD-4 x 1
Tom: PD-4 x 3
Hi-Hat: CY-5 x 1
Hi-Hat control pedal: FD-1 x 1
Crash: CY-5 x 1
Ride: CY-5 x 1
Kick: KT-1 x 1
Drum Stand: MDS-MINI x 1 - Drum Kits
- 16
- Coach Functions (5 modes)
- Time Check (easy)
Time Check (hard)
Quiet Count
Auto Up/Down
Change-Up - Metronome
- Tempo (20–260)
Rhythm Type (5 types)
Sounds (15 types) - Display
- 16 Characters x 2 Lines LCD (with backlight)
- Connectors
- OUTPUT/PHONES Jack: Stereo Miniature Phone Type
MIX IN Jack: Stereo Miniature Phone Type
USB COMPUTER Port: USB B Type
TRIGGER INPUT Connector: DB-25 Type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Crash 2, Ride, Hi-Hat Control)
Bluetooth ADAPTOR SLOT: Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL) - USB COMPUTER
- Speed: Full-speed USB (Generic), Hi-Speed USB (Vendor)
Driver Mode: Generic, Vendor
Protocol: USB MIDI, USB Audio *2 - USB Audio
- Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 Channels
Playback: 2 Channels - Power Supply
- AC Adaptor (DC 12 V)
- Current Draw
- 200 mA
- Accessories
- Setup Guide
Leaflet “USING THE UNIT SAFELY”
AC Adaptor
Special Connection Cable
Drum Key - Options (sold separately)
- Additional Crash Cymbal (Crash 2): OP-TD1C
Snare: PDX-6, PDX-8 *3
Kick: KD Series
Personal Drum Monitor: PM series
V-Drums Accessory Package: DAP-2X
V-Drums Mat: TDM Series
Noise Eater: NE Series
Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL) - SIZE AND WEIGHT
- Width
- 1,000 mm
39-3/8 inches
(Including the drum throne) - Depth
- 1,100 mm
43-5/16 inches
(Including the drum throne) - Height
- 1,150 mm
45-5/16 inches
(Including the drum throne) - Weight
- 12.1 kg / 26 lbs 11 oz
- *1 Drum throne, drumsticks, and headphones are not included.
- *2 In order to use USB audio, switch to vendor mode and use the vendor driver.
- *3 The MDH-Standard is required to attach the PDX-6 and the PDX-8.
