Description
Overview
Great technology throughout the microphone system make this system the ideal singing partner. The feedback-resistant, super-cardioid microphone capsule reproduces vocals prominently and with a smooth response. The powerful hand-held transmitter shows all important information on its large graphic display. Its optional rechargeable batteries can be recharged just by placing the handheld in the optional charging station.
Features
- Sturdy metal housing (transmitter and receiver
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 32 compatible frequencies
- Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer – this delivers a good overview of monitoring and professional data management for multi-channel systems
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitter parameter from receiver
- User-friendly menu operation with more control options
- Illuminated graphic display, receiver also shows transmitter settings
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Easy-exchangeable microphone modules from evolution series
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement

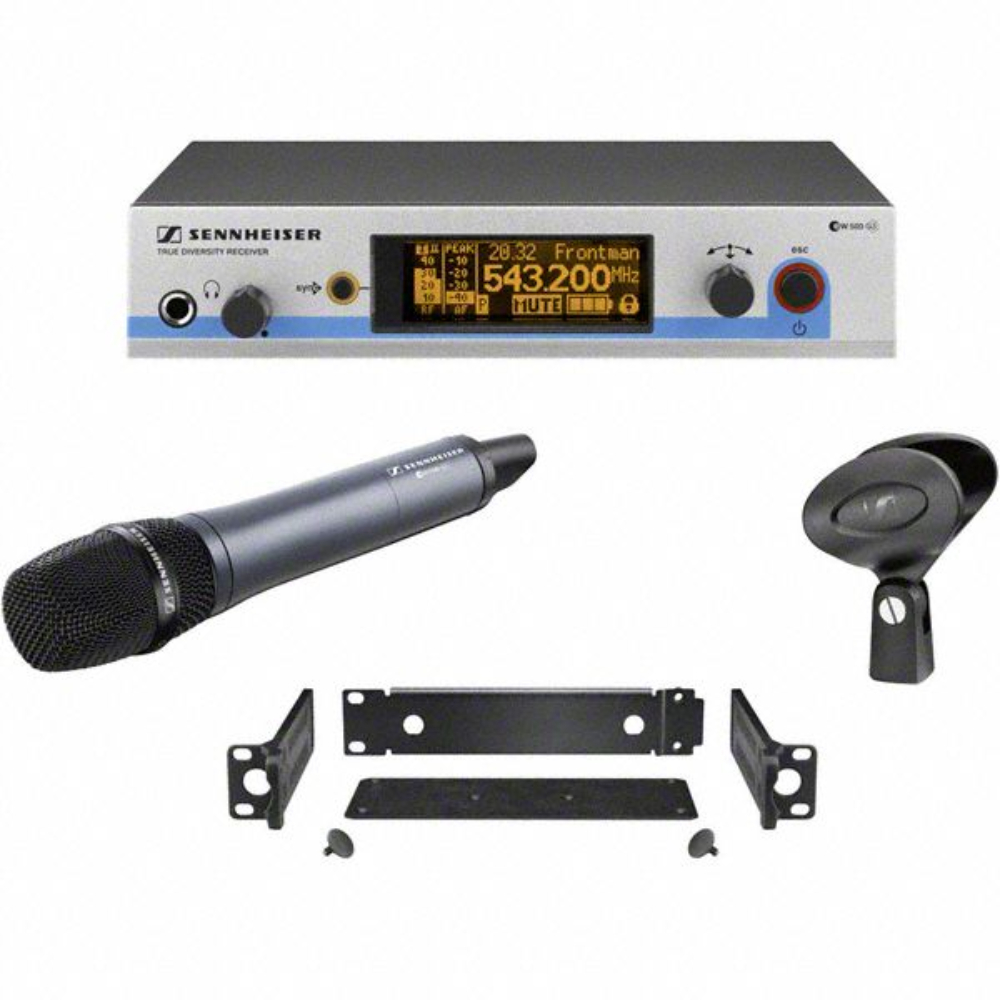

What’s in the box?
- 1 EM 500 G3 rack-mount receiver
- 1 SKM 500-945 G3 handheld transmitter (super-cardioid, dynamic)
- 1 MZQ 1 microphone clip
- 1 GA 3 rack mount
- 1 NT 2 power supply unit
- 2 antennas
- 2 AA size batteries
- Operating instructions
Technical Data
- Frequency range
-
- 780…822 MHz / Power supply unit EU / Germany
- 823…865 MHz / Power supply unit EU / Germany
- 606…648 MHz
- 780…822 MHz / Power supply unit UK
- 823…865 MHz / Power supply unit UK
- 516…558 MHz / Power supply unit US
- 626…668 MHz / Power supply unit US
- 734…776 MHz / Power supply unit US
- 566…608 MHz / Power supply unit US
- 925…937.5 MHz / Korea
- 516…558 MHz / Power supply unit EU
- 626…668 MHz / Power supply unit EU
- 734…776 MHz / Power supply unit EU
- 780…822 MHz / Power supply unit EU
- 823…865 MHz / Power supply unit EU
- 566…608 MHz / Power supply unit EU
-
- Dimensions Receiver: 212 x 202 x 43 mm
- Dimensions Transmitter: Ø 50 mm, L 265 mm
- Frequency response (Microphone) 80 – 18000 Hz
- Compander HDX
- Audio-XLR connector 6,3 mm
- Presets 32
- Microphone dynamic
- Sound pressure level (SPL) 154 dB(SPL) max.
- THD, total harmonic distortion < 0,9 %
- Weight Receiver: 980 g
- Weight Transmitter: 450 g
- AF sensitivity 1,6 mV/Pa
- Signal-to-noise ratio > 115 dB(A)
- RF frequency range 516…865 MHz
- RF output power 10/30 mW
- Transmission/receiving frequencies 1680
- Switching bandwidth 42 MHz
- Peak deviation +/- 48 kHz
- In compliance with ETS 300422 , ETS 300445 , CE , FCC
- Operating time Transmitter: > 8 h
- Antenna connector 2 BNC, 50 Ω
- Audio output level (balanced) XLR : +18 dBu max
- Audio output level (unbalanced) Jack: +10 dBu max
