Description

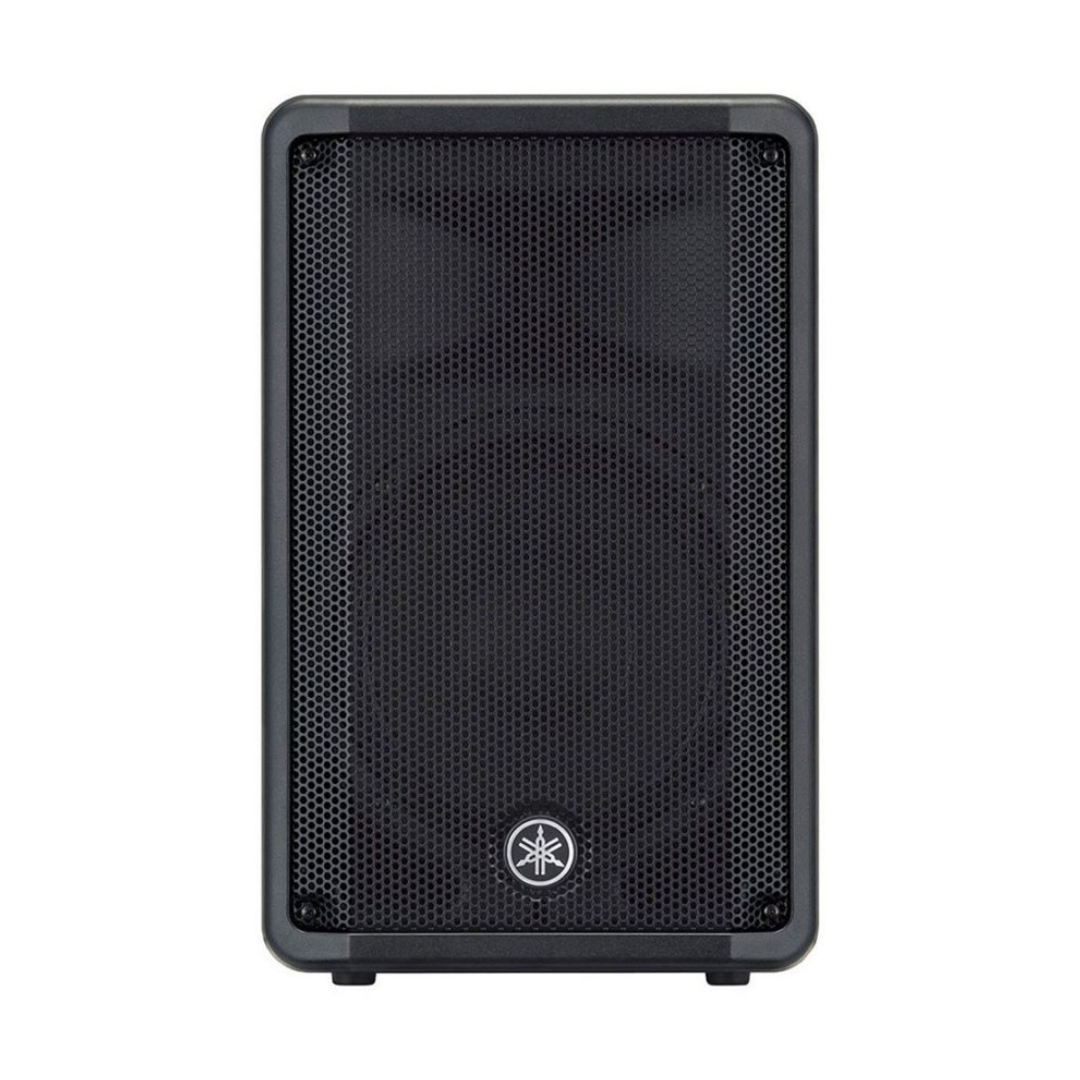

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that we’ve accrued over a long and storied history of making speakers of every kind.

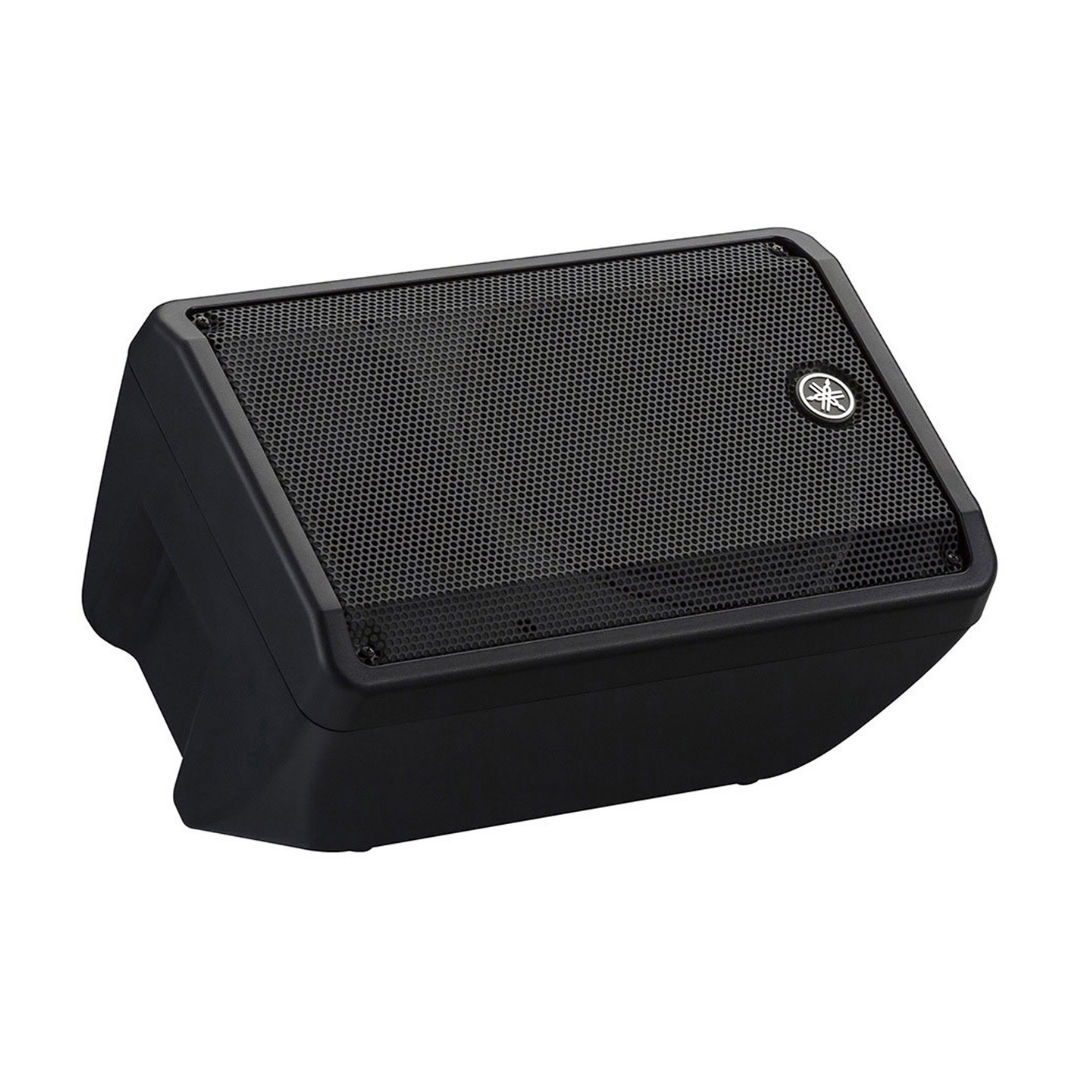

Combining a meticulous materials selection process, thorough customisation of the audio components, and a fresh, innovative approach to speaker design, our engineering team’s primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.
- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
- Rugged, Highly Portable Enclosure Design
- Simple Connectivity
- Versatility for a Variety of Applications
| Speaker type | 2-way Speaker, Bass-reflex Type | |
|---|---|---|
| Frequency range (-10dB) | 50 Hz – 20 kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | 10″ Cone, 2″ Voice Coil (Ferrite Magnet) |
| HF | 1″ Voice Coil, Compression Driver (Ferrite Magnet) | |
| Crossover | 2.8 kHz | |
| Power rating | NOISE | 175W |
| PGM | 350W | |
| PEAK | 700W | |
| Nominal impedance | 8Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 94dB SPL |
| Peak (Calculated) | 123 dB SPL | |
| I/O connectors | 1/4″ Phone x 1, speakON NL4MP x 1 | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Top x 1 | |
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | |
| Pole socket | Φ35 mm Bottom x 1 | |
| Dimensions | W | 308mm (12.1″) |
| H | 493mm (19.4″) | |
| D | 289mm (11.4″) | |
| Net weight | 9.4 kg (20.7 lbs) | |
